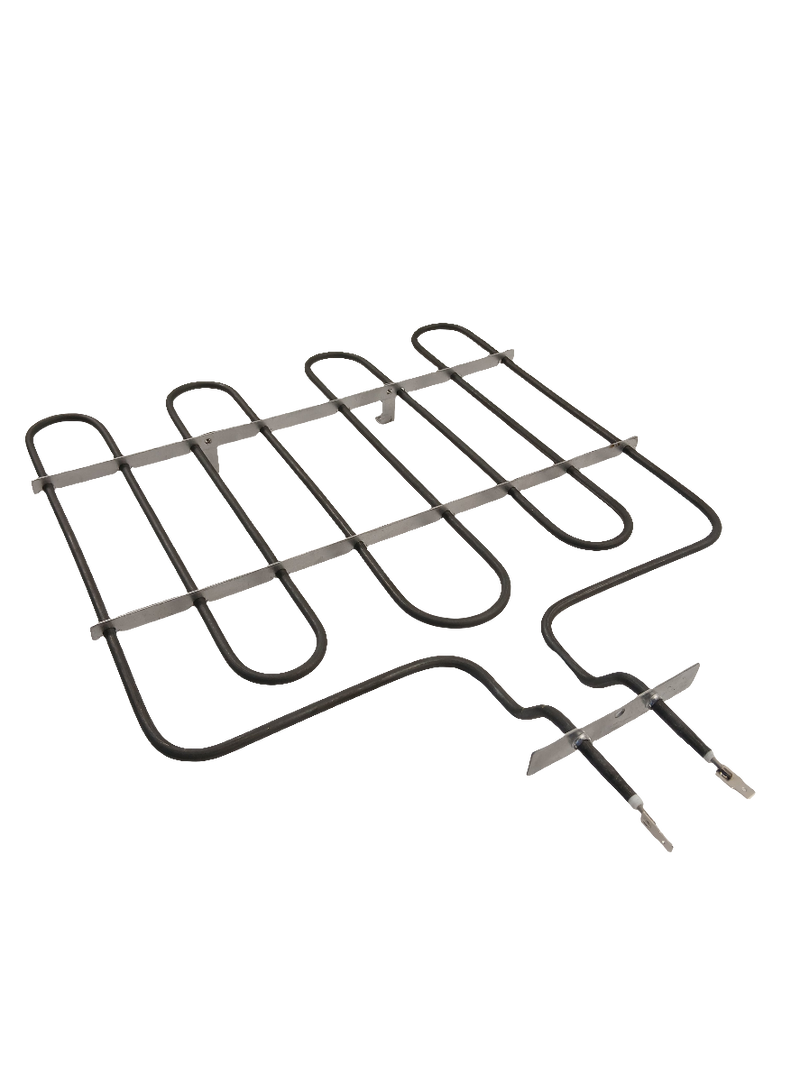

W11238400 Oven Broil Element (Broil Heating Element, Upper Element, Top Element)

W11238400 Oven Broil Element (Broil Heating Element, Upper Element, Top Element)

$135.50 $102.11
OEM & PREMIUM XPART OPTIONS AVAILABLE

Your Whirlpool Oven Won't Heat on Bake, Preheats Slowly, or Bakes Unevenly — W10779716 Bake Element

Part # W10779716 Replaces W10289097 · W10774342 Fits Whirlpool · KitchenAid · Maytag · Jenn-Air

W10779716 Whirlpool Range Oven Bake Element — Oven Won't Heat on Bake, Slow Preheat, or Uneven Baking

The bake element is the lower heating coil that provides the primary heat for baking and roasting. In most Whirlpool, KitchenAid, Maytag, and Jenn-Air electric ranges, a failed bake element causes the oven to stop heating on bake while broil still works, preheat times to double or triple, and uneven results with raw bottoms and over-browned tops. ⚡ This is a beginner-level DIY repair — 15–25 minutes, no special tools. Part W10779716 is the current OEM replacement, superseding W10289097 and W10774342, available in genuine OEM and premium XPart aftermarket options.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

  • ✔ Your oven is an electric range or wall oven (not gas)
  • ✔ Your model number appears in the compatible models list in the tags
  • ✔ Broil still works normally — only bake has no heat
  • ✔ The oven runs (fan, lights, display) but produces no heat on bake
  • ✔ ONLY problem is no heat / slow preheat / uneven baking — not a control board or sensor fault

🔧 Common Symptoms

  • Oven won't heat when set to bake — broil still works normally
  • Oven takes much longer than usual to preheat
  • Bakes unevenly — top browns but bottom stays raw
  • Oven doesn't reach the set temperature
  • Visible sparking, arcing, or burning smell from the lower element
  • Circuit breaker trips when bake is selected
  • Visible burn spot, blister, or hole in the lower element coil
  • Oven runs fan and lights but produces no heat

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this bake element restores normal oven operation immediately.

📦 Part Details

  • Part Number: W10779716
  • Type: Lower Oven Bake Element / Heating Coil
  • Replaces: W10289097, W10774342 (no modification required)
  • XPart Cross-Reference: CH9716, W10779716XP
  • Brands: Whirlpool, KitchenAid, Maytag, Amana, Jenn-Air, Roper, Kenmore
  • Wattage: 3,600W @ 240V
  • Options: OEM New · XPart New · Used

⚙️ Installation Notes

Skill Level: Easy — 15–25 minutes. Always disconnect power at the circuit breaker before beginning. Remove oven racks for clear access to the oven floor. Remove the two mounting screws at the rear of the oven floor, pull the element forward, and disconnect the two wire terminals — note terminal orientation before disconnecting and reconnect in the same position. Restore power and test: element should glow red within 60–90 seconds on bake setting.

🔗 Model Hub Pages

Whirlpool YMER8700DH1, Whirlpool YMER8700DH0, Whirlpool YMER8700DE1, Whirlpool YMER8700DE0, Whirlpool YMER8700DB1, Whirlpool YWEE730H0DS1, Whirlpool YWEE730H0DS0, Whirlpool YWEE730H0DB0, Whirlpool YMIR8890AS0, Whirlpool YMES8880DS0, Whirlpool WFE540H0ES2

💡 Pro Tip

Test the Element with a Multimeter Before Ordering:
A healthy bake element reads 15–30 ohms resistance. An open circuit (infinite/OL reading) confirms the element has burned through — even if there's no visible damage. This 30-second test saves you from replacing the element when the real issue is the control board or temperature sensor. If the element tests good but the oven still won't heat on bake, check the oven temperature sensor (usually a thin probe at the back of the oven cavity) next.

W10779716 – Whirlpool Range Oven Bake Element Parts Diagram

✅Compatibility & Cross Reference

Item #14 in diagram.

Part number W10779716 replaces W10289097, W10774342

66495123610, 66495123612, 664C95123610, 664C95123611, 66542783710, IEL730CS0, IEL730CS1, IEL730CS2, JDS1450CDP0, JDS1450CDP1, JDS1450CDS0, JDS1450CDS1, JDS1450CFP0, JDS1450CFS0, JDS1450DP0, JDS1450DP1, JDS1450DS0, JDS1450DS1, JDS1450FP0, JDS1450FS0, JDS1750CEP0, JDS1750CES0, JDS1750EB0, JDS1750EB1, JDS1750EP0, JDS1750EP1, JDS1750ES0, JDS1750ES1, JDS1750FB0, JDS1750FP0, JDS1750FS0, JES1450CDB0, JES1450CDB1, JES1450CDS0, JES1450CDS1, JES1450CFB0, JES1450CFB1, JES1450CFS0, JES1450CFS1, JES1450CFS2, JES1450DB0, JES1450DS0, JES1450DS1, JES1450FB1, JES1450FS0, JES1450FS1, JES1450FS2, JES1750CEB0, JES1750CES0, JES1750EB0, JES1750EB1, JES1750ES0, JES1750ES1, JES1750FB0, JES1750FB1, JES1750FS0, JES1750FS1, JIS1450CDP0, JIS1450CDS0, JIS1450DP0, JIS1450DP1, JIS1450DP2, JIS1450DS0, JIS1450DS1, JIS1450DS2, KERS202BBL0, KERS202BSS0, KERS202BSS1, KERS202BWH0, KERS303BBL0, KERS303BBL1, KERS303BSS0, KERS303BSS1, KERS303BWH0, KERS303BWH1, KERS306BSS0, KERS306BSS1, KFEG500EBL0, KFEG500EBL2, KFEG500EBL3, KFEG500EBS1, KFEG500EBS2, KFEG500EBS3, KFEG500ESS0, KFEG500ESS1, KFEG500ESS2, KFEG500ESS3, KFEG500EWH0, KFEG500EWH2, KFEG500EWH3, KFEG504KPS0, KFES530ESS0, KFES530ESS1, KFES530ESS2, KIRS608BSS0, KIRS608BSS1, KSDB900ESS0, KSDB900ESS1, KSDB900ESS2, KSDB900ESS3, KSDB900ESS4, KSDG950ESS0, KSDG950ESS1, KSDG950ESS2, KSEB900EBL0, KSEB900ESS0, KSEB900ESS1, KSEB900ESS2, KSEB900ESS3, KSEB900EWH0, KSEG700EBL0, KSEG700EBL1, KSEG700EBS0, KSEG700EBS1, KSEG700EBS2, KSEG700EBS3, KSEG700ESS0, KSEG700ESS1, KSEG700ESS2, KSEG700ESS3, KSEG700EWH0, KSEG700EWH1, KSEG950ESS0, KSEG950ESS1, KSEG950ESS2, KSIB900ESS0, KSIB900ESS1, KSIB900ESS2, MER8600DE0, MER8600DH0, MER8600DS0, MER8650ES0, MER8650FZ0, MER8650FZ1, MER8670AB0, MER8670AS0, MER8670AW0, MER8674AB0, MER8674AS0, MER8674AW0, MER8680BB0, MER8680BS0, MER8680BW0, MER8700DB0, MER8700DB1, MER8700DE0, MER8700DE1, MER8700DH0, MER8700DH1, MER8700DS0, MER8700DS1, MER8700DS2, MER8700DW0, MER8700DW1, MER8775AB0, MER8775AS0, MER8775AW0, MER8800DE0, MER8800DE1, MER8800DH0, MER8800DH1, MER8800DS0, MER8800DS1, MER8800FB0, MER8800FB1, MER8800FW0, MER8800FW1, MER8800FZ0, MER8800FZ1, MER8800FZ2, MER8800HK0, MER8850DS0, MER8850DS1, MER8880AB0, MER8880AS0, MER8880AW0, MES8800FZ0, MES8800FZ1, MES8800FZ2, MES8880DE0, MES8880DH0, MES8880DS0, MIR8890AS0, WEC530H0DB0, WEC530H0DS0, WEC530H0DW0, WEE730H0DB0, WEE730H0DS0, WEE730H0DW0, WEE745H0FE0, WEE745H0FE1, WEE745H0FE2, WEE745H0FH0, WEE745H0FH1, WEE745H0FH2, WEE745H0FS0, WEE745H0FS1, WEE745H0FS2, WEE750H0HB0, WEE750H0HB1, WEE750H0HV0, WEE750H0HV1, WEE750H0HW0, WEE750H0HW1, WEE750H0HZ0, WEE750H0HZ1, WEE760H0DE0, WEE760H0DH0, WEE760H0DS0, WEEA25H0HN0, WEEA25H0HN1, WEEA25H0HZ0, WEEA25H0HZ1, WFE540H0AB0, WFE540H0AB1, WFE540H0AE0, WFE540H0AE1, WFE540H0AH0, WFE540H0AH1, WFE540H0AS0, WFE540H0AS1, WFE540H0AW0, WFE540H0AW1, WFE540H0EB0, WFE540H0EB1, WFE540H0EE0, WFE540H0EE1, WFE540H0EH0, WFE540H0EH1, WFE540H0ES0, WFE540H0ES1, WFE540H0ES2, WFE540H0EW0, WFE540H0EW1, WFE710H0AE0, WFE710H0AE1, WFE710H0AH0, WFE710H0AH1, WFE710H0AS0, WFE710H0AS1, WFE714HLAS0, WFE714HLAS1, WFE715H0EE0, WFE715H0EH0, WFE715H0ES0, WFE720H0AS0, WFE720H0AS1, WFE745H0FE0, WFE745H0FE1, WFE745H0FH0, WFE745H0FH1, WFE745H0FS0, WFE745H0FS1, WFE745H0FS2, WFE770H0FZ0, WFE770H0FZ1, WFE770H0FZ2, WFE775H0HB0, WFE775H0HB1, WFE775H0HV0, WFE775H0HV1, WFE775H0HW0, WFE775H0HW1, WFE775H0HZ0, WFE775H0HZ1, WFE975H0HV0, WFE975H0HV1, WFE975H0HZ0, WFE975H0HZ1, WFI910H0AS0, WFI910H0AS1, YIEL730CS0, YIEL730CS1, YIEL730CS2, YKERS202BSS0, YKERS202BSS1, YKERS202BWH0, YKERS202BWH1, YKERS303BBL0, YKERS303BBL1, YKERS303BSS0, YKERS303BSS1, YKERS303BWH0, YKERS303BWH1, YKERS306BSS0, YKERS306BSS1, YKFEG500EBL0, YKFEG500EBL2, YKFEG500EBS1, YKFEG500EBS2, YKFEG500EBS3, YKFEG500EBS4, YKFEG500ESS0, YKFEG500ESS1, YKFEG500ESS2, YKFEG500ESS3, YKFEG500ESS4, YKFEG500EWH0, YKFEG500EWH2, YKFEG500EWH3, YKFEG500EWH4, YKFEG510ESS0, YKFEG510ESS1, YKFEG510ESS2, YKFEG510ESS3, YKFES530ESS0, YKFES530ESS1, YKFES530ESS2, YKIRS608BSS0, YKIRS608BSS1, YKSDB900ESS0, YKSDB900ESS1, YKSDB900ESS2, YKSDB900ESS3, YKSDB900ESS4, YKSDG950ESS0, YKSEB900EBL0, YKSEB900ESS0, YKSEB900ESS1, YKSEB900ESS2, YKSEB900ESS3, YKSEB900EWH0, YKSEB900EWH1, YKSEB900EWH2, YKSEB900EWH3, YKSEG700EBL0, YKSEG700EBS1, YKSEG700EBS2, YKSEG700EBS3, YKSEG700ESS0, YKSEG700ESS1, YKSEG700ESS2, YKSEG700ESS3, YKSEG700EWH0, YKSEG950ESS0, YKSIB900ESS0, YMER8600DE0, YMER8600DH0, YMER8600DS0, YMER8650FZ0, YMER8650FZ1, YMER8670AB0, YMER8670AS0, YMER8670AW0, YMER8700DB0, YMER8700DB1, YMER8700DE0, YMER8700DE1, YMER8700DH0, YMER8700DH1, YMER8700DS0, YMER8700DS1, YMER8700DW0, YMER8700DW1, YMER8775AS0, YMER8775BS0, YMER8800DE0, YMER8800DE1, YMER8800DH0, YMER8800DH1, YMER8800DS0, YMER8800DS1, YMER8800FB0, YMER8800FB1, YMER8800FW0, YMER8800FW1, YMER8800FW2, YMER8800FW3, YMER8800FZ0, YMER8800FZ1, YMER8800FZ2, YMER8800HK0, YMER8850DS0, YMER8850DS1, YMER8880AB0, YMER8880AS0, YMER8880AW0, YMER8880BB0, YMER8880BS0, YMER8880BW0, YMES8800FZ0, YMES8800FZ1, YMES8800FZ2, YMES8880DE0, YMES8880DH0, YMES8880DS0, YMIR8890AS0, YWEE730H0DB0, YWEE730H0DS0, YWEE730H0DS1, YWEE730H0DW0, YWEE730H0DW1, YWEE745H0FE0, YWEE745H0FE1, YWEE745H0FH0, YWEE745H0FH1, YWEE745H0FS0, YWEE745H0FS1, YWEE745H0FS2, YWEE750H0HB0, YWEE750H0HB1, YWEE750H0HV0, YWEE750H0HV1, YWEE750H0HW0, YWEE750H0HW1, YWEE750H0HZ0, YWEE750H0HZ1, YWEE760H0DE0, YWEE760H0DH0, YWEE760H0DS0, YWEEA25H0HN0, YWEEA25H0HN1, YWEEA25H0HZ0, YWEEA25H0HZ1, YWFE540H0AB0, YWFE540H0AS0, YWFE540H0AW0, YWFE540H0BB0, YWFE540H0BB1, YWFE540H0BS0, YWFE540H0BS1, YWFE540H0BW0, YWFE540H0BW1, YWFE540H0EB0, YWFE540H0EE0, YWFE540H0EH0, YWFE540H0ES0, YWFE540H0ES1, YWFE540H0EW0, YWFE710H0AB0, YWFE710H0AS0, YWFE710H0AW0, YWFE710H0BB0, YWFE710H0BB1, YWFE710H0BE1, YWFE710H0BH0, YWFE710H0BH1, YWFE710H0BS0, YWFE710H0BS1, YWFE710H0BW0, YWFE710H0BW1, YWFE710H0DE0, YWFE710H0DH0, YWFE710H0DS0, YWFE715H0EE0, YWFE715H0EH0, YWFE715H0ES0, YWFE745H0FE0, YWFE745H0FE1, YWFE745H0FH0, YWFE745H0FH1, YWFE745H0FH2, YWFE745H0FS0, YWFE745H0FS1, YWFE745H0FS2, YWFE770H0FZ0, YWFE775H0HB0, YWFE775H0HB1, YWFE775H0HV0, YWFE775H0HV1, YWFE775H0HW0, YWFE775H0HW1, YWFE775H0HZ0, YWFE775H0HZ1, YWFE975H0HV0, YWFE975H0HV1, YWFE975H0HZ0, YWFE975H0HZ1, YWFI910H0AS0, YWFI910H0AS1

Bake Element, Oven Bake Element, Lower Heating Element, Baking Element

Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Kenmore (verify by model)

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
