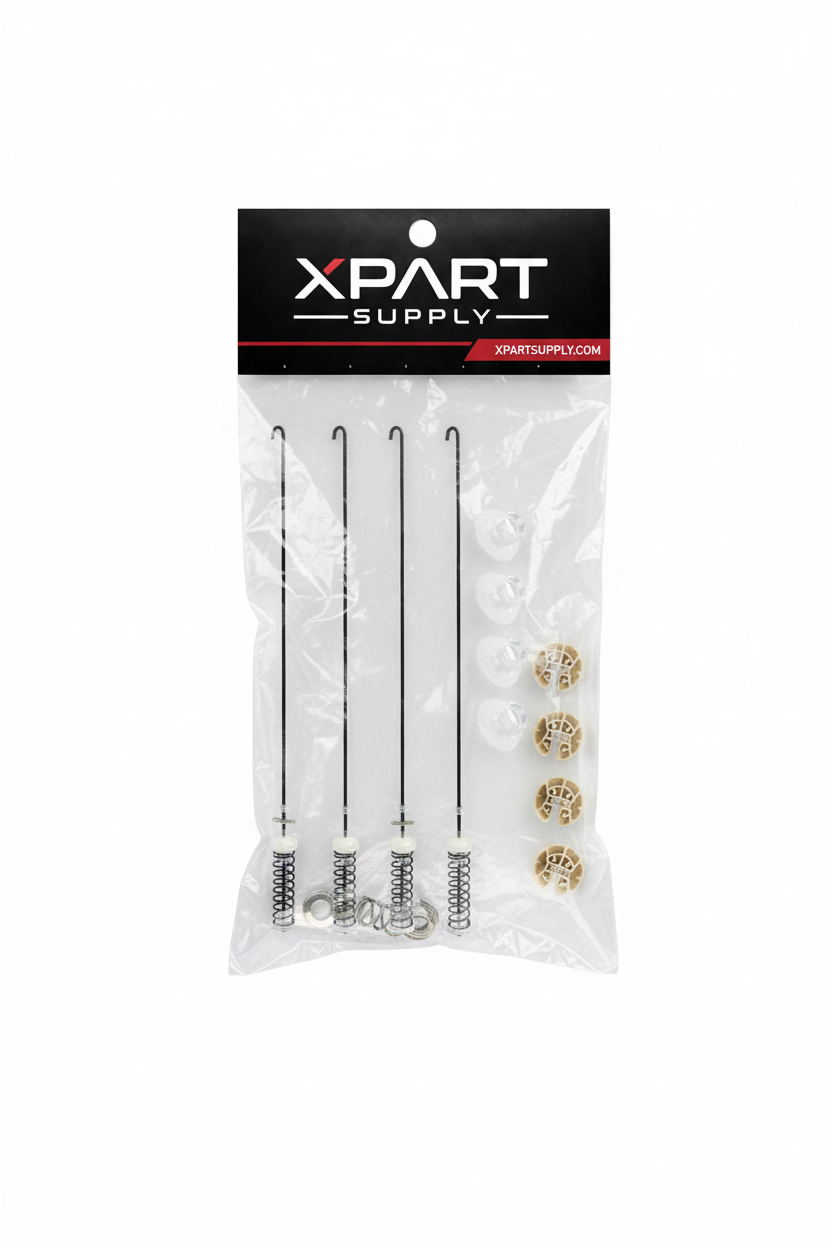

W10780048 Whirlpool Top Load Washer Suspension Rod Kit – Retail Bag Mockup | XPart Supply Canada

W10780048 Whirlpool Top Load Washer Suspension Rod Kit – Sales Image | XPart Supply Canada

Schematic diagram of Whirlpool washer parts on a white background

Whirlpool Top Load Washer Suspension Rod Kit W10780048, Replaces W10257087, W10257088, W10349191, W10349193, W10748952, W10821948, WPW10780048

Price: $110

Buying Options: OEM

XPart

$99.99

OEM

$110.00

Product variant with selected options does not exist!

Frequently Bought Together

Excessive Shaking or Washer Walking — Suspension Rod Kit

Whirlpool Top Load Washer Suspension Rod Kit W10780048, Fixes Excessive Shaking or Washer Walking

🇺🇸 Matching U.S. Part Number: W10780048

Part W10780048 Replaces W10257087, W10257088, W10349191, W10349193, W10748952, W10821948, WPW10780048 OEM Whirlpool — XPart/Choice Available

The Whirlpool W10780048 Suspension Rod Kit is a complete OEM four-rod suspension kit that supports the washer tub and helps dampen tub movement during agitation and spin. It replaces W10257087, W10257088, W10349191, W10349193, W10748952, W10821948, WPW10780048 when fitment is confirmed by the appliance model number.

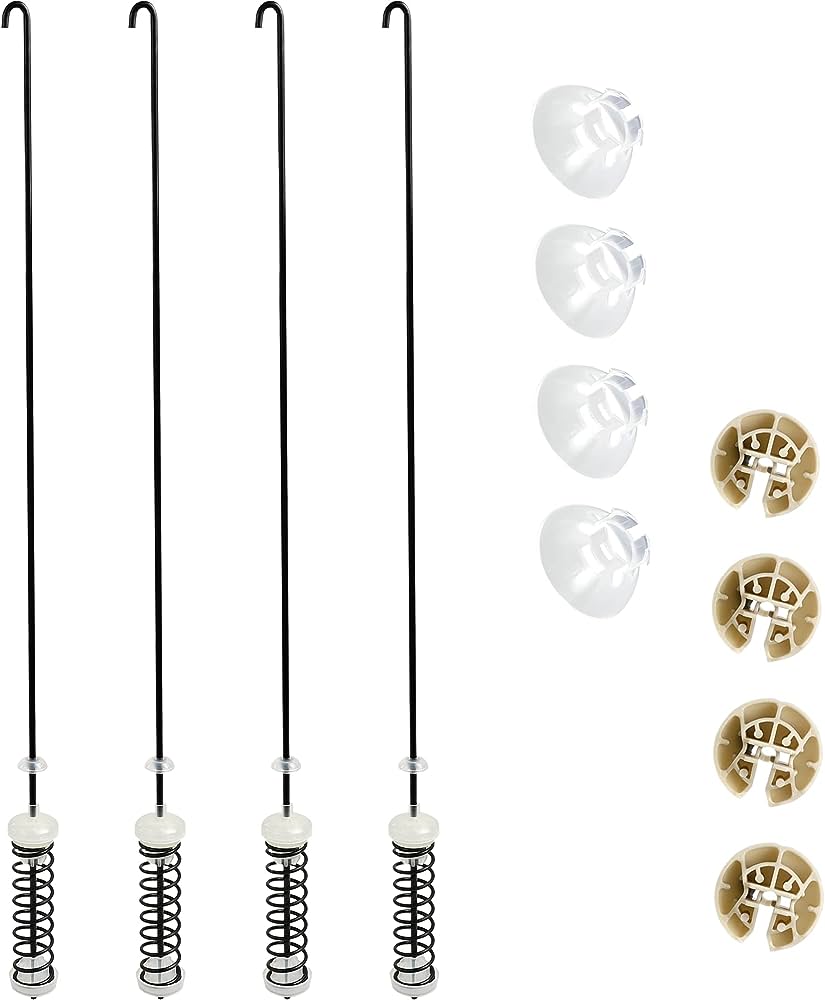

Available as genuine Whirlpool OEM or XPart / Choice aftermarket depending on the selected variant. Kit includes 4 suspension rods, 4 suspension balls, and 4 bushings.

Is This the Right Part?

Part NumberW10780048

ReplacesW10257087, W10257088, W10349191, W10349193, W10748952, W10821948, WPW10780048

ManufacturerWhirlpool Corporation (OEM) / Choice Manufactured Parts (XPart)

Appliance TypeTop-Load Washer

Confirm the complete model number before ordering. Similar suspension kits may use different rod lengths, ball diameters, or mounting configurations that are not interchangeable.

Common Symptoms

Excessive shaking or vibration during agitation or spin
Washer walking or moving across the floor during operation
Loud banging or thumping during spin cycle
Repeated unbalanced-load errors stopping the cycle mid-spin

Check Before Replacing

Verify the washer is level — improperly adjusted leveling feet cause vibration and walking that mimics suspension failure
Confirm loads are not consistently overloaded or unevenly distributed before condemning the suspension rods
Inspect the floor surface — an uneven or flexible floor amplifies tub movement regardless of suspension condition
Check suspension rod mounting points on the tub and cabinet for damage or looseness before ordering

Pro Tip: Improper leveling and uneven loads produce identical symptoms to worn suspension rods. Confirm the washer is level and test with a balanced load before ordering this kit. While the cabinet is open, inspect the tub bearing for roughness or play — a worn bearing accelerates suspension wear and is more cost-effective to address at the same time.

Part Details

Part TypeSuspension Rod Kit (4-Pack)

Kit Contents4 suspension rods, 4 suspension balls, 4 bushings/ball cups

Key FeatureComplete matched set — OEM and XPart/Choice options available

ConditionOEM Genuine (OEM variant) / XPart — Choice Manufactured Parts (XPart variant)

Installation Notes

Disconnect electrical power and shut off the water supply before servicing.
Follow the service procedure for the exact washer model — cabinet access differs among models.
Photograph all rod mounting positions before removal.
W10780048 is supplied as a complete four-rod kit — install the complete matched set according to the model-specific service procedure.
Restore power and run a full spin cycle to confirm smooth operation.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

11020022010–11020022014, 11021102010–11021102013, 11021112010–11021112011, 11021182010–11021182013, 11021202010–11021202011, 11021252110–11021252111, 11021292010–11021292013, 11021302010–11021302012, 11021352110–11021352111, 11021392010–11021392012, 11026002010–11026002011, 11026012010–11026012011, 11028002010–11028002011, 11028012010–11028012011, 1105072011–1105072012, 1105142512, 1CWTW4740YQ0–1CWTW4840YW2, 2DWTW4740YQ0–2DWTW5500XW0, 3DWTW4740YQ0–3SWTW4800YQ1, 4GATW4900YW0–4KWTW4830EQ0, 6AWTW5550XW0–6AWTW5700XW0, 7EWTW1300YM0–7MWTW9919DM2, ATW4675YQ0–ATW4675YQ1, CAW9244BW0–CAW9444XQ4, ITW4600YQ0–ITW4700YQ1, MVWC200XW0–MVWX700XW1, NTW4501XQ0–NTW4700YQ1, RTW4640YQ0–RTW4740YQ0, WTW4700YQ0–WTW8600YW0

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering. Fits select Whirlpool-manufactured Whirlpool, Maytag, Amana, Kenmore, Admiral, Crosley, and Inglis top-load washers.

Model-Specific Repair Pages

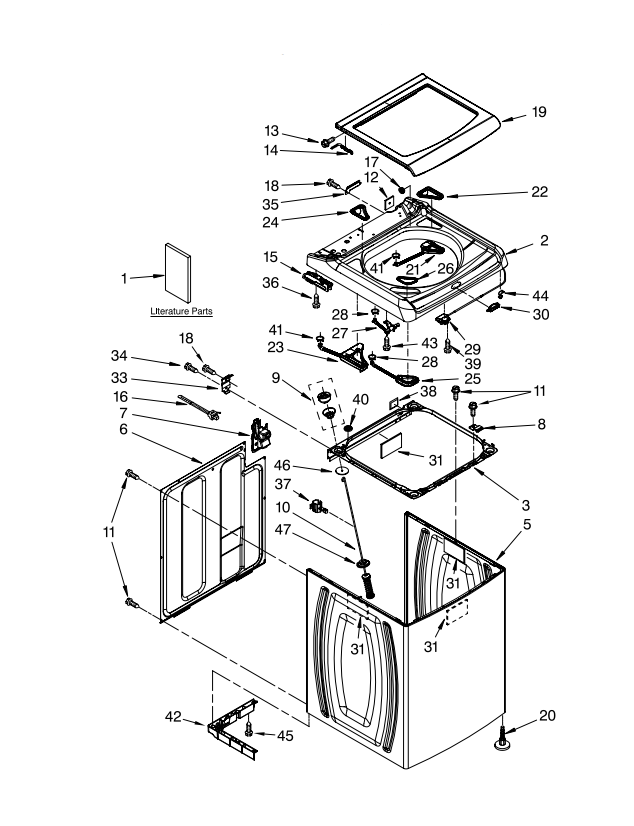

W10780048 – Whirlpool Top-Load Washer Suspension & Tub Parts Diagram

✅Compatibility & Cross Reference

Item #46 in diagram.

Part number W10780048 replaces W10257087, W10257088, W10349191, W10349193, W10748952, W10821948, WPW10780048

11020022010, 11020022011, 11020022012, 11020022013, 11020022014, 11021102010, 11021102011, 11021102012, 11021102013, 11021112010, 11021112011, 11021182010, 11021182011, 11021182012, 11021182013, 11021202010, 11021202011, 11021252110, 11021252111, 11021292010, 11021292011, 11021292012, 11021292013, 11021302010, 11021302011, 11021302012, 11021352110, 11021352111, 11021392010, 11021392011, 11021392012, 11026002010, 11026002011, 11026012010, 11026012011, 11028002010, 11028002011, 11028012010, 11028012011, 1105072011, 1105072012, 1105142512, 1CWTW4740YQ0, 1CWTW4740YQ1, 1CWTW4740YQ2, 1CWTW4800YQ1, 1CWTW4800YQ2, 1CWTW4840YW0, 1CWTW4840YW1, 1CWTW4840YW2, 2DWTW4740YQ0, 2DWTW4740YQ1, 2DWTW4800YQ0, 2DWTW4800YQ1, 2DWTW4840YW0, 2DWTW5500XW0, 3DWTW4740YQ0, 3DWTW4740YQ1, 3DWTW4840YW0, 3DWTW4840YW1, 3LMVWC100YW0, 3LMVWC100YW1, 3LWTW4740YQ0, 3LWTW4740YQ1, 3LWTW4800YQ0, 3LWTW4800YQ1, 3LWTW4840YW0, 3LWTW4840YW1, 3LWTW5550YW0, 3NWTW4800AQ0, 3SWTW4800YQ0, 3SWTW4800YQ1, 4GATW4900YW0, 4GATW4900YW1, 4GATW4900YW2, 4GMVWC100YQ0, 4GMVWC100YQ1, 4GMVWC300YW0, 4GMVWC300YW1, 4GMVWC300YW2, 4GMVWX500YW0, 4GNTW4400YQ0, 4GNTW4400YQ1, 4GNTW4400YQ2, 4GNTW4600YQ0, 4GNTW4600YQ1, 4GNTW4600YQ2, 4GWTW4740YQ0, 4GWTW4740YQ1, 4GWTW4740YQ2, 4GWTW4740YQ3, 4GWTW4800YQ0, 4GWTW4800YQ1, 4GWTW4800YQ2, 4GWTW4800YQ3, 4KATW4830EW0, 4KMVWC100BQ0, 4KMVWC130EQ0, 4KMVWC230EW0, 4KMVWC300BW0, 4KNTW4430EQ0, 4KNTW4530EQ0, 4KWTW4730EQ0, 4KWTW4830EQ0, 6AWTW5550XW0, 6AWTW5700XW0, 7EWTW1300YM0, 7EWTW1409YM0, 7EWTW1509YM0, 7EWTW1515YW0, 7EWTW1711YM0, 7EWTW1715YW0, 7MKTWS300DW0, 7MMHW7000BG0, 7MMHW7000YG0, 7MMVWC100DW0, 7MMVWC100DW1, 7MMVWC100DW2, 7MMVWC200DW0, 7MMVWC200DW1, 7MMVWC200DW2, 7MMVWC200YW0, 7MMVWC210YW0, 7MMVWC300YW0, 7MMVWC300YW1, 7MMVWC310YW0, 7MMVWC400YW0, 7MMVWC400YW1, 7MMVWX500YW0, 7MMVWX500YW1, 7MMVWX510YW0, 7MMVWX550YW0, 7MMVWX700XL0, 7MMVWX700XL1, 7MWTW1500AQ0, 7MWTW1501AW0, 7MWTW1501AW1, 7MWTW1501AW2, 7MWTW1502AW0, 7MWTW1502AW1, 7MWTW1502AW2, 7MWTW1502BM0, 7MWTW1502BM1, 7MWTW1503AW0, 7MWTW1503AW1, 7MWTW1504DQ0, 7MWTW1504DQ1, 7MWTW1601BQ0, 7MWTW1602AW0, 7MWTW1602AW1, 7MWTW1602AW2, 7MWTW1602BM0, 7MWTW1602BM1, 7MWTW1603AW0, 7MWTW1603AW1, 7MWTW1603AW2, 7MWTW1604AW0, 7MWTW1604AW1, 7MWTW1604DM0, 7MWTW1604DM1, 7MWTW1604DM2, 7MWTW1605AW0, 7MWTW1605AW1, 7MWTW1606AW0, 7MWTW1606AW1, 7MWTW1606AW2, 7MWTW1607AW0, 7MWTW1607AW1, 7MWTW1700AQ0, 7MWTW1700BQ0, 7MWTW1701DQ0, 7MWTW1701DQ1, 7MWTW1702BQ0, 7MWTW1703BM0, 7MWTW1704BM0, 7MWTW1704BM1, 7MWTW1705BQ0, 7MWTW1706BM0, 7MWTW1706YM0, 7MWTW1709DM0, 7MWTW1709DM1, 7MWTW1709YM0, 7MWTW1709YM1, 7MWTW1710YM0, 7MWTW1710YM1, 7MWTW1711YM0, 7MWTW1712AM0, 7MWTW1715BM0, 7MWTW1715BM1, 7MWTW1750YW0, 7MWTW1750YW1, 7MWTW1799BQ0, 7MWTW1800DM0, 7MWTW1800DM1, 7MWTW1801BQ0, 7MWTW1801BQ1, 7MWTW1805DM0, 7MWTW1805DM1, 7MWTW1899BQ0, 7MWTW1950YW0, 7MWTW1950YW1, 7MWTW1955YW0, 7MWTW1955YW1, 7MWTW5500XW0, 7MWTW5500XW1, 7MWTW5550YW0, 7MWTW5550YW1, 7MWTW5560YW0, 7MWTW5700YW0, 7MWTW5700YW1, 7MWTW9919DM0, 7MWTW9919DM1, 7MWTW9919DM2, ATW4675YQ0, ATW4675YQ1, CAW12444XW0, CAW12444XW1, CAW9244BW0, CAW9244XQ0, CAW9244XQ1, CAW9244XQ2, CAW9244XQ4, CAW9444BW0, CAW9444XQ0, CAW9444XQ1, CAW9444XQ2, CAW9444XQ4, ITW4600YQ0, ITW4600YQ1, ITW4700YQ0, ITW4700YQ1, MVWC200XW0, MVWC200XW1, MVWC200XW2, MVWC200XW3, MVWC300XW0, MVWC300XW1, MVWC400XW0, MVWC400XW1, MVWC400XW2, MVWC400XW3, MVWC450XW0, MVWC450XW1, MVWC450XW2, MVWC450XW3, MVWX500XL0, MVWX500XL1, MVWX500XW0, MVWX500XW1, MVWX550XW0, MVWX550XW1, MVWX600XL0, MVWX600XL1, MVWX600XW0, MVWX600XW1, MVWX700XL0, MVWX700XL1, MVWX700XW0, MVWX700XW1, NTW4501XQ0, NTW4600YQ0, NTW4600YQ1, NTW4601XQ0, NTW4610YQ0, NTW4630YQ0, NTW4650YQ0, NTW4700YQ0, NTW4700YQ1, RTW4640YQ0, RTW4640YQ1, RTW4740YQ0, WTW4700YQ0, WTW4750YQ0, WTW4750YQ1, WTW4800XQ0, WTW4800XQ1, WTW4800XQ2, WTW4800XQ4, WTW4820XQ0, WTW4850XQ0, WTW4850XQ1, WTW4910XQ0, WTW4910XQ1, WTW4910XQ3, WTW4930XW0, WTW4930XW1, WTW4930XW3, WTW4950XW0, WTW4950XW1, WTW4950XW2, WTW5500XL0, WTW5500XL1, WTW5500XL2, WTW5500XW0, WTW5500XW1, WTW5500XW2, WTW5550XW0, WTW5550XW1, WTW5550XW2, WTW5600XW0, WTW5600XW1, WTW5600XW2, WTW5610XW0, WTW5610XW1, WTW5610XW2, WTW5640XW0, WTW5640XW1, WTW5640XW2, WTW5700XL0, WTW5700XL1, WTW5700XL2, WTW5700XW0, WTW5700XW1, WTW5700XW2, WTW8200YW0, WTW8240YW0, WTW8600YW0

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
