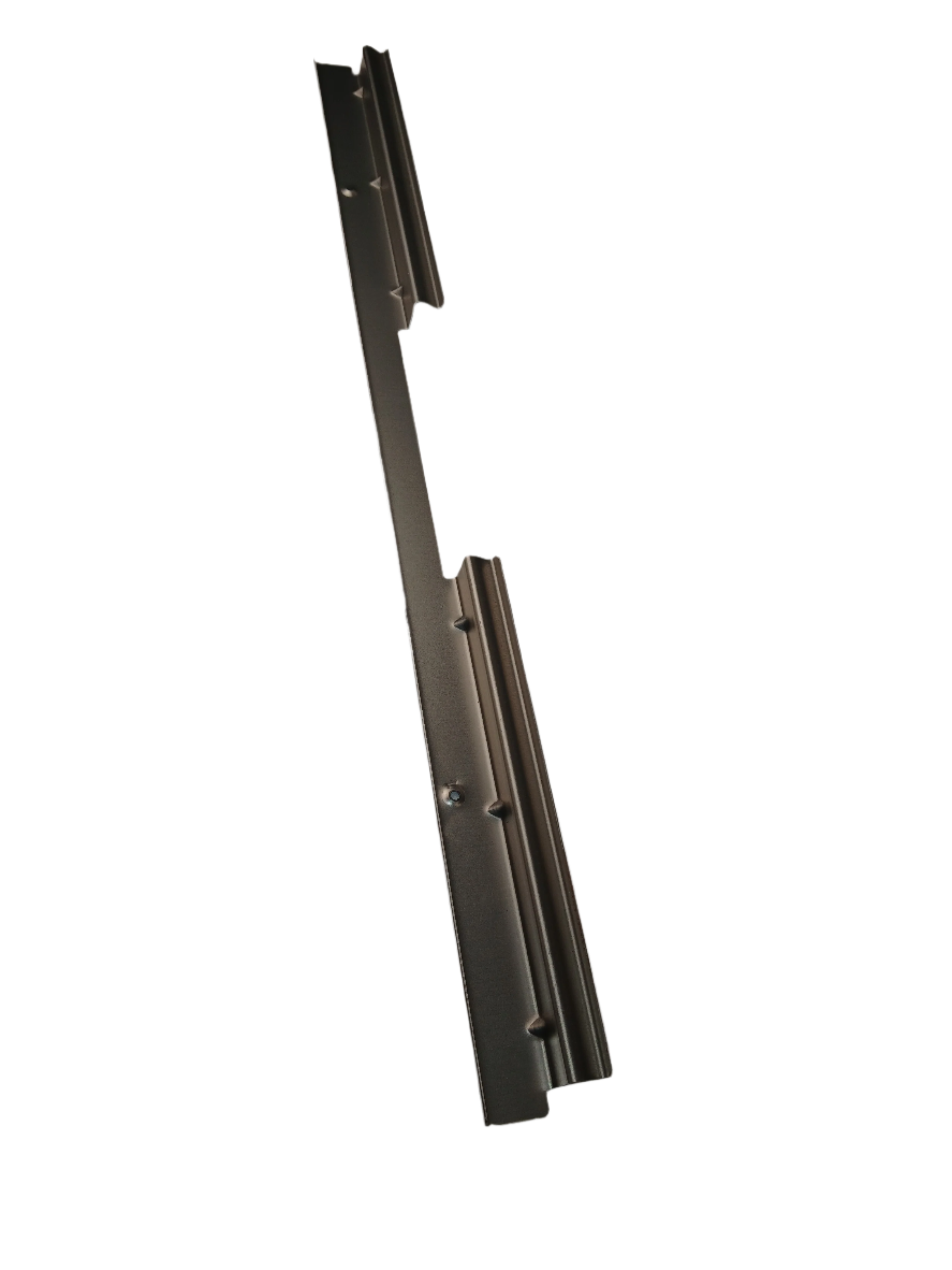

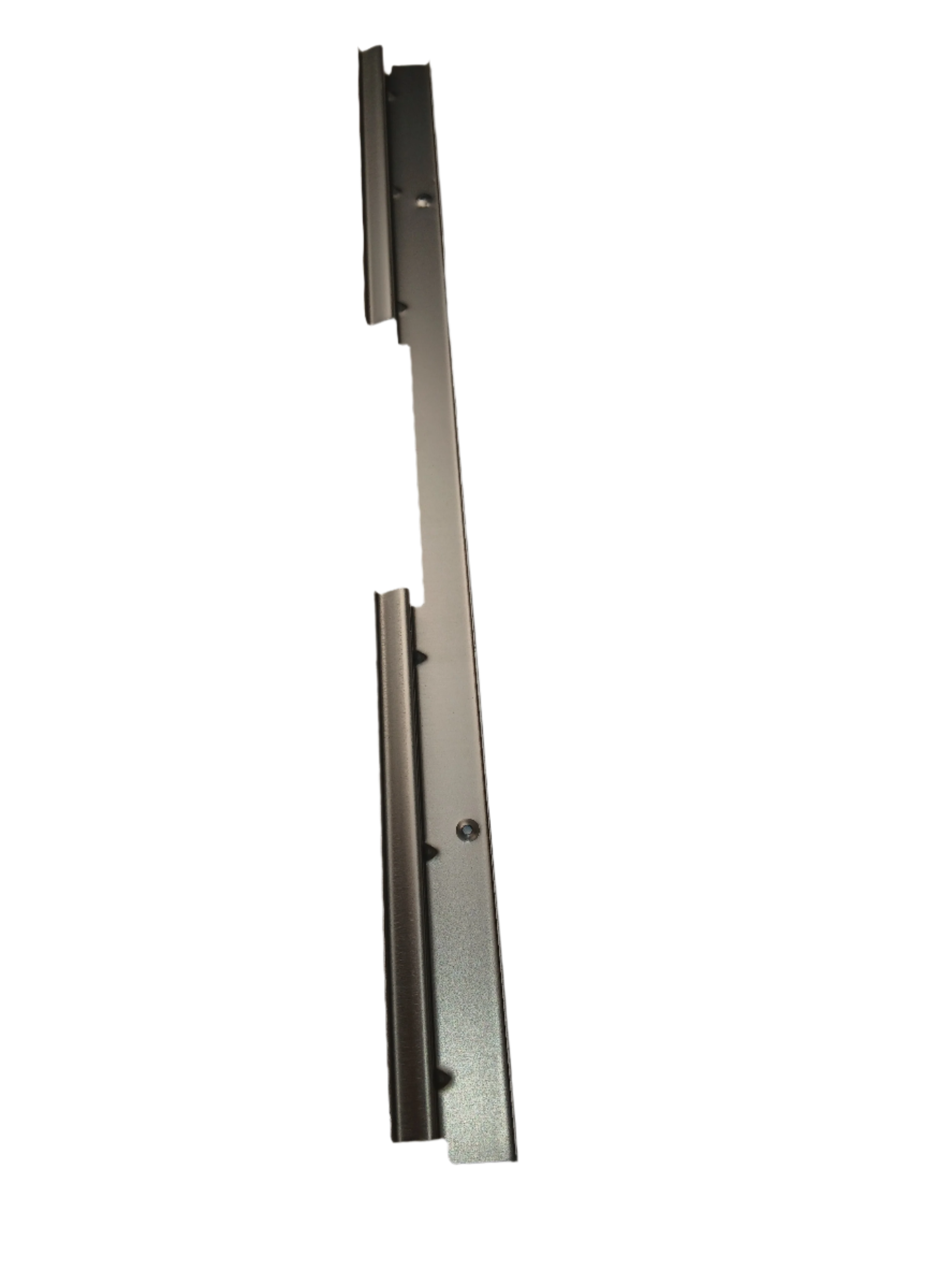

Whirlpool Range Rail, Horizontal Support (also listed as Brkt-glass / Glass Bracket) W10813140

OEM horizontal support rail used in the oven door glass assembly of select Whirlpool-family ranges. Retailer catalogs may describe it as a glass bracket or oven door glass support bracket.

Is This the Right Part?

Common Symptoms

• Oven-door glass rattles or shifts
• Inner glass panel has poor support or alignment
• Oven door fit is affected when the rail is cracked, broken, or missing

Check Before Replacing

• With the range disconnected from power and fully cool, visually inspect the oven-door glass and horizontal support rail for cracks, displacement, or missing support.
• Gently check for abnormal glass movement without forcing or flexing the door assembly.
• Compare the door components with the appliance’s model-specific parts diagram to confirm that W10813140 is the installed horizontal support rail.
• If glass is cracked, loose, or under tension, stop inspection and refer the repair to a qualified appliance technician.

Pro Tip

Part Details

Key Features

• Whirlpool OEM component
• Also cataloged as BRKT-GLASS or Glass Bracket
• Listed in Whirlpool range door parts documentation as Rail, Horizontal Support
• Used in the oven-door glass assembly of select Whirlpool-family ranges

Installation Notes

• Disconnect electrical power and allow the range and oven door to cool before inspection or service.
• Use the model-specific Whirlpool repair-parts list to confirm the rail’s position and related door components before disassembly.
• Handle the oven-door glass carefully; do not force, bend, drill, glue, or modify the rail or glass.
• If the door glass is cracked, loose, or difficult to remove safely, use a qualified appliance technician.

Verified Compatible Models

JDS1450CDP1, JDS1450CDS1, JDS1450CFP0, JDS1450CFS0, JDS1450DP1, JDS1450DS1, JDS1450FP0, JDS1450FS0, JES1450FS2, JES1750EB1, JES1750ES1, JES1750FB0, JES1750FB1, JES1750FS0, JES1750FS1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
