Whirlpool Range Knob Bezel Kit (Set of 5) W10814133

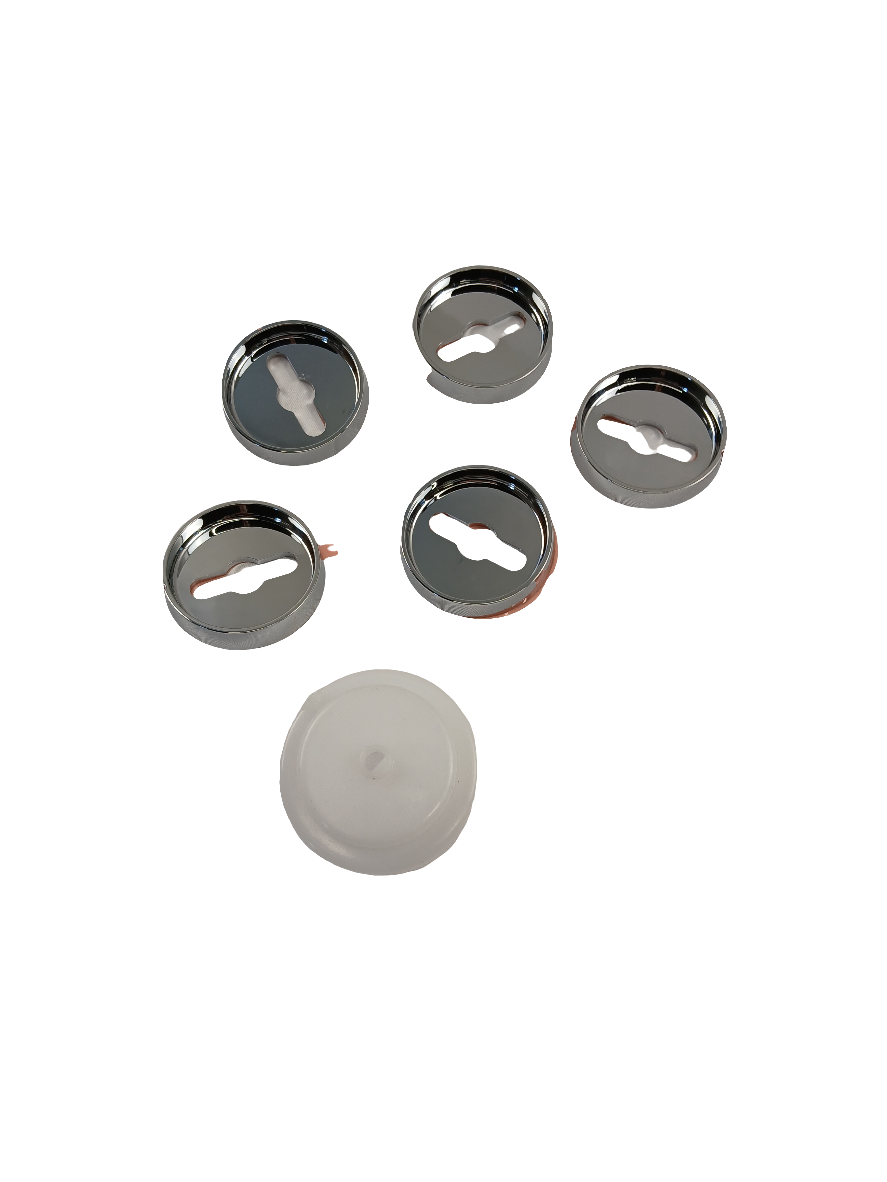

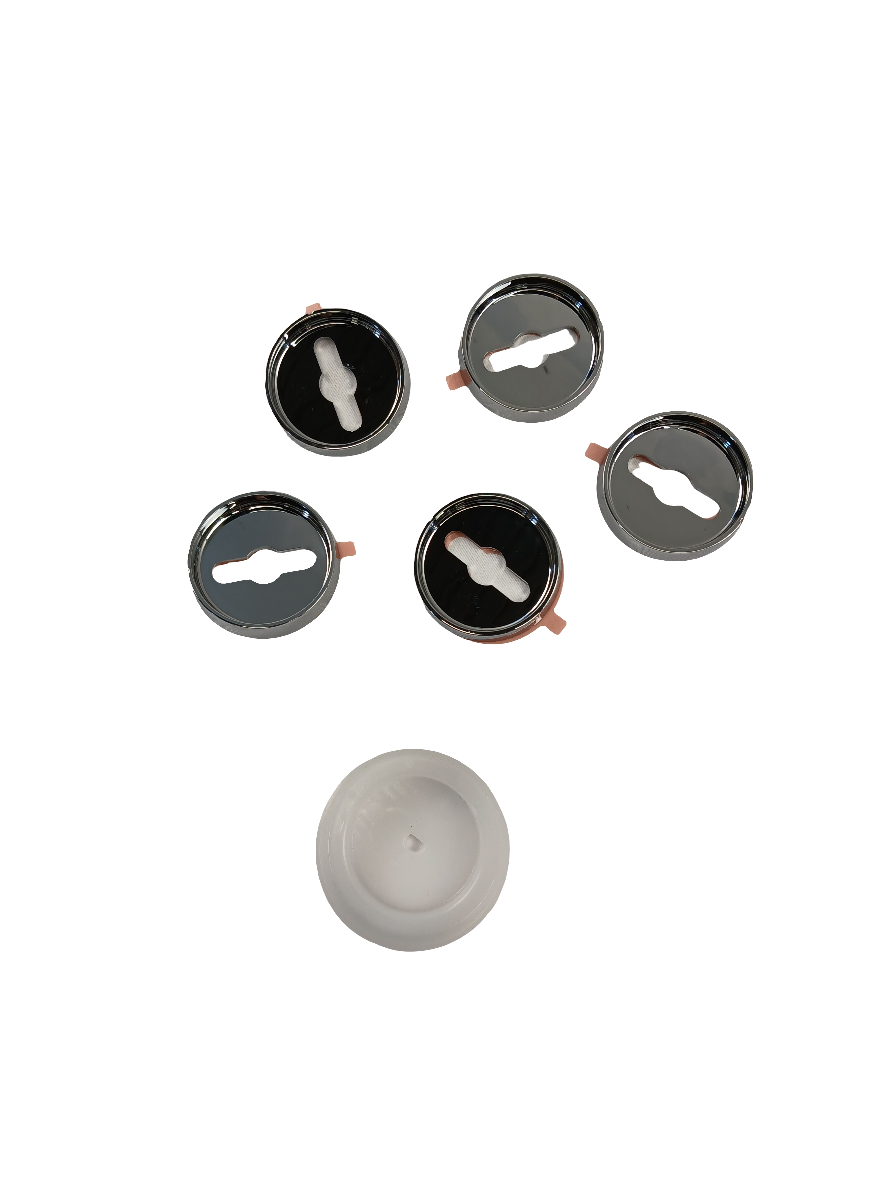

Stainless-steel range surface-burner knob bezel kit containing five bezels. The bezels attach behind the control knobs and help hold them securely to the control shafts.

Is This the Right Part?

Common Symptoms

• Knob bezel is cracked, warped, loose, or discolored.
• Surface-burner knob wobbles or does not sit evenly against the control panel.
• Knob alignment markings do not correspond correctly with the burner settings.
• Knob movement feels obstructed or sticks after bezel replacement or displacement.

Check Before Replacing

• With the range cool, visually inspect each bezel for cracks, warping, discoloration, or separation from the control panel.
• With the appliance controls off, pull the affected knob straight off and check whether the bezel is loose, damaged, or misaligned behind it.
• Confirm that the knob seats fully on the control shaft and that the bezel is centered around the shaft without rubbing the knob.
• If the knob sticks, stop using that control and check bezel alignment; do not force the knob or alter the control shaft.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM part W10814133.
• Knob bezel kit containing five stainless-steel bezels.
• Designed for select Whirlpool and KitchenAid ranges.
• Bezels mount behind the surface-burner control knobs.
• Replacement kit supersedes several earlier bezel part numbers in the trusted archive.

Installation Notes

• Allow the range and bezels to cool before starting.
• Pull the burner control knob straight off the control shaft to access the bezel.
• Remove the existing bezel using the model-specific attachment method; do not assume screws or adhesive unless confirmed for the appliance model.
• Clean residue from the panel as appropriate, then align the replacement bezel over the valve stem and secure it according to the supplied instructions.
• Reinstall the knob fully and verify that it turns freely and does not stick before returning the control to normal use.

Verified Compatible Models

KFDD500ESS00, KFDD500ESS01, KFDD500ESS02, KFGD500EBL00, KFGD500EBL01, KFGD500EBL02, KFGD500ESS00, KFGD500ESS01, KFGD500ESS02, KFGD500ESS03, KFGD500ESS04, KFGD500EWH00, KSDB900ESS1, KSDG950ESS1, KSGG700ESS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
