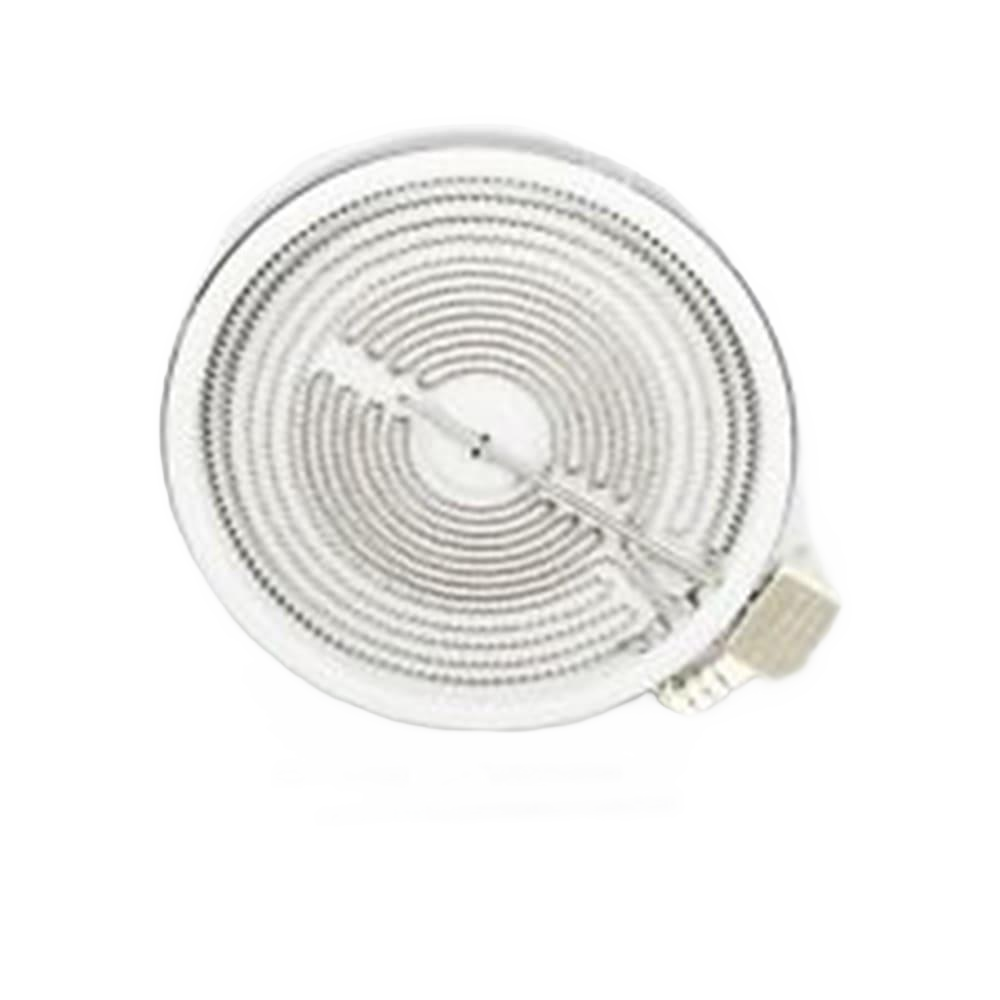

Whirlpool Range Dual radiant surface element W10823692, Replaces 3191723, 4453909, 74008897, 74011551, 7406P403-60, 7406P431-60, 8272563, 8523693, 9756697, 9759351, WP4453909, WP74011551

Dual stove-top radiant surface element rated at 1200/2500 watts; approximately 10 inches in diameter. The element provides adjustable heat to a cooking area on an electric range or cooktop.

Is This the Right Part?

Common Symptoms

• The surface element does not heat at either setting.
• Only one of the dual heating zones heats.
• Heating is uneven or weaker than expected.
• The element heats intermittently or fails to reach the selected setting.

Check Before Replacing

• Disconnect electrical power at the range or cooktop circuit breaker before inspection.
• Visually inspect the accessible element area for cracking, scorching, discoloration, or damaged terminals; do not touch energized components.
• With power disconnected, verify that the element wiring and terminals are securely connected and free of visible damage.
• If qualified to use a multimeter, test the element for continuity only with power disconnected and according to the appliance service documentation.
• If the element tests normally, the surface-element control switch or associated wiring may also require professional diagnosis.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM dual radiant surface element.
• Selectable 1200-watt and 2500-watt heating zones.
• Approximately 10 inches in diameter.
• Installed beneath the glass cooktop surface.
• Designed to heat the cooking area directly above the element.

Installation Notes

• Disconnect the range or cooktop from electrical power at the circuit breaker before beginning work.
• Access the element from beneath the cooktop and avoid damaging the glass surface, wiring, or controls.
• Record or photograph wire-terminal positions before disconnecting the old element.
• Reconnect wiring to the corresponding terminals and secure the element as specified for the appliance.
• Reassemble the cooktop before restoring power; test both heat settings only after the assembly is complete.
• Use the appliance-specific service or installation documentation because access and mounting details vary by model.

Verified Compatible Models

GJC3654RB01, GJD3044RP00, GJD3044RP02, GR450LXHB1, KECC502GBL2, KECC502GBL4, KECC502GBL05, KECC508GWH0, KECC567GWH2, KECC567KBT03, KECC567KWW0, KECC568GBT1, KECC568GWH1, YGY397LXUQ0, YGY397LXUS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
