Whirlpool Range Range Surface Element Switch W10857622, Replaces W10437092 Right Front OEM Replacement
If a burner on your Whirlpool, Maytag, KitchenAid, or Jenn-Air electric range won’t heat, is stuck on high, or heats erratically, the infinite surface element switch is the most likely cause. In Whirlpool-built electric ranges, the infinite switch controls burner power by cycling the element on and off through a bimetallic strip — when the contacts pit from arcing, the strip fails, or terminals corrode, the burner stops responding correctly. ⚡ Common failure point in Whirlpool-built ranges and cooktops after years of high-current cycling. Part W10857622 is the OEM dual infinite switch that directly supersedes W10437092 and restores full burner control immediately.

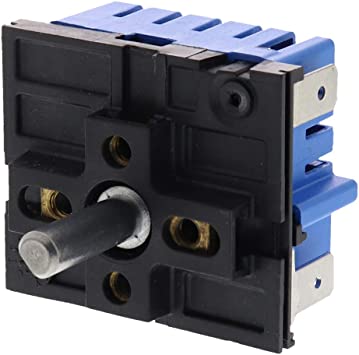

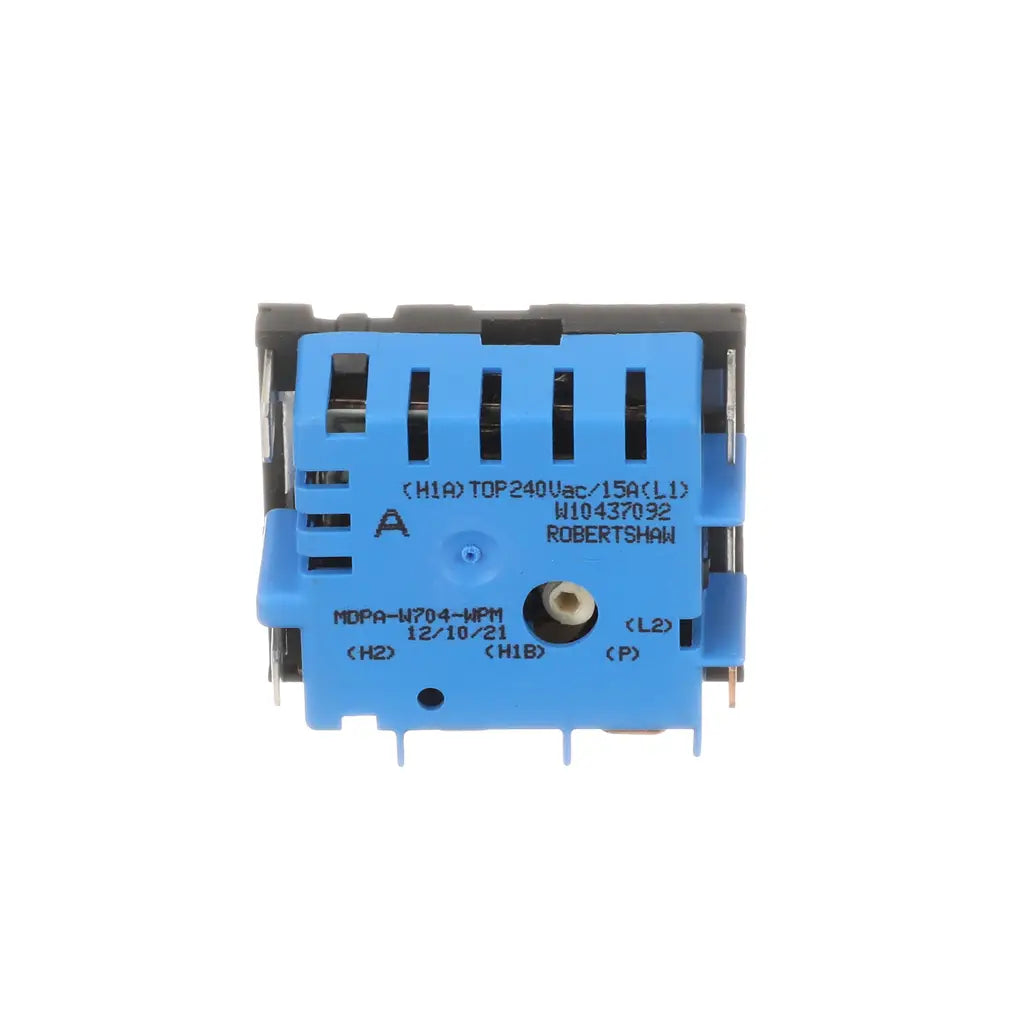

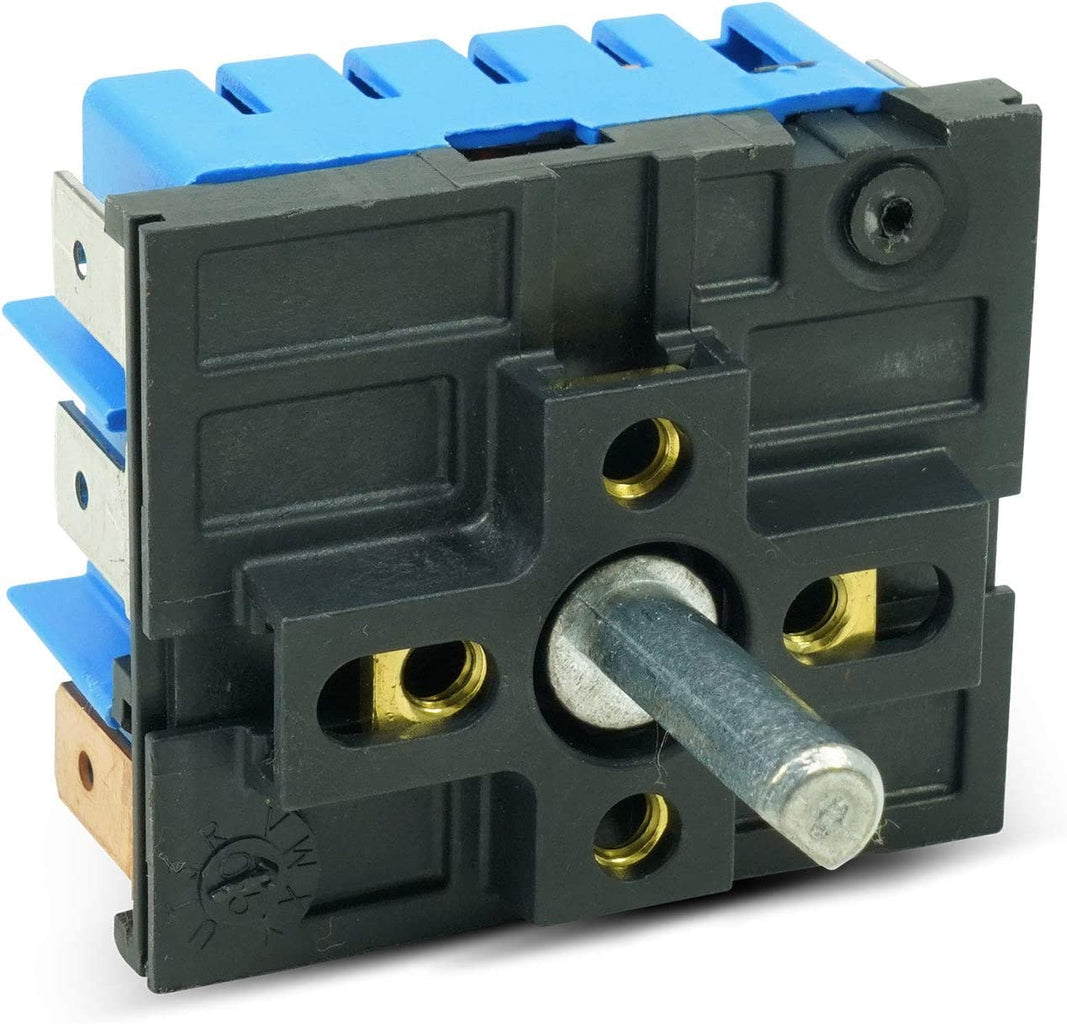

Whirlpool Range Range Surface Element Switch W10857622
Is This the Right Part?
Confirm the complete model number before ordering. Similar parts may use different connectors, dimensions, hose positions, electrical ratings, or mounting points.
- ✔ Range powers on and other burners work normally
- ✔ The surface element has been tested and is not open or broken
- ✔ The element receptacle and wiring terminals are intact
- ✔ The control knob engages the switch shaft correctly
- ✔ ONLY problem is one or both burners on this switch not heating, stuck on high, or heating erratically
- Surface burner not heating at all — element stays cold at any setting
- Burner stuck on high and won’t reduce heat or turn off
- Burner heating erratically — cycling too fast or inconsistently
- Burner only works at certain knob positions
- Burning smell from the control panel area
- One of two burners controlled by the switch not responding
- Control knob turns freely but burner doesn’t change heat level
- Part Number: W10857622
- Type: Dual Infinite Rotary Surface Element Switch — controls two burners independently, 15A / 240V
- Replaces: OEM direct-fit infinite switch — supersedes W10437092 (no modification required)
- Brands: Whirlpool, Maytag, KitchenAid, Jenn-Air
- Options: OEM New, OEM Used (tested pull), and XPart premium aftermarket — select variant above. XPart parts are not affiliated with or endorsed by Whirlpool.
A broken element coil is just as common as a failed switch and costs significantly less to replace. Set a multimeter to resistance mode and test across the element terminals — a good element reads 10–50 ohms; an open circuit (OL) means the element is broken, not the switch. This 5-minute test prevents ordering the wrong part and saves a return trip.
Part Details
Use a qualified technician when diagnosis or installation is outside your experience. Gas parts should be installed by a licensed technician.
Verified Compatible Models
66495113610, 66495113611, 66495113612, 664C95113610, IES790GS0, JEC3430HB00, JEC3430HS00, JEC3536HB00, JEC3536HS00, JED3430GB00, JED3430GB01, JED3430GS00, JED3430GS01, KCED600GBL00, KCED600GBL01, KCED600GSS00, KCED600GSS01, KCED606GBL00, KCED606GBL01, KCED606GSS00, KCED606GSS01, KCES550HBL00, KCES550HSS00, KFEG500EWH3, KFEG504KPS0, KSEG950ESS0, KSEG950ESS1, KSEG950ESS2, MEC8830HB00, MEC8830HS00, MEC8836HS00, MER8650FZ0, MER8650FZ1, MER8800FB0, MER8800FB1, MER8800FW0, MER8800FW1, MER8800FZ0, MER8800FZ1, MER8800FZ2, MER8800FZ3, MER8800FZ5, MER8800HK0, MES8800FZ0, MES8800FZ1, MES8800FZ2, MES8880DE0, MES8880DH0, MES8880DS0, WCE55US0HB00, WCE55US0HB01, WCE55US0HS00, WCE55US0HS01, WCE55US0HW00, WCE55US0HW01, WCE55US4HB00, WCE55US6HB00, WCE77US0HB00, WCE77US0HB01, WCE77US0HS00, WCE77US0HS01, WCE77US0HW00, WCE77US0HW01, WCE77US6HB00, WCE77US6HS00, WEE730H0DB0, WEE730H0DS0, WEE730H0DW0, WEE745H0FE0, WEE745H0FE1, WEE745H0FE2, WEE745H0FH0, WEE745H0FH1, WEE745H0FH2, WEE745H0FS0, WEE745H0FS1, WEE745H0FS2, WEE750H0HB0, WEE750H0HB1, WEE750H0HV0, WEE750H0HV1, WEE750H0HW0, WEE750H0HW1, WEE750H0HZ0, WEE750H0HZ1, WEE760H0DE0, WEE760H0DH0, WEE760H0DS0, WEEA25H0HN0, WEEA25H0HN1, WEEA25H0HZ0, WEEA25H0HZ1, WFE540H0EB0, WFE540H0EB1, WFE540H0EE0, WFE540H0EE1, WFE540H0EH0, WFE540H0EH1, WFE540H0ES0, WFE540H0ES1, WFE540H0ES2, WFE540H0EW0, WFE540H0EW1, WFE715H0EE0, WFE715H0EH0, WFE715H0ES0, WFE745H0FE0, WFE745H0FE1, WFE745H0FH0, WFE745H0FH1, WFE745H0FS0, WFE745H0FS1, WFE745H0FS2, WFE770H0FZ0, WFE770H0FZ1, WFE770H0FZ2, WFE775H0HB0, WFE775H0HB1, WFE775H0HV0, WFE775H0HV1, WFE775H0HW0, WFE775H0HW1, WFE775H0HZ0, WFE775H0HZ1, WFE975H0HV0, WFE975H0HV1, WFE975H0HZ0, WFE975H0HZ1, YAES6603SFS0, YAES6603SFS1, YAES6603SFS2, YAES6603SFS3, YAES6603SFS5, YAES6603SFW0, YAES6603SFW1, YAES6603SFW2, YAES6603SFW3, YAES6603SFW5, YIEL730CS0, YIEL730CS1, YIEL730CS2, YIES790GS0, YKFEG500EBL0, YKFEG500EBL2, YKFEG500EBS1, YKFEG500EBS2, YKFEG500EBS3, YKFEG500EBS4, YKFEG500ESS0, YKFEG500ESS1, YKFEG500ESS2, YKFEG500ESS3, YKFEG500ESS4, YKFEG500EWH0, YKFEG500EWH2, YKFEG500EWH3, YKFEG500EWH4, YKFEG510ESS0, YKFEG510ESS1, YKFEG510ESS3, YKSEG950ESS0, YMER8650FZ0, YMER8650FZ1, YMER8800FB0, YMER8800FB1, YMER8800FW0, YMER8800FW1, YMER8800FW2, YMER8800FW3, YMER8800FW4, YMER8800FW6, YMER8800FZ0, YMER8800FZ1, YMER8800FZ2, YMER8800FZ3, YMER8800FZ4, YMER8800FZ6, YMER8800HK0, YMES8800FZ0, YMES8800FZ1, YMES8800FZ2, YMES8880DE0, YMES8880DH0, YMES8880DS0, YWEE730H0DB0, YWEE730H0DS0, YWEE730H0DS1, YWEE730H0DW0, YWEE730H0DW1, YWEE745H0FE0, YWEE745H0FE1, YWEE745H0FH0, YWEE745H0FH1, YWEE745H0FS0, YWEE745H0FS1, YWEE745H0FS2, YWEE750H0HB0, YWEE750H0HB1, YWEE750H0HV0, YWEE750H0HV1
Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
