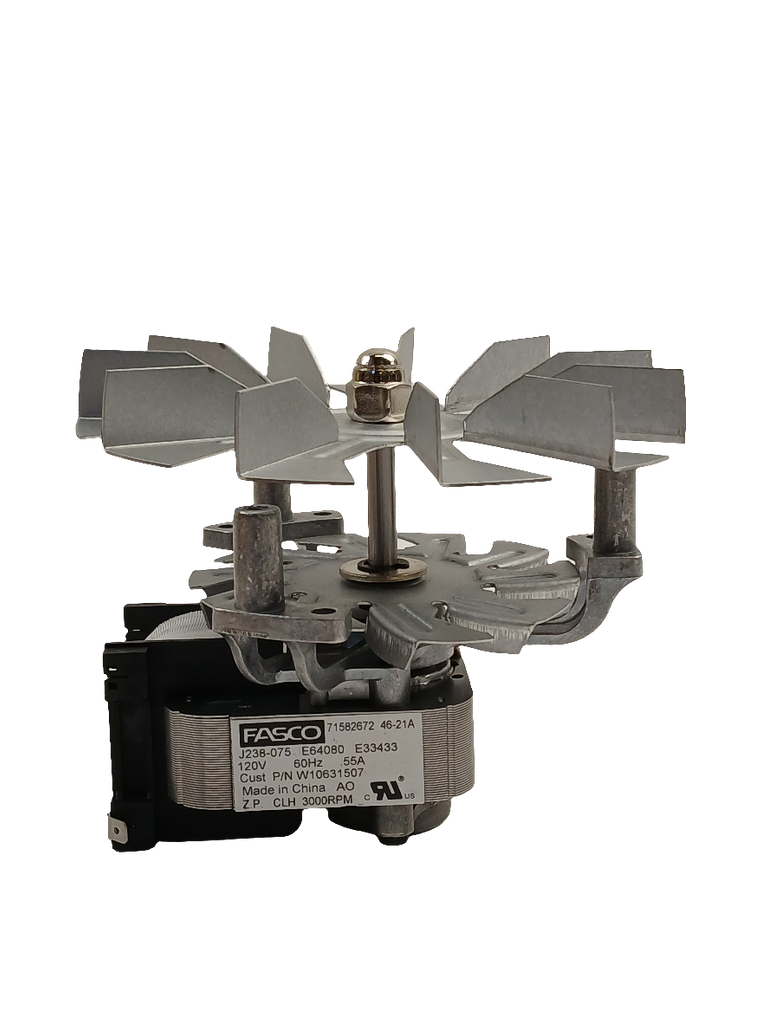

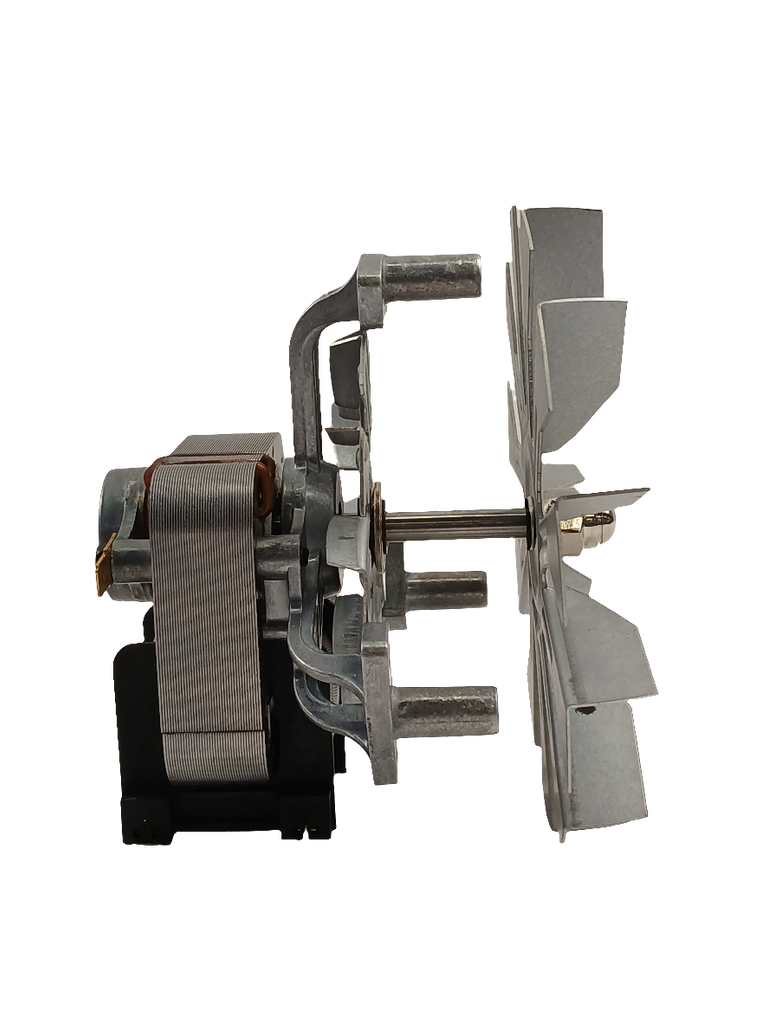

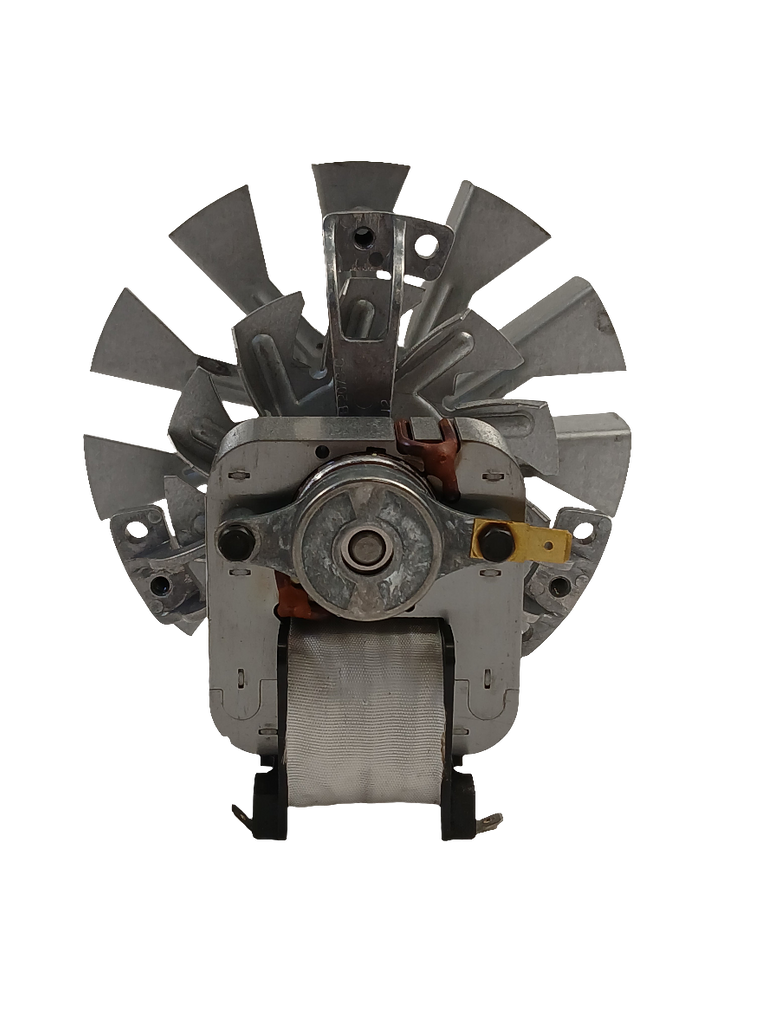

Whirlpool Range Convection fan motor with blade W10860984, Replaces W10722667

Genuine Whirlpool OEM convection fan motor and blade assembly that circulates hot air through the oven for even heating. The part is also cataloged for some wall ovens and oven/microwave combinations.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Uneven baking or roasting during convection cooking
• Loud buzzing, grinding, rattling, or squealing from the convection fan area
• Convection cooking takes longer or produces inconsistent results
• Fan blade is difficult to turn by hand when the oven is cool and electrically disconnected

Check Before Replacing

• Turn off electrical power to the range or oven and allow it to cool before inspection.
• With power disconnected, visually check the convection fan blade for obstruction, damage, looseness, or rubbing against surrounding components.
• With power disconnected, gently rotate the fan blade by hand; abnormal stiffness, binding, or grinding can indicate a motor or bearing problem, but does not by itself prove motor failure.
• If qualified to perform appliance electrical testing, check motor winding continuity only with power disconnected and using the appliance’s service documentation; do not perform live-voltage testing unless trained and authorized.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM component
• Convection fan motor supplied with blade
• Used in compatible Whirlpool-family ranges, wall ovens, and oven/microwave combinations
• Replaces previous Whirlpool part number W10722667

Installation Notes

• Disconnect electrical power and allow the oven to cool before servicing.
• Installation requires access to the convection fan assembly; follow the exact service instructions for the appliance model.
• Transfer or reconnect wiring only as shown in the model-specific service documentation.
• After installation, verify that the blade rotates freely without contacting nearby components before returning the appliance to normal use.

Verified Compatible Models

IBS550DS01, IBS550DS02, IBS550DS03, JDRP430WP01, JDRP430WP02, JDRP436WP02, JDRP436WP03, JDRP536WP02, JDRP536WP03, JDRP548WP02, JDRP548WP03, JJW2427DB00, JJW2427DB01, JJW2427DB02, JJW2427DB03

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
