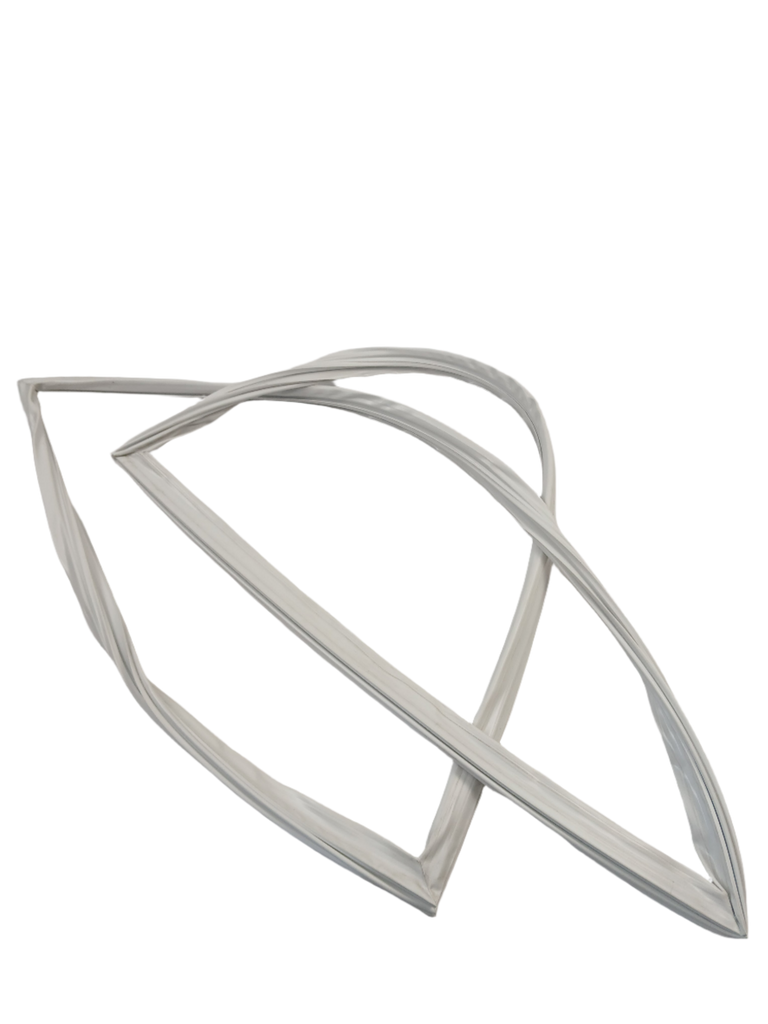

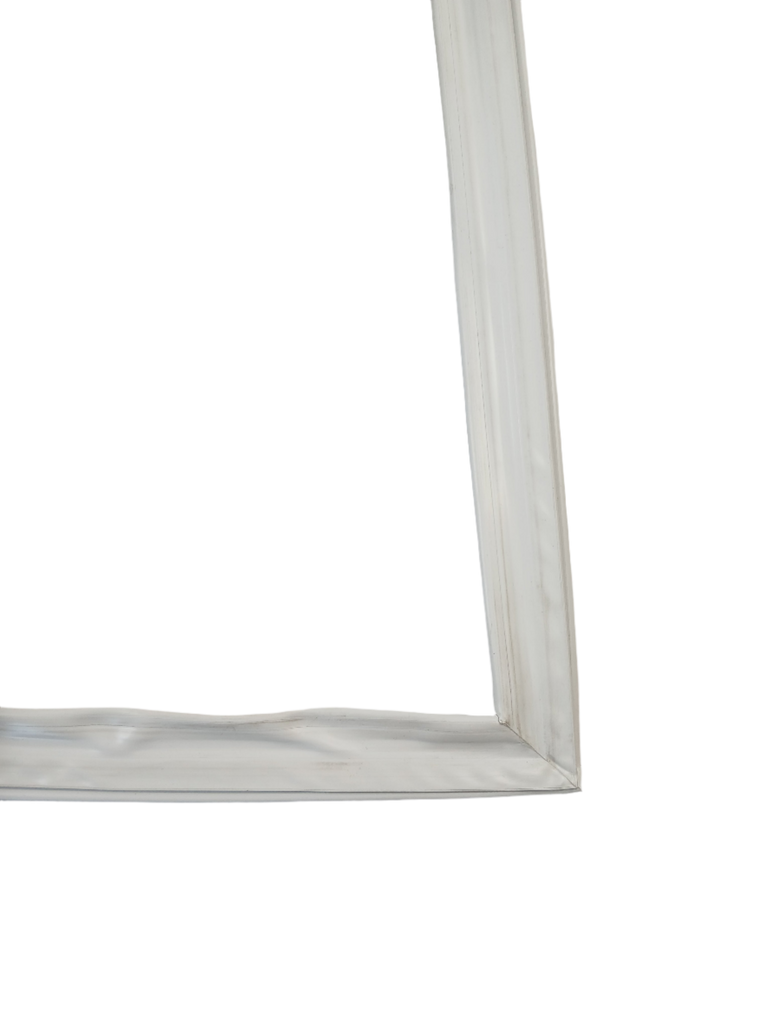

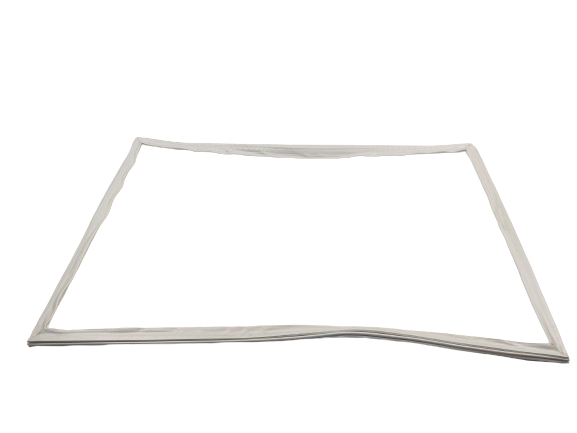

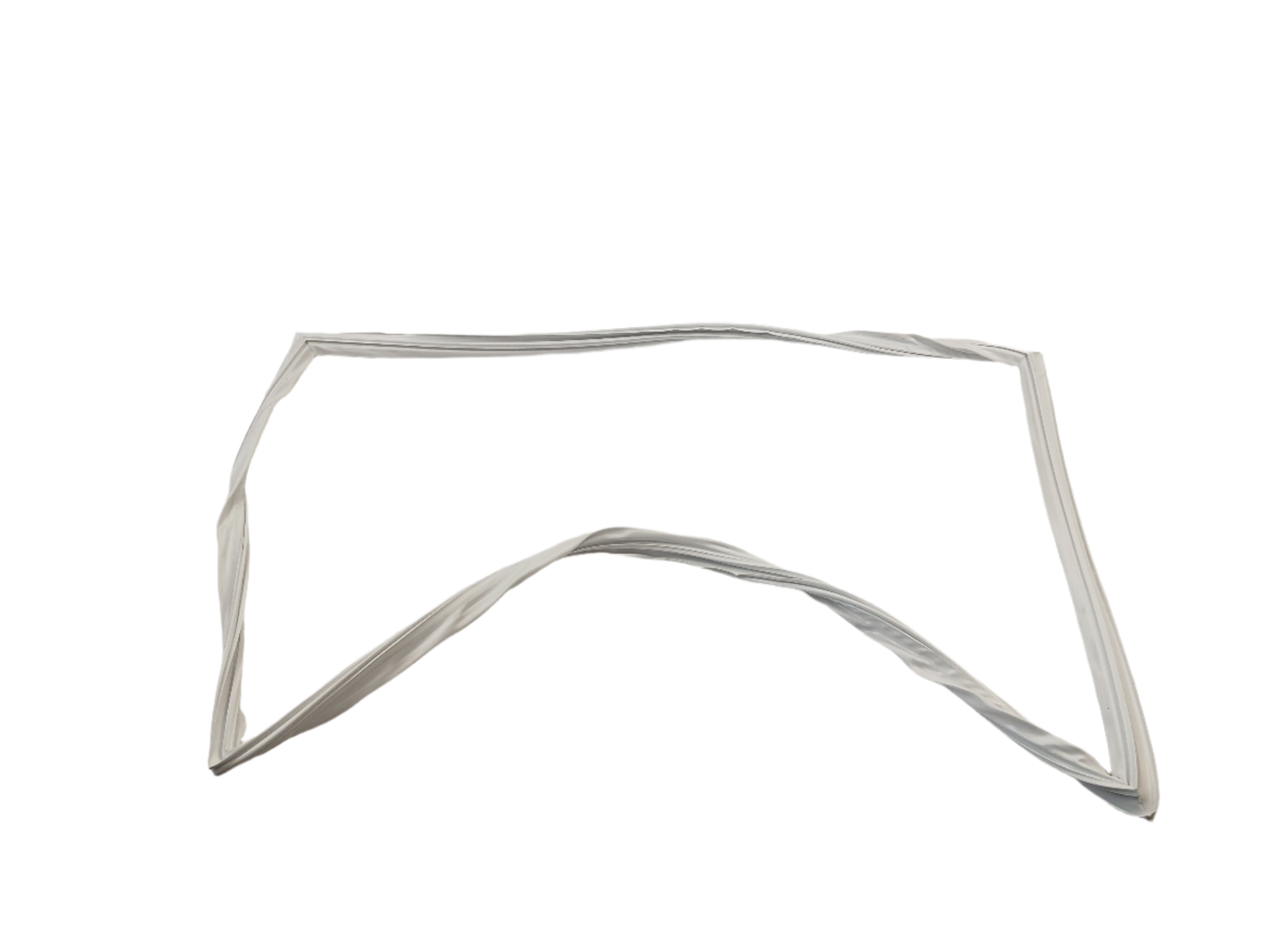

Whirlpool Refrigerator Freezer door gasket, white W10861499, Replaces W10638675, W11648072, W11720506

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible gaps, tears, wear, or deformation in the freezer-door seal.
• Frost or ice buildup inside the freezer near the door opening.
• Cold-air loss that can make the refrigerator run less efficiently.

Check Before Replacing

• With the door closed, visually inspect the full gasket perimeter for an even, continuous contact line with the cabinet.
• Check the gasket for splits, hardened areas, folds, debris, or sections pulled out of the door channel.
• Close the freezer door normally and look for visible gaps or areas where the gasket does not sit flush; also confirm the door itself is closing and aligned normally.

Pro Tip

Part Details

Installation Notes

• Verify the refrigerator model and exact part number before beginning installation.
• Before fitting, let the gasket warm slightly if needed to relax folds from packaging.
• Seat the gasket evenly in the freezer-door frame/channel, then close the door and inspect the full perimeter for an even seal.
• Do not treat a poor seal as proof that the gasket alone is defective; check for debris, gasket positioning, and normal door closure/alignment.

Verified Compatible Models

ART318FFDB03, ART318FFDW00, ART318FFDW01, ART318FFDW02, ART318FFDW03, MRT118FFFM00, MRT118FFFM01, MRT118FFFM04, WRT519SZDM00, WRT519SZDM01, WRT519SZDM02, WRT519SZDW06, WRT549SZDB01, WRT549SZDM01, WRT549SZDW01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
