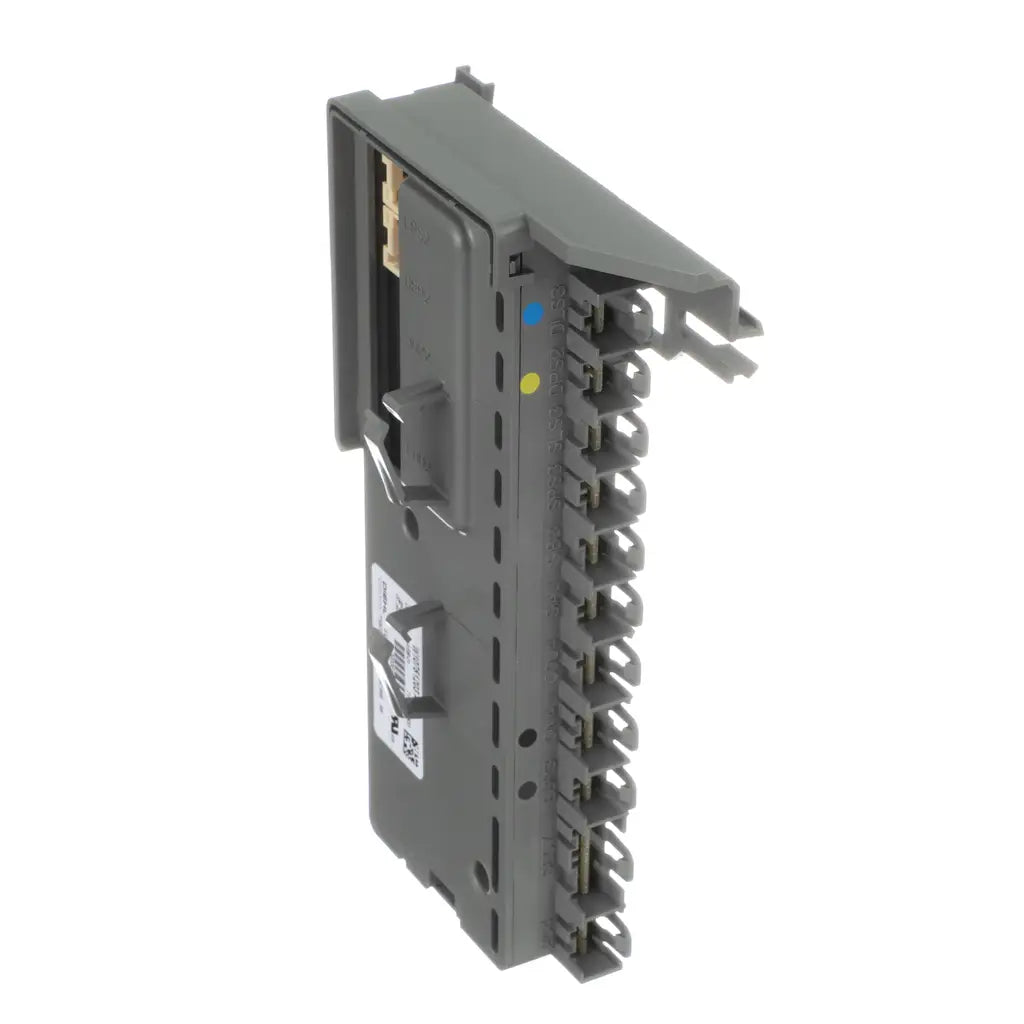

Whirlpool Washer dispenser control board W10864049, Replaces W10751203

Genuine Whirlpool washer dispenser control board that helps control the detergent dispenser. Some retailers describe the same part more generally as a washer electronic control board.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dispenser fails to release detergent at the expected time
• Washer stops during or fails to complete a cycle
• Washer will not start or responds incorrectly to cycle commands
• Dispenser-related function is intermittent or unresponsive
• Visible burning or scorch marks on the control board

Check Before Replacing

• Confirm the washer is receiving power and that the selected cycle requires detergent dispensing.
• Run the washer’s manufacturer-provided diagnostic or service-test procedure and note any dispenser- or control-related error codes.
• With the washer unplugged, inspect the control-board wiring connectors for loose connections, corrosion, or visible damage; do not force or probe energized connectors.
• Inspect the board and surrounding area for visible burn marks, melted components, or water damage.
• Check that the dispenser mechanism is not visibly obstructed before attributing the symptom to the control board.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM washer control board
• Dispenser-control function
• Manufacturer part number W10864049
• Replaces Whirlpool part number W10751203
• Listed for select Whirlpool and Maytag front-load washers

Installation Notes

• Disconnect electrical power before servicing or installing the board.
• Wear protective work gloves when handling the washer and control board.
• Transfer or reconnect wiring only as shown by the washer’s model-specific service information; verify connector placement before restoring power.
• Use the exact washer model and model-specific service documentation to confirm fit and any required post-installation testing.

Verified Compatible Models

MHW8200FC0, MHW8200FW0, WFW92HEFBD0, WFW92HEFC0, WFW92HEFU0, WFW92HEFW0, WFW9290FBD0, WFW9290FC0, WFW9290FW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
