Dishwasher Not Draining? W10876537 Drain Pump – Fix Standing Water Fast
If your Whirlpool dishwasher has standing water in the bottom after a cycle, won’t drain, or displays a drain error code, the drain pump is the most likely culprit. In most Whirlpool, KitchenAid, and Maytag dishwashers, the drain pump is responsible for expelling dirty water from the tub at the end of each cycle — when the motor burns out, the impeller jams, or bearings wear, water stays in the tub and cycles fail to complete. ⚡ One of the most common dishwasher failures across Whirlpool-built platforms. Part W10876537 is the genuine OEM replacement drain pump that restores full drainage and normal cycle completion.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dishwasher powers on and cycles run normally until drain phase
- ✔ Drain hose and filter have been checked and are clear of clogs
- ✔ Garbage disposal knockout plug removed (if newly installed)
- ✔ Door latch and control board are functioning correctly
- ✔ ONLY problem is water remaining in the tub, no drainage, humming with no water movement, or active drain error code
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Standing water in the bottom of the dishwasher after cycle completes — most common complaint
- Dishwasher won’t drain at all — pump motor failed
- Humming noise from pump area but no water movement — impeller jammed
- Grinding or rattling from pump area during drain phase — debris in impeller or bearing failure
- Dishwasher stops mid-cycle with water inside — pump failure triggering cycle abort
- Drain error code displayed on control panel
✔ If these symptoms match, the drain pump is the most likely failed component in the system.
✔ In most cases, replacing the drain pump restores full drainage and normal cycle operation immediately.
📦 Part Details

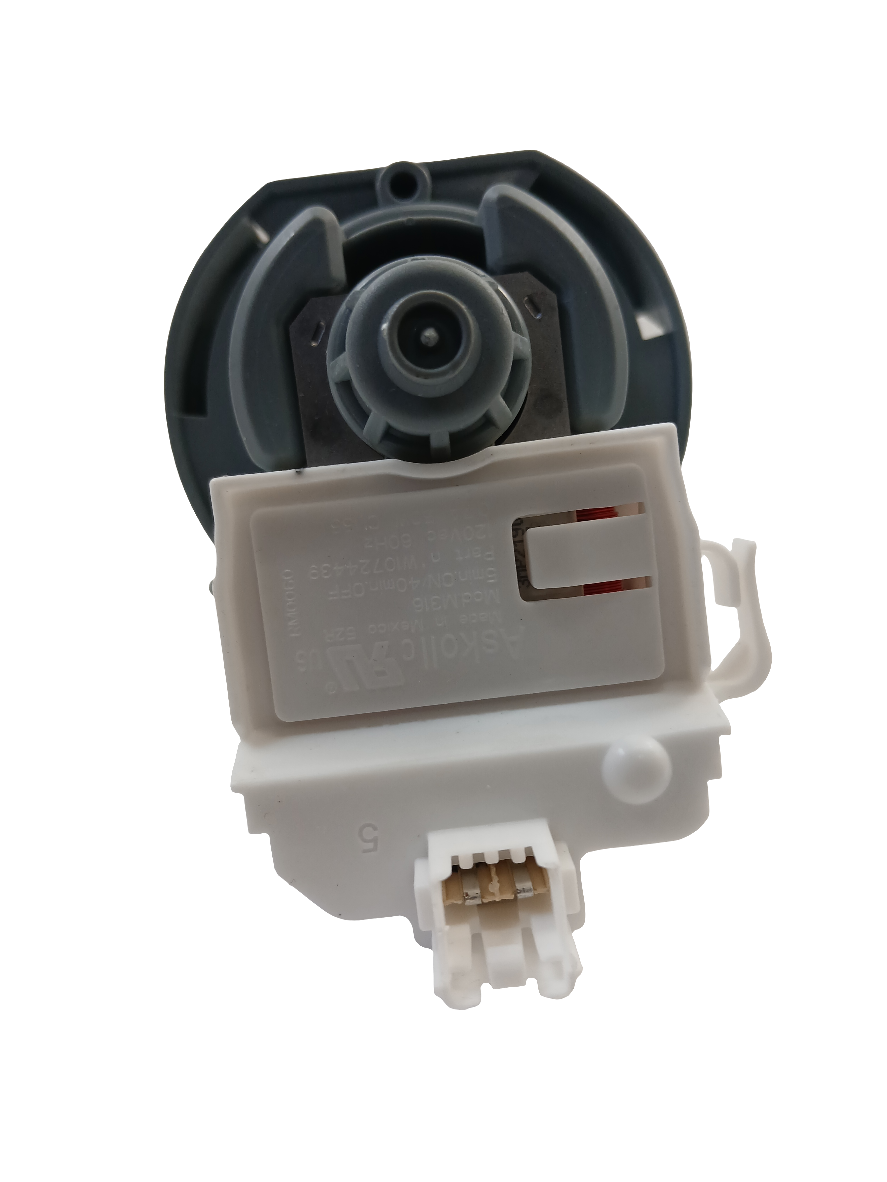

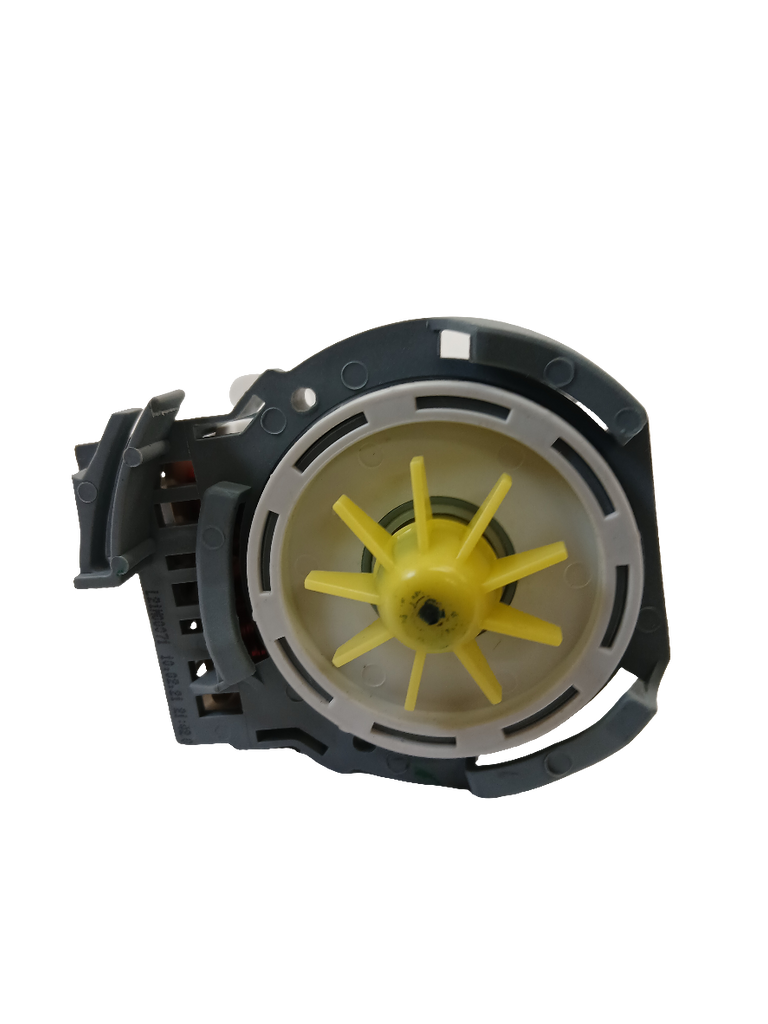

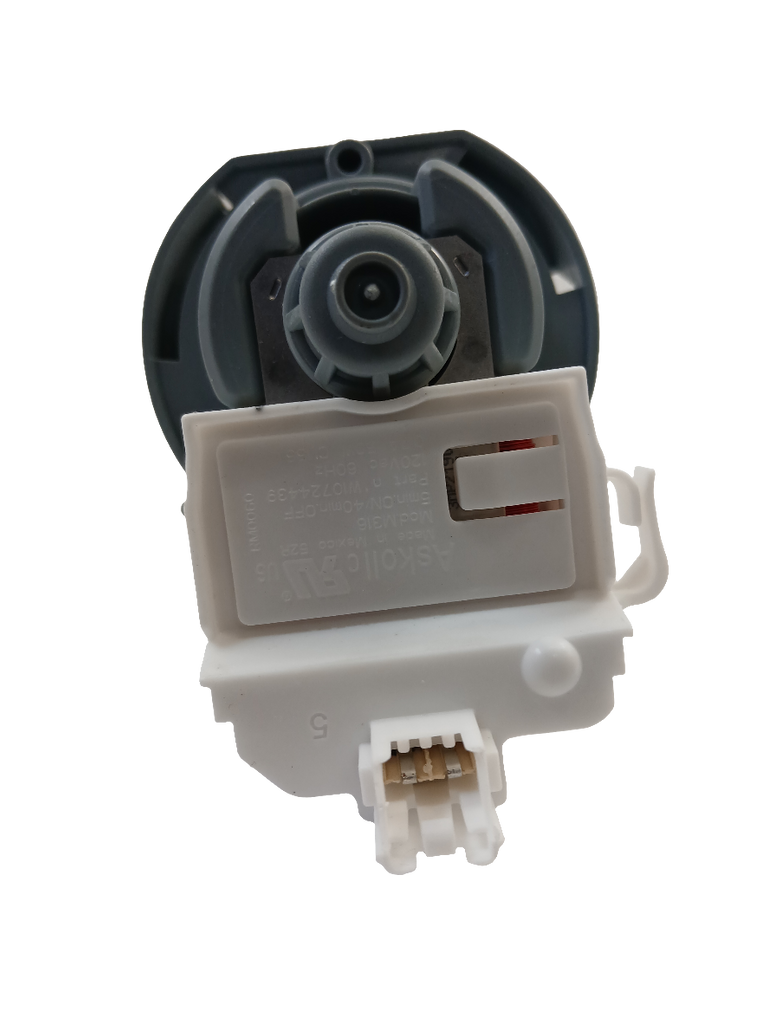

- Part Number: W10876537 (OEM) / DW6537 (XPart aftermarket)
- Type: Dishwasher drain pump assembly — sealed motor and impeller unit, 120V AC
- Replaces: OEM direct-fit assembly — supersedes W10724439, W10348269, W10529163, W10158351, W10130913, W10510667, AP6020066, PS11752445 (no modification required)
- Brands: Whirlpool, KitchenAid, Maytag, Kenmore, Amana, Jenn-Air, Ikea
⚠️ Check Before You Order:
Before replacing the drain pump, check the dishwasher filter and drain hose for clogs — a blocked filter or kinked hose causes identical standing water symptoms at a fraction of the cost. If the pump hums but no water moves, inspect the pump inlet for broken glass or debris jamming the impeller before ordering a replacement.
Before replacing the drain pump, check the dishwasher filter and drain hose for clogs — a blocked filter or kinked hose causes identical standing water symptoms at a fraction of the cost. If the pump hums but no water moves, inspect the pump inlet for broken glass or debris jamming the impeller before ordering a replacement.
⚙️ Installation Notes

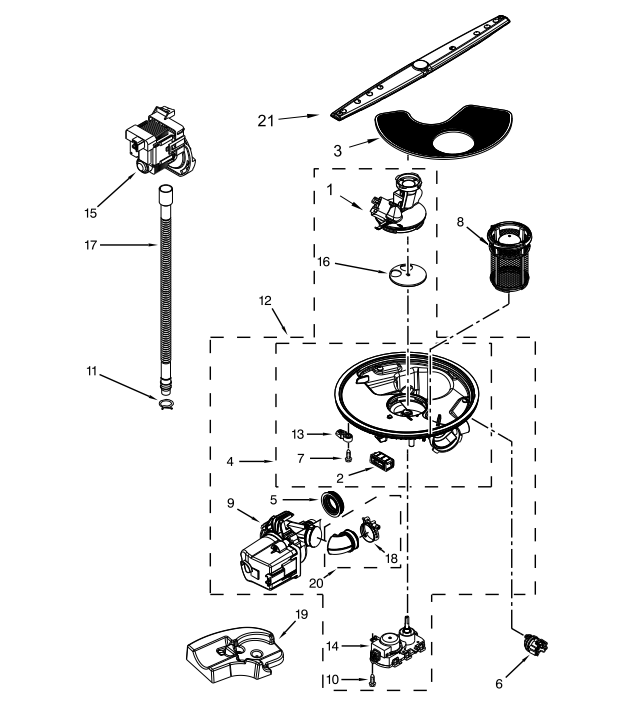

Skill Level: MODERATE — 30–45 minutes. Disconnect power to the dishwasher before beginning any repair. The drain pump is located at the bottom of the dishwasher tub — access requires removing the lower spray arm, filter assembly, and pump cover. Disconnect the two wire harness connectors and the drain hose clamp before removing the pump. When installing the new pump, ensure the inlet port is clear of debris and the drain hose clamp is fully seated before restoring power and running a test cycle.
💡 Pro Tip
Photograph harness connectors before disconnecting:
The W10876537 drain pump has two harness connectors that must be reattached in the correct orientation. A quick photo before removal eliminates guesswork on reassembly. While the pump cover is off, inspect the wash pump impeller area as well — debris that jammed the drain pump often originates from the wash zone and may cause a repeat failure if not cleared.
The W10876537 drain pump has two harness connectors that must be reattached in the correct orientation. A quick photo before removal eliminates guesswork on reassembly. While the pump cover is off, inspect the wash pump impeller area as well — debris that jammed the drain pump often originates from the wash zone and may cause a repeat failure if not cleared.
✓ Model Repair Pages
WDTA75SAHZ0, WDT975SAHZ0, WDT750SAHZ0, WDT730PAHZ0, WDT720PADW3, WDF560SAFW2, WDF540PADW3, KDTE304GPS1, KDTE204GPS1
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
