Microwave Cutting Out or Dead? Wire Harness W10907653 — Fix Intermittent Power & Control Loss Fast
Intermittent microwave shutdowns and unresponsive controls are a classic sign of a failing wire harness. In most Whirlpool-built over-the-range microwaves, the wire harness is the central nervous system — routing power and signals between the control board, door switches, touchpad, and internal components. When it fails or develops a break, the microwave may cut out randomly, fail to start, or lose specific functions entirely. ⚡ Common failure point in Whirlpool-built OTR microwaves. Part W10907653 is the genuine OEM replacement that restores reliable electrical connections and full microwave operation.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Microwave cuts out intermittently or fails to start despite having power
- ✔ Control board and door switches have been confirmed functional
- ✔ Visible wire damage, burn marks, or loose connectors present on harness
- ✔ ONLY problem is intermittent or complete loss of power/control with no other fault codes
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Microwave shuts off randomly mid-cycle
- Unit fails to start even when door is properly closed
- Specific functions (fan, light, cook) work intermittently
- Burning smell or visible scorching near wiring connectors
- Microwave completely dead with no display or response
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this wire harness restores normal operation immediately.

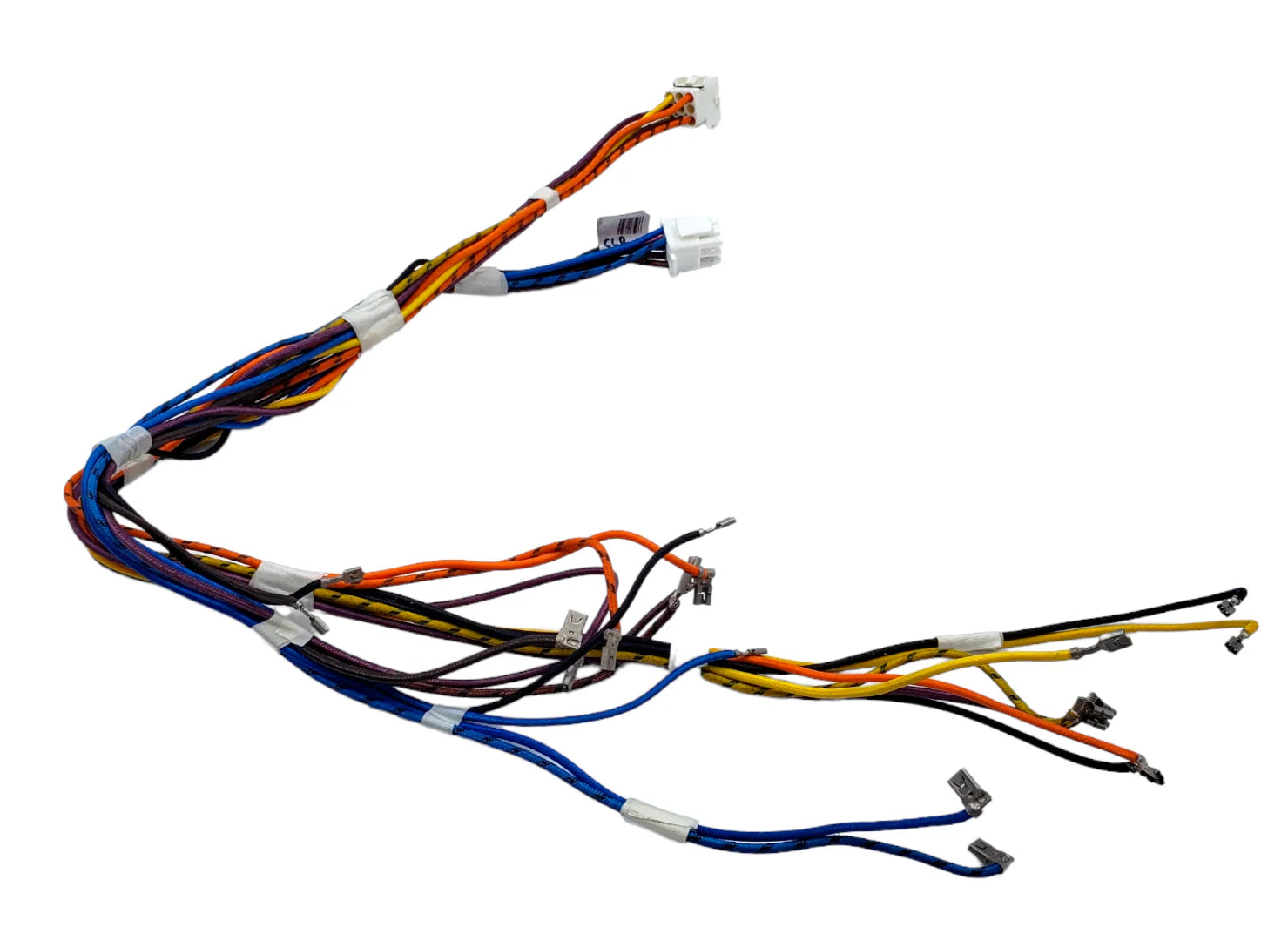

📦 Part Details
- Part Number: W10907653
- Type: Main Wire Harness Assembly
- Replaces: WPW10907653, AP6023312, PS11756639
- Brands: Whirlpool, Maytag, KitchenAid
While the harness is out, inspect all door switches — a faulty door switch can arc and damage a new harness quickly. Replacing worn door switches at the same time protects your investment and prevents a repeat failure.
⚙️ Installation
Skill Level: Moderate — 30–45 minutes. Disconnect power and discharge the capacitor before servicing — microwave capacitors retain a lethal charge even when unplugged. Remove the outer cabinet, photograph all connector positions before disconnecting, then transfer the new harness connector by connector. Verify all connections are fully seated before reassembling and testing.
✓ Compatible Models
Confirmed compatible with WMH31017AS, WMH31017AW, WMH31017AB, MMV4205DS, MMV4205DW, MMV4205DB, and additional Whirlpool, Maytag, and KitchenAid over-the-range microwave models. Contact us to verify your model number before ordering.
💡 Pro Tip
Wire harnesses have multiple connectors that can look similar. Before removing the old harness, take clear photos of every connector and its mating point. This makes reinstallation straightforward and eliminates the risk of a misconnected harness causing a new fault — or worse, a short.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
