Dryer Won't Start or Has No Heat? Thermal Fuse W10909685 – Fix Overheating Shutdown Fast
If your Whirlpool or Maytag electric dryer won't start, runs with no heat, or stops mid-cycle, a blown thermal fuse is the most common cause. In most Whirlpool-built dryers, the thermal fuse is a one-time safety device that interrupts power to the heating element when the dryer overheats — typically tripping at 196°F (91°C). When it blows, the dryer may be completely dead, spin without heat, or cut out partway through a cycle. ⚡ One of the highest-volume dryer repairs across all Whirlpool-built platforms. Part W10909685 is the genuine OEM thermal fuse that restores safe heating operation immediately, directly superseding W10693363, 3392519, and 3977767 with no modification required.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Dryer powers on (door switch, timer, and controls respond normally)
- ✔ Drum motor runs — drum spins but there is no heat, or dryer is completely dead
- ✔ Exhaust vent and lint filter are clogged or have not been cleaned recently
- ✔ Multimeter test confirms no continuity across the thermal fuse at room temperature
- ✔ ONLY problem is no heat, no start, or mid-cycle shutdown — not a mechanical drum or motor issue
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Dryer won't start at all — completely dead when you press Start
- Dryer runs but produces no heat — clothes come out damp after a full cycle
- Dryer stops mid-cycle and won't restart until it cools down
- Drum spins normally but heating element never activates
- Thermal fuse keeps blowing repeatedly after replacement
- Error codes related to thermal cut-off or overheating (varies by model)
✔ If these symptoms match, the thermal fuse is the most likely failed component in the system.
✔ In most cases, replacing the thermal fuse restores normal heating operation immediately.
📦 Part Details

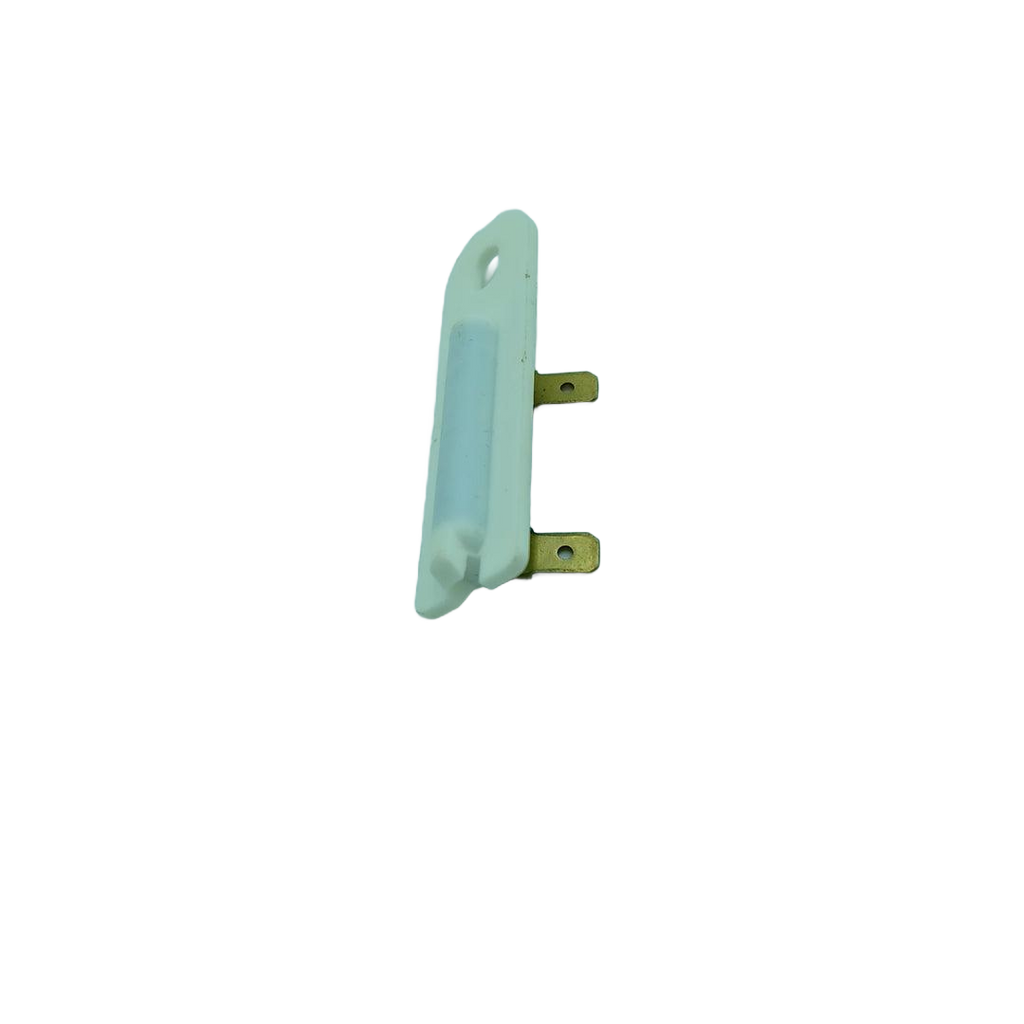

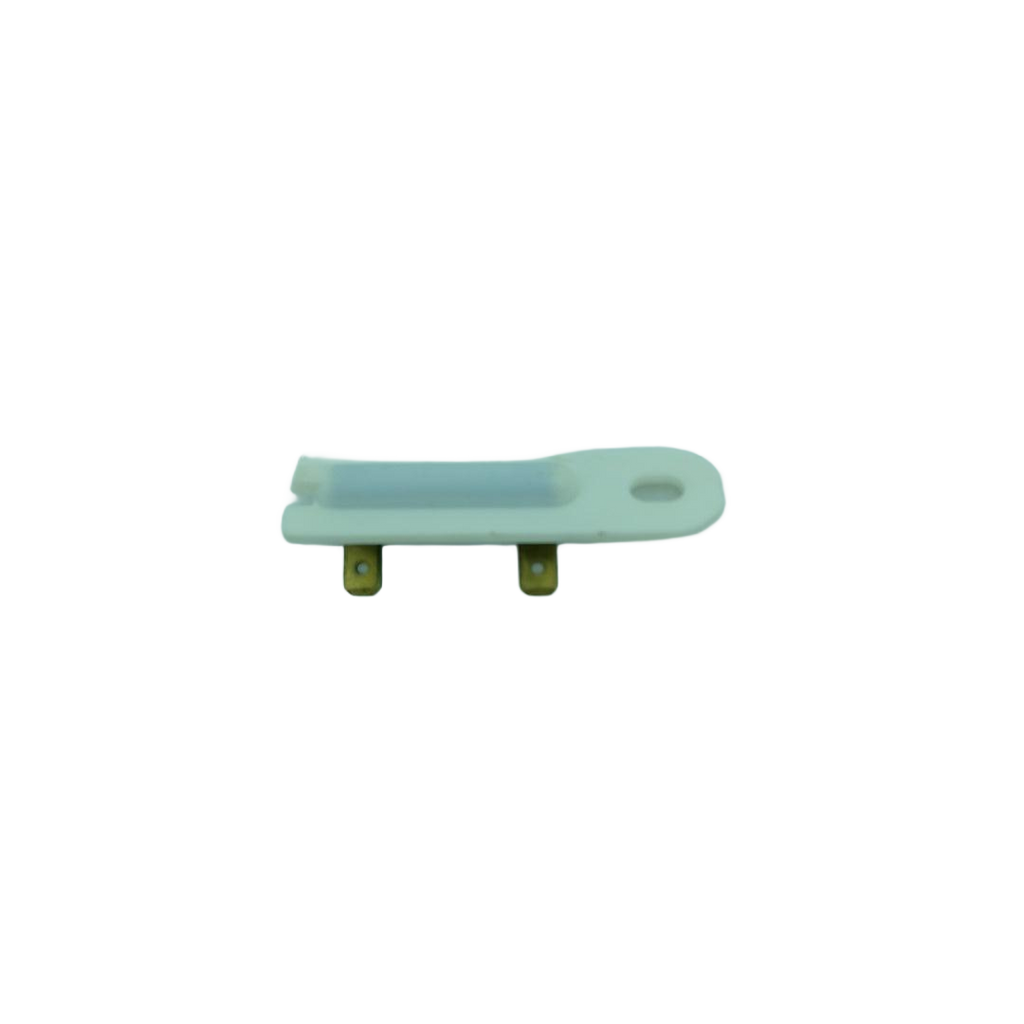

- Part Number: W10909685
- Type: Dryer thermal fuse (thermal cut-off / safety fuse) — bimetal disc, heat-resistant housing, spade terminals, 196°F (91°C) trip temperature, one-time use
- Replaces: OEM direct-fit thermal fuse — supersedes W10693363, 3392519, 3977767 (no modification required)
- Brands: Whirlpool, Maytag, KitchenAid, Kenmore, Amana
⚠️ Recommended While Repairing:
A blown thermal fuse is almost always caused by a failed cycling thermostat — when the thermostat fails, the heating element runs continuously until the fuse trips. Replace the cycling thermostat at the same time to prevent the new fuse from blowing again. Skipping this step is the #1 reason for repeat thermal fuse failures.
A blown thermal fuse is almost always caused by a failed cycling thermostat — when the thermostat fails, the heating element runs continuously until the fuse trips. Replace the cycling thermostat at the same time to prevent the new fuse from blowing again. Skipping this step is the #1 reason for repeat thermal fuse failures.

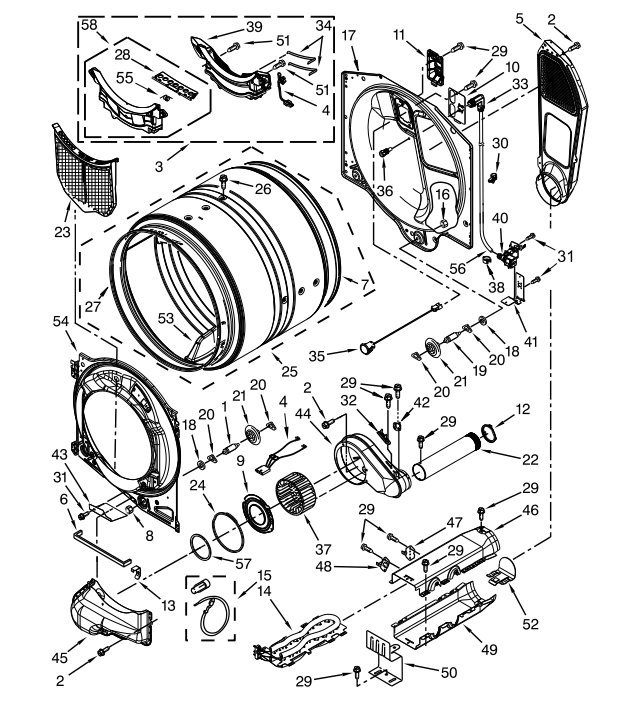

⚙️ Installation Notes
Skill Level: EASY — 15 to 30 minutes. Disconnect power to the dryer at the breaker or wall outlet before starting — never work on a live appliance. Locate the thermal fuse on the exhaust duct or blower housing by removing the dryer's rear panel. Use a multimeter to confirm the old fuse has blown (no continuity at room temperature) before replacing. Disconnect the two spade terminals, remove the single mounting screw, and install the new W10909685 in the same position. Reconnect the terminals, reassemble the panel, restore power, and run a heat cycle to confirm the repair. Critical: clean the entire exhaust duct from the dryer to the exterior vent before restoring power — a clogged vent is the root cause in the majority of thermal fuse failures and will blow the new fuse if not addressed.
💡 Pro Tip
Never Replace the Fuse Without Cleaning the Vent:
The thermal fuse blows because the dryer overheated — and the dryer overheated because airflow was restricted. Replacing the fuse without clearing the exhaust duct is the single most common reason customers order a second fuse within weeks. Disconnect the duct at both ends, run a vent brush through the full length, and confirm strong airflow at the exterior cap before reassembling. While you're in there, replace the cycling thermostat too — it's a $15–$25 part and a failed thermostat is the second most common cause of repeat fuse failures.
The thermal fuse blows because the dryer overheated — and the dryer overheated because airflow was restricted. Replacing the fuse without clearing the exhaust duct is the single most common reason customers order a second fuse within weeks. Disconnect the duct at both ends, run a vent brush through the full length, and confirm strong airflow at the exterior cap before reassembling. While you're in there, replace the cycling thermostat too — it's a $15–$25 part and a failed thermostat is the second most common cause of repeat fuse failures.
