Whirlpool Washer Not Draining? Water Pump W10919003 – Fix Standing Water and Drain Errors Fast

If your Whirlpool top-load washer won’t drain, stops mid-cycle with water in the tub, or throws F9 E1 or Sd drain error codes, the water pump is the most common cause. In Whirlpool, Maytag, Amana, and Kenmore top-load washers, the drain pump drives water out of the tub at the end of each cycle — when it fails due to a seized impeller, burned motor, or debris jam, water pools at the bottom and the washer cannot complete the cycle. ⚡ Common failure point in Whirlpool-platform top-load washers. Part W10919003 is the current OEM replacement (supersedes W10775446) that restores full drainage and normal cycle completion immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Washer powers on and agitates normally — only drainage is affected
• ✔ Drain hose has been checked and is not kinked, clogged, or improperly routed
• ✔ Pump filter/lint trap has been cleared of debris
• ✔ ONLY problem is water not draining, slow drainage, or grinding/humming noise during drain cycle

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Washer won’t drain or drains very slowly after the cycle
• Standing water at the bottom of the tub after the cycle ends
• F9 E1, Sd, or drain error codes displayed on the control panel
• Loud grinding, humming, or buzzing during the drain phase
• Washer pauses or stops mid-cycle with water still inside
• Pump runs but water level doesn’t drop

✔ If these symptoms match, this is the most likely failed component in the drain system.

✔ In most cases, replacing this water pump restores full drainage and normal cycle operation immediately.

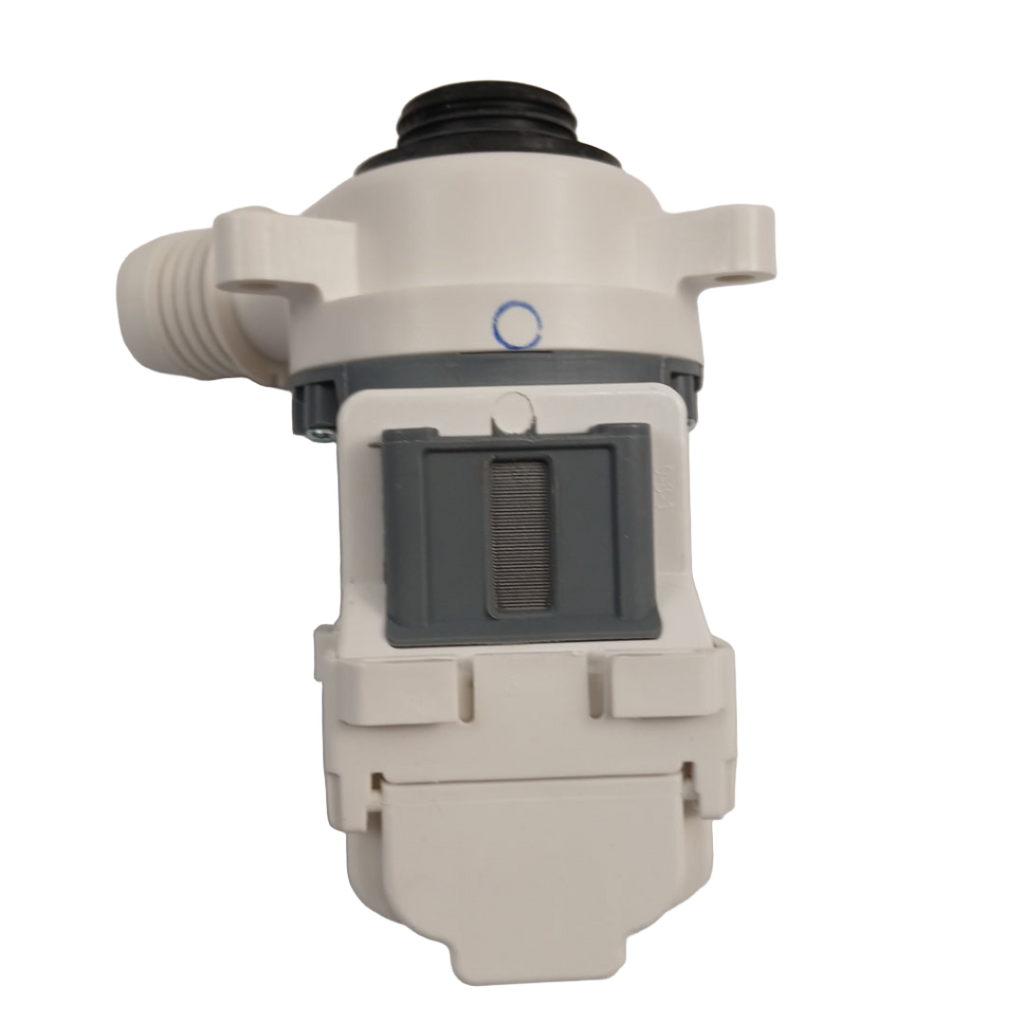

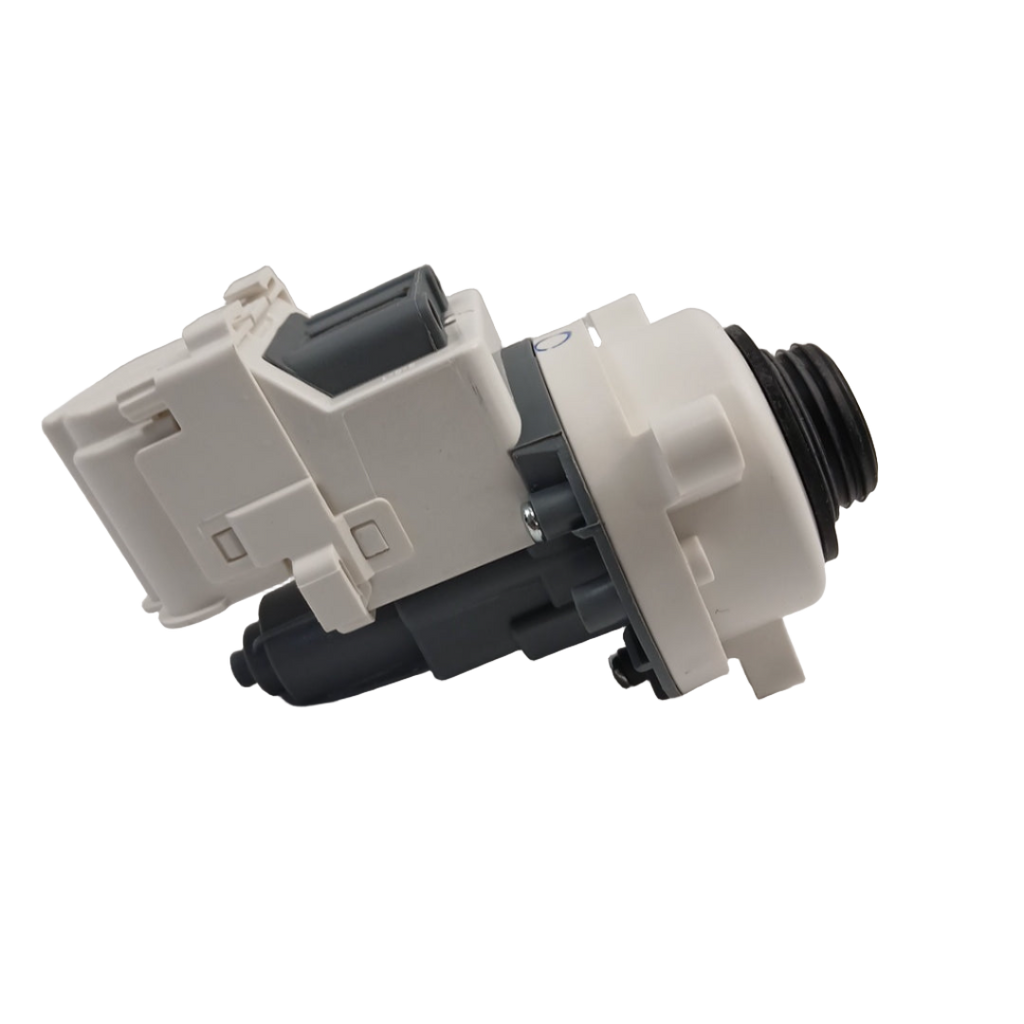

📦 Part Details

• Part Number: W10919003
• Type: Washer Water/Drain Pump — drives water out of the wash tub during and after each cycle; direct plug-in harness connection, no splicing required
• Replaces: W10775446 (no modification required)
• Brands: Whirlpool, Maytag, Amana, Kenmore, Inglis, Roper, Crosley
• Options: OEM (W10919003) and Premium XPart aftermarket available — select from the variant selector above

⚙️ Installation

Skill Level: Moderate — 30 to 45 minutes. Unplug the washer before servicing. The drain pump is accessed by removing the front lower panel or tilting the machine back — disconnect the wire harness and hose clamps (have towels ready for residual water), remove the mounting screws, swap the pump, and reconnect. Run a drain-only cycle to verify the repair before reassembling the cabinet.

✓ Compatible Models

Confirmed compatible with ATW4516HW0, ATW4516MW0, CAW11544EW2, CAW35114GW0, CAW35114GW1, CAW38125HW0, CAW38125HW1, CAW8350EW2, CAW9352EW2, ITW4671EW1, ITW4871FW1, ITW4871FW2, ITW4871FW3, ITW4880HW0, ITW4880HW1, ITW4880HW2, ITW4880HW3, ITW4971EW1, MVWC415EW2, MVWC416FW0, MVWC465HW0–HW4, NTW4516FW1–FW4, NTW4519JW0–JW2, NTW4605EW1, NTW4655EW1, NTW4665GW0, NTW4705EW1, NTW4755EW1, RTW4516FW1–FW2, WET4027HW0–HW2, WETLV27HW0–HW2, WGT4027HW0–HW1, WGTLV27HW0–HW3, WTW4616FW1–FW2, WTW4655JW0–JW1, WTW4715EW2, WTW4810EW2, WTW4815EW2, WTW4816FW1–FW3, WTW4850HW0–HW2, WTW4855HW0–HW3, WTW4915EW2, WTW4950HW0–HW2, WTW4955HW0–HW3, WTW4957PW0, YWET4027HW0–HW1, 7MMVWC416FW0, 7MMVWC417FW0, 7MMVWC465JW0, 7MWET4027HW0, 7MWGT4027HW0–HW1, 8TWTW4955JW0, 1CWTW4705GW0, plus additional Kenmore and numeric variants. Contact us to verify your model number before ordering.
