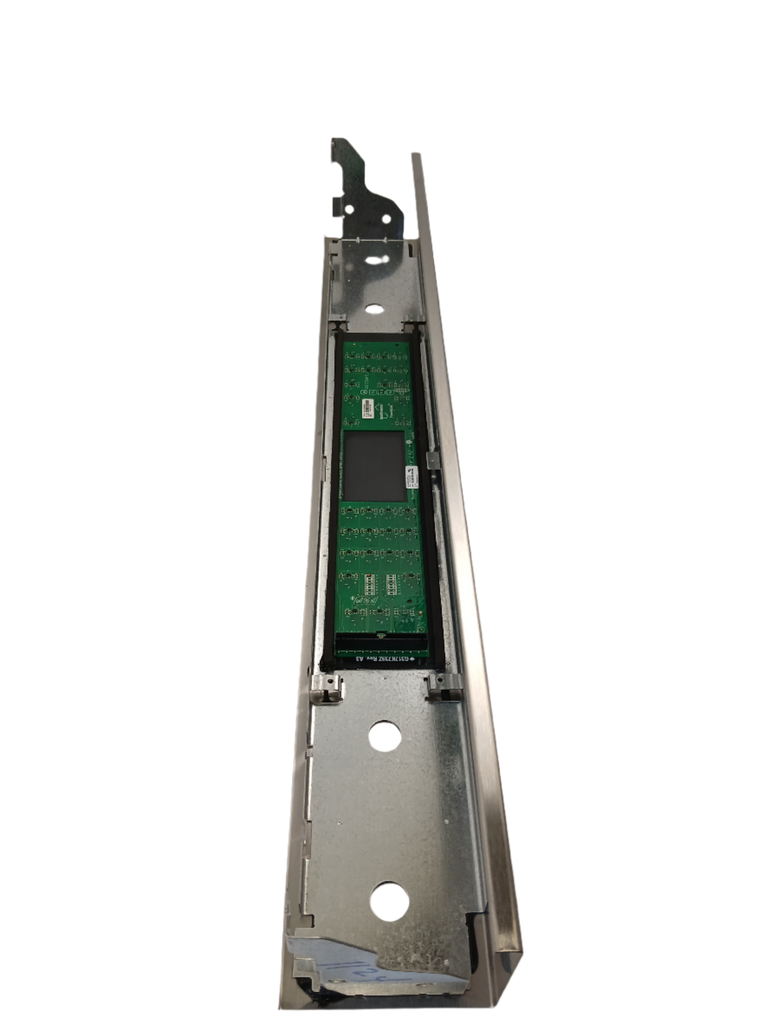

Whirlpool Range Control Panel (Stainless) W11029431, Replaces W10547096, W10901124, W10909669

Genuine Whirlpool control panel in stainless finish for compatible KitchenAid/Whirlpool gas slide-in ranges. It is the exterior control/interface panel, not the electronic control board itself.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Unresponsive touch buttons or incomplete response to selected cooking settings.
• Blank or nonfunctioning display interface.
• Oven controls may not start or stop a cooking function when the interface is faulty; other electrical/control causes must be ruled out.

Check Before Replacing

• With the range cool and not in use, note whether only certain touch buttons fail while others still respond; partial response is more consistent with an interface/touchpad issue than a totally dead control system.
• Record any displayed fault code before resetting power; use the model-specific tech sheet or service documentation to interpret it.
• If safe for the installation, cycle power by unplugging the range or switching its circuit breaker off for at least 10 seconds, then restore power and retest the interface.
• Before replacing the part, confirm the exact model number and compare the affected interface functions; do not perform energized electrical measurements unless qualified.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM range control-panel assembly.
• Stainless finish.
• User-interface assembly with selection buttons and display components for cooking-function control.
• Used on compatible KitchenAid/Whirlpool ranges; this is distinct from the separately listed range display board.

Installation Notes

• Disconnect electrical power to the range before servicing.
• Wear work gloves and handle the stainless panel and electronic connections carefully to avoid injury or component damage.
• Follow the model-specific service instructions and reassemble all panels before restoring power or operating the range.
• Confirm the exact model number before installation and verify normal interface operation afterward.

Verified Compatible Models

KSGG700EBL0, KSGG700EBL1, KSGG700ESS0, KSGG700ESS1, KSGG700ESS2, KSGG700ESS3, KSGG700ESS6, KSGG700ESS7, KSGG700EWH0, KSGG700EWH1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
