Whirlpool Range Radiant Surface Element W11047722 — Fix Burner Not Heating

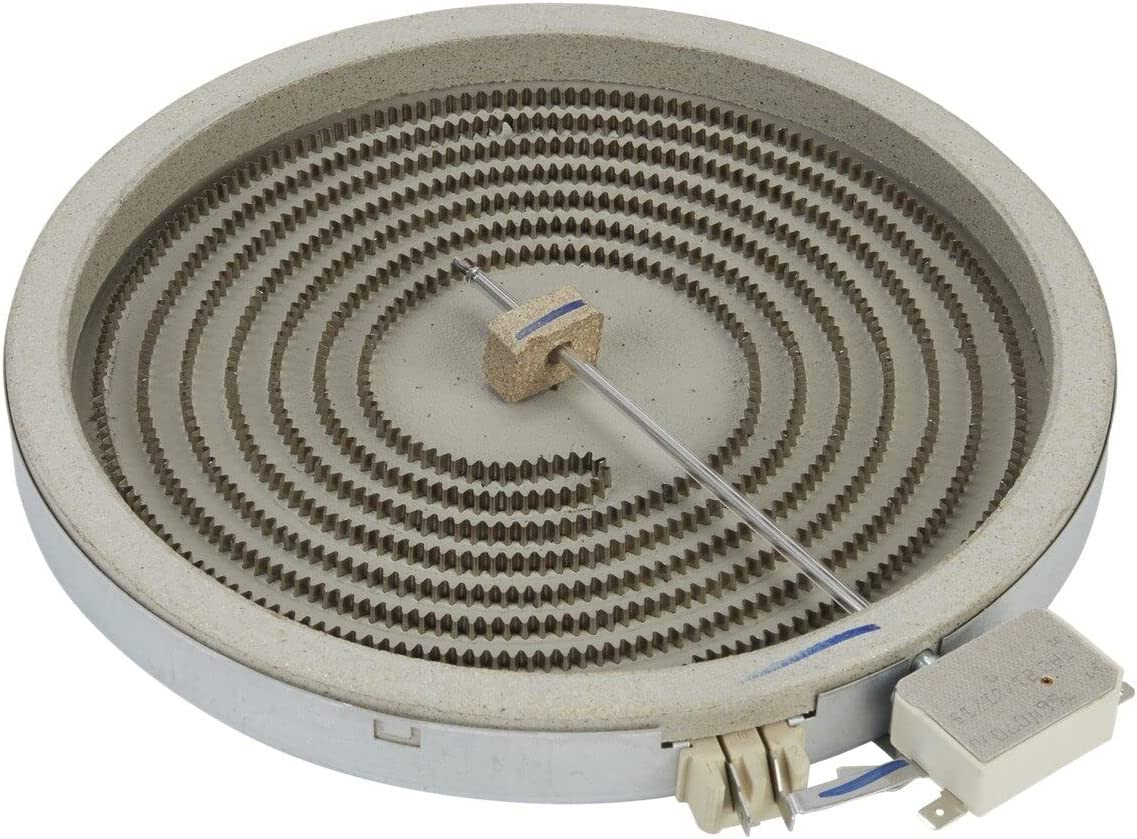

Whirlpool Range Radiant Surface Element W11047722 – Front Right OEM Replacement (Replaces 8273992, WP8273992, W10248262)

Whirlpool Range Radiant Surface Element W11047722 — Fix Burner Not Heating

Sale price: $120.95
Regular price: $137.47
You save: $16.52 (12%)

Buying Options: OEM

OEM

$120.95

Used

$50.95

Product variant with selected options does not exist!

Frequently Bought Together

Glass-Top Burner Not Heating or Heating Unevenly? Whirlpool Radiant Surface Element W11047722 – Fix Element Failure Fast

A glass-ceramic range with a burner that won’t heat, heats unevenly, or shows visible cracks or burn-through in the element ribbon almost always needs a new radiant surface element. In most Whirlpool, Maytag, Amana, and Kenmore glass-top ranges, the radiant surface element is the resistive heating ribbon sealed beneath the ceramic glass — when the ribbon develops an open circuit or burns through, that burner position stops working entirely or produces inconsistent heat. When it fails, the burner may glow in spots, produce no heat at all, or trip the infinite switch from overload. ⚡ Radiant element failure is the most common cause of a dead burner on Whirlpool-platform glass-top ranges. Part W11047722 is the genuine OEM 2500-watt, 240-volt radiant surface element that restores full burner heating in a direct bolt-in swap.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Your range is a compatible Whirlpool, Maytag, Amana, or Kenmore glass-ceramic cooktop model
✔ The infinite switch (burner control knob) tests good — continuity confirmed at multiple settings
✔ Power supply to the element terminals is confirmed at 240V
✔ ONLY problem is no heat or uneven heat at the affected burner — not a control board, wiring, or multi-burner fault

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

Burner not heating at all — no response at any switch setting
Burner heats unevenly — glows in spots or only partially across the element
Visible cracks, burn-through, or blistering visible through the glass surface
Burner trips breaker or blows fuse when switched on — element shorted
Burner glows red in isolated spots then goes dark — open circuit in element ribbon
Slow heat-up times despite correct switch setting

✔ If these symptoms match, the radiant surface element is the most likely failed component in the system.

✔ In most cases, replacing the element restores full burner heating immediately.

📦 Part Details

Part Number: W11047722
Type: Radiant Surface Element — 2500W, 240V, glass-ceramic cooktop
Supersession Chain: 8273992 / W10248262 / WP8273992 → W11047722
Replaces: 8273992, W10248262, WP8273992
Brands: Whirlpool, Maytag, Amana, Kenmore (Whirlpool-built glass-ceramic cooktop models)

⚠️ Test the Infinite Switch Before Replacing the Element:
The infinite switch for the affected burner is the most common companion failure when an element burns out — a switch that doesn’t regulate power correctly will burn out the new element prematurely. Test the switch for continuity at multiple settings before installing the new element; if it shows erratic or open readings, replace both at the same time.

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power at the breaker before beginning — this is a 240V component. Lift the glass-ceramic cooktop to access the element from below — photograph all wire terminal positions before disconnecting. Remove the mounting hardware, swap in the new W11047722 element, reconnect wires to matching terminals, and lower the cooktop. Restore power and test at multiple heat settings. Do not overtighten mounting hardware — glass-ceramic cooktops crack under uneven pressure.

✓ Compatible Models

Confirmed compatible with 4KAER7685EW0, 4KAER7685EW1, 4KMER7685ES0, 4KMER7685ES1, 4KMER7685EW0, 4KMER7685EW1, 4KWFE7685ES0, 4KWFE7685ES1, 4KWFE7685EW0, 4KWFE7685EW1, 66565025101, 66592002102, 66592004102, 66592005102, 66592012102, 66592014102, 66592015102, 66592022101, 66592023101, 66592024101, 66592025101, 66592029101, 66592142300, 66592143300, 66592144300, 66595002102, 66595004102, 66595005102, 66595012102, 66595014102 plus additional Whirlpool, Maytag, Amana, and Kenmore glass-top range models. Contact us to verify your model number before ordering.

💡 Pro Tip

Test the Element With a Multimeter Before Replacing It:
A radiant surface element can be tested for continuity with a multimeter — a good element reads a finite resistance (typically 20–100 ohms depending on wattage); an open reading (OL) confirms the element has failed. If the element tests good but the burner still won’t heat, the infinite switch or terminal block is the more likely culprit. Testing first saves a return and gets you to the correct repair faster.

✓ Model-Specific Repair Pages

✅Compatibility & Cross Reference

8273992, W10248262, WP8273992

4KAER7685EW0, 4KAER7685EW1, 4KMER7685ES0, 4KMER7685ES1, 4KMER7685EW0, 4KMER7685EW1, 4KWFE7685ES0, 4KWFE7685ES1, 4KWFE7685EW0, 4KWFE7685EW1, 66565025101, 66592002102, 66592004102, 66592005102, 66592012102, 66592014102, 66592015102, 66592022101, 66592023101, 66592024101, 66592025101, 66592029101, 66592142300, 66592143300, 66592144300, 66595002102, 66595004102, 66595005102, 66595012102, 66595014102, 4KAER7685EW0, 4KAER7685EW1, 4KMER7685ES0, 4KMER7685ES1, 4KMER7685EW0, 4KMER7685EW1, 4KWFE7685ES0, 4KWFE7685ES1, 4KWFE7685EW0, 4KWFE7685EW1, 66565025101, 66592002102, 66592004102, 66592005102, 66592012102, 66592014102, 66592015102, 66592022101, 66592023101, 66592024101, 66592025101, 66592029101, 66592142300, 66592143300, 66592144300, 66595002102, 66595004102, 66595005102, 66595012102, 66595014102, 66595015102, 66595022101, 66595023101, 66595024101, 66595025101, 66595029101, 66595032200, 66595033200, 66595034200, 66595039200, 66595142300, 66595143300, 66595144300, 66595822003, 66595822004, 66595822005, 66595823003, 66595823004, 66595823005, 66595824003, 66595824004, 66595824005, 66595825003, 66595825004, 66595825005, 66595829003, 66595829004, 66595829005, AEC6540KFB00, AEC6540KFB01, AER5822VAB0, AER5822VAD0, AER5822VAS0, AER5822VAW0, AER5822VCB0, AER5822VCS0, AER5822VCW0, AER5830VAB0, AER5830VAB1, AER5830VAD0, AER5830VAD1, AER5830VAS0, AER5830VAS1, AER5830VAW0, AER5830VAW1, AER5844VAB0, AER5844VAB1, AER5844VAD0, AER5844VAS0, AER5844VAS1, AER5844VAW0, AER5844VAW1, AER5844VCB0, AER5844VCB1, AER5844VCB2, AER5844VCS0, AER5844VCS1, AER5844VCS2, AER5844VCW0, AER5844VCW1, AER5844VCW2, AER6011VAB0, AER6011VAS0, AER6011VAW0, ARB210BAC, G7CE3034XB00, G7CE3034XC00, G7CE3034XP00, G7CE3034XS00, G7CE3055XB00, G7CE3055XS00, GGE388LXB00, GGE388LXB01, GGE388LXB02, GGE388LXB03, GGE388LXB04, GGE388LXQ00, GGE388LXQ01, GGE388LXQ02, GGE388LXQ03, GGE388LXQ04, GGE388LXS00, GGE388LXS01, GGE388LXS02, GGE388LXS03, GGE388LXS04, GR438LXRQ0, GR438LXRQ1, GR438LXRQ2, ICR444DB00, ICR444DB01, IEL730CS0, IEL730CS1, IEL730CS2, IES426AS1, IES505DS0, IES900DS00, IES900DS01, IES900DS02, IES900DS03, IES900DS04, ISE630WS01, MER6600FB0, MER6600FB1, MER6600FB2, MER6600FW0, MER6600FW1, MER6600FW2, MER6600FW3, MER6600FZ0, MER6600FZ1, MER6600FZ2, MER6600FZ3, MER8670AB0, MER8670AS0, MER8670AW0, MES5752BAB16, MES5752BAS17, MES5752BAW16, NNT199KAC, RF262LXSB1, RF262LXSB2, RF262LXSB3, RF262LXSB4, RF262LXSQ1, RF262LXSQ2, RF262LXSQ3, RF262LXSQ4, RF262LXST1, RF262LXST2, RF262LXST3, RF262LXSQ4, RF262LXST4, RF262LXSW1, RF265LXTB0, RF265LXTB1, RF265LXTB2, RF265LXTB3, RF265LXTQ0, RF265LXTQ1, RF265LXTQ2, RF265LXTQ3, RF265LXTS0, RF265LXTS1, RF265LXTS2, RF265LXTS3, RF265LXTT0, RF265LXTT1, RF265LXTT2, RF265LXTT3, RF265LXTY0, RF265LXTY1, RF265LXTY2, RF265LXTY3, RF272LXTD0, RF272LXTD1, RF272LXTD2, RF272LXTD3, RF362LXSB0, RF362LXSB1, RF362LXSQ0, RF362LXSQ1, RF362LXSS0, RF362LXSS1, RF362LXST0, RF362LXST1, RF366PXGQ2, RF366PXGT2, RF366PXGW2, RF368LXKB0, RF368LXKB1, RF368LXKP0, RF368LXKQ0, RF368LXKQ1, RF368LXKS1, RF368LXKT0, RF368LXKT1, RF368LXKV0, RF368LXKW0, RF368LXMB0, RF368LXMQ0, RF368LXMS0, RF368LXMT0, RF368LXPB0, RF368LXPB1, RF368LXPB2, RF368LXPB3, RF368LXPQ0, RF368LXPQ1, RF368LXPQ2, RF368LXPQ3, RF368LXPS0, RF368LXPS1, RF368LXPS2, RF368LXPS3, RF368LXPT0, RF368LXPT1, RF368LXPT2, RF368LXPT3, RF370LXPB0, RF370LXPB1, RF370LXPQ0, RF370LXPQ1, RF370LXPQ2, RF370LXPQ3, RF370LXPS0, RF370LXPS1, RF370LXPS2, RF370LXPS3, RF370LXPT0, RF370LXPT1, RF370LXPT2, RF370LXPT3, RF376LXGN2, RF376LXGT2, RF376LXGW2, RF378LXKB0, RF378LXKQ0, RF378LXKT0, RF386PXGB3, RF386PXGN3, RF386PXGQ3, RF386PXGT3, RF386PXGW3, RF386PXGZ3, RF388LXGQ3, RF388LXGT3, RF388LXGZ3, RF390LXKP0, RF390LXKQ0, RF390LXKT0, RF462LXSB1, RF462LXSB2, RF462LXSB3, RF462LXSB4, RF462LXSQ1, RF462LXSQ2, RF462LXSQ3, RF462LXSQ4, RF462LXSS1, RF462LXSS2, RF462LXSS3, RF462LXSS4, RF462LXST1, RF462LXST2, RF462LXST3, RF462LXST4, SES380MS0, W5CE3024XB00, W5CE3024XS00, W5CE3024XW00, W5CE3625AB00, WCE55US6HB00, WEE730H0DB0, WEE730H0DS0, WEE730H0DW0, WERE4100PB0, WERE4100PB2, WERE4100PB3, WERE4100PQ0, WERE4100PQ2, WERE4100PQ3, WERE4100PT0, WERE4200PQ0, WERE4200PQ1, WERE4200PQ2, WERE4200PQ3, WERP4110PQ0, WERP4110PQ1, WERP4110PQ2, WERP4110PQ3, WERP4110PS0, WERP4110PS1, WERP4110PS2, WERP4110PS3, WERP4110PT0, WERP4110PT1, WERP4210PQ0, WERP4210PQ1, WERP4210PQ2, WERP4210PQ3, WFE320M0AB0, WFE320M0AS0, WFE320M0AW0, WFE320M0EB1, WFE320M0EB2, WFE320M0ES1, WFE320M0ES2, WFE320M0EW1, WFE320M0EW2, WFE320M0JB0, WFE320M0JS0, WFE320M0JS1, WFE320M0JW0, WFE361LVB0, WFE361LVB1, WFE361LVD0, WFE361LVD1, WFE361LVQ0, WFE361LVQ1, WFE361LVS0, WFE361LVS1, WFE361LVT0, WFE361LVT1, WFE505W0HB0, WFE505W0HB1, WFE505W0HB2, WFE505W0HB3, WFE505W0HS0, WFE505W0HS1, WFE505W0HW0, WFE505W0HW1, WFE505W0HW2, WFE505W0HW3, WFE505W0HZ0, WFE505W0HZ1, WFE505W0JS0, WFE505W0JS1, WFE505W0JV0, WFE505W0JV1, WFE505W0JZ0, WFE505W0JZ1, WFE510S0AB0, WFE510S0AD0, WFE510S0AS0, WFE510S0AT0, WFE510S0AW0, WFE510S0HB0, WFE510S0HB1, WFE510S0HS0, WFE510S0HS1, WFE510S0HW0, WFE510S0HW1, WFE515S0EB0, WFE515S0EB1, WFE515S0EB2, WFE515S0ED0, WFE515S0ED1, WFE515S0ES0, WFE515S0ES1, WFE515S0ES2, WFE515S0ET0, WFE515S0ET1, WFE515S0ET2, WFE515S0EW0, WFE515S0EW1, WFE515S0EW2, WFE515S0JB0, WFE515S0JB1, WFE515S0JS0, WFE515S0JS1, WFE515S0JW0, WFE515S0JW1, WFE520C0AB0, WFE520C0AS0, WFE520C0AW0, WFE520S0FS0, WFE520S0FS1, WFE520S0FS2, WFE525C0BB0, WFE525C0BS0, WFE525C0BW0, WFE525S0JB0, WFE525S0JB1, WFE525S0JS0, WFE525S0JS1, WFE525S0JT0, WFE525S0JV0, WFE525S0JV1, WFE525S0JW0, WFE525S0JW1, WFE525S0JZ0, WFE525S0JZ1, WGE555S0BB00, WGE555S0BB01, WGE555S0BB02, WGE555S0BB03, WGE555S0BS00, WGE555S0BS01, WGE555S0BS02, WGE555S0BS03, WGE555S0BW00, WGE555S0BW01, WGE555S0BW02, WGE555S0BW03, YIEL730CS0, YIEL730CS1, YIEL730CS2, YIES426AS1, YIES505DS0, YIES505DS1, YIES900DS00, YIES900DS01, YIES900DS02, YIES900DS03, YIES900DS04, YISE630WS01, YMER6600FB0, YMER6600FB1, YMER6600FB2, YMER6600FW0, YMER6600FW1, YMER6600FW2, YMER6600FW3, YMER6600FZ0, YMER6600FZ1, YMER6600FZ2, YMER7651WB0, YMER7651WB1, YMER7651WB2, YMER7651WS0, YMER7651WS1, YMER7651WS2, YMER7651WW0, YMER7651WW1, YMER7651WW2, YMER8670AB0, YMER8670AS0, YMER8670AW0, YWEE730H0DB0, YWEE730H0DS0, YWEE730H0DS1, YWEE730H0DW0, YWEE730H0DW1, YWFE361LVB0, YWFE361LVB1, YWFE361LVQ0, YWFE361LVQ1, YWFE361LVS0, YWFE361LVS1, YWFE505W0JW0, YWFE505W0JZ0, YWFE505W0JZ1, YWFE510S0AB0, YWFE510S0AS0, YWFE510S0AW0, YWFE510S0EB0, YWFE510S0ES0, YWFE510S0ES1, YWFE510S0EW0, YWFE510S0HB0, YWFE510S0HB1, YWFE510S0HS0, YWFE510S0HS1, YWFE510S0HW0, YWFE510S0HW1, YWFE515S0EB1, YWFE515S0ES1, YWFE515S0EW1, YWFE515S0JB0, YWFE515S0JS0, YWFE515S0JS1, YWFE515S0JW0, YWFE520S0FS0, YWFE520S0FS1, YWFE520S0FS2, YWFE520S0FW1, YWFE520S0FW2, YWFE521S0HS0, YWFE521S0HS1, YWFE521S0HS2, YWFE521S0HW0, YWFE521S0HW1

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
