Whirlpool Dryer lint screen grille W11086603, Replaces 8563756, W10692558, WP8563756, W10153412, WP8299979, 8299979, W10181926, WPW10181926

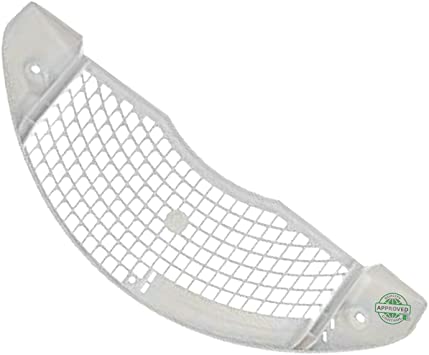

Plastic grille or top cover that fits inside the dryer lint-screen housing and helps keep clothing from entering the lint duct.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Cracked, broken, warped, or loose grille
• Clothing or small items slipping toward the lint duct
• Clothing catching or snagging on damaged grille edges
• Lint-screen fit or airflow affected when the grille is damaged or not seated correctly

Check Before Replacing

• Unplug the dryer or switch off its circuit breaker before inspecting or removing the grille.
• Remove the lint screen and visually inspect the grille for cracks, distortion, broken locating features, loose sections, or sharp edges.
• Check that the lint screen sits fully and evenly in the housing and that the grille does not obstruct its seating.
• With the dryer disconnected from power, check for lint or small items around and behind the grille without forcing or damaging the assembly.
• If clothing is snagging, inspect the grille edge and adjacent lint-screen housing for damage; do not operate the dryer with a sharp, cracked, loose, or missing grille.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM dryer lint-screen grille/top-cover component
• White plastic grille
• Fits inside the lint-screen housing
• Acts as a barrier against clothing or small items entering the lint duct
• Replacement package is listed as one dryer lint-filter grille

Installation Notes

• Disconnect electrical power before installation.
• Remove the lint screen and use the model-specific service or repair instructions for access to the grille.
• Inspect the replacement grille and compare its locating features and mounting openings with the removed part before fastening it.
• Transfer moisture-sensor strips only when the appliance design uses them and the strips are undamaged; they are not included with the grille according to PartSelect.
• After installation, confirm the grille is secure and the lint screen seats fully before restoring power.

Verified Compatible Models

3RLEC8646KQ1, 3RLEQ8000KQ4, 7MGGW9200MW2, 7MGGW9868KQ1, CEM2750JQ0, CET9000GQ0, CSP2740KQ2, CSP2760KQ2, CSP2940HQ0, GEQ8831LL0, GGC9858HQ1, GGW9200LQ0, LTE6234DQ4, OEM3GEQ8858JT1, YWED7120HC1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
