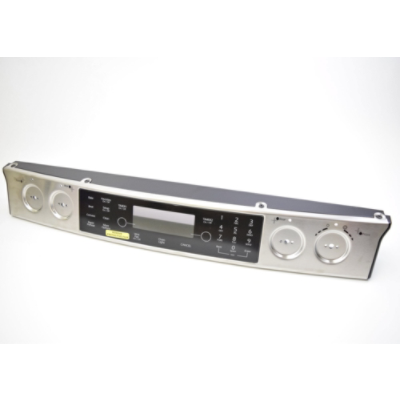

Whirlpool Range control panel and overlay W11091880, Replaces W10861018

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Blank or flickering range display
• Some control buttons respond while others do not
• Oven functions cannot be selected through the control panel
• Worn, cracked, faded, or peeling control overlay markings

Check Before Replacing

• Confirm the range has electrical power and that the control lock is not enabled, following the appliance owner's manual.
• Disconnect power at the circuit breaker or unplug the range for approximately one minute, restore power, and check whether the display and controls respond.
• Visually inspect the panel and overlay for cracking, peeling, delamination, damaged buttons, or signs of liquid intrusion; do not operate the range if the panel is damaged in a way that could expose electrical components.
• If only certain buttons fail, compare the unresponsive areas with the printed overlay and verify that the issue is not limited to worn or damaged labeling.
• Verify the appliance model and the replacement part number before ordering or installing, because visually similar panels may differ in size, shape, or control layout.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before installation.
• Wear work gloves to help protect hands from sharp sheet-metal or panel edges.
• Use the appliance-specific service information and transfer only the components confirmed for the exact model; do not force connectors or panel parts into place.
• After installation, restore power and verify the display and control functions before normal use.

Verified Compatible Models

KSEG700EBS0, KSEG700EBS1, KSEG700EBS2, KSEG700EBS3, KSEG700EBS7, YKSEG700EBS1, YKSEG700EBS2, YKSEG700EBS3, YKSEG700ESS1, YKSEG700ESS2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
