LOOSE, DAMAGED, OR MISSING OVEN-DOOR VENT TRIM
Whirlpool Range Oven door vent trim W11096161, Fixes Loose, damaged, or missing oven-door vent trim

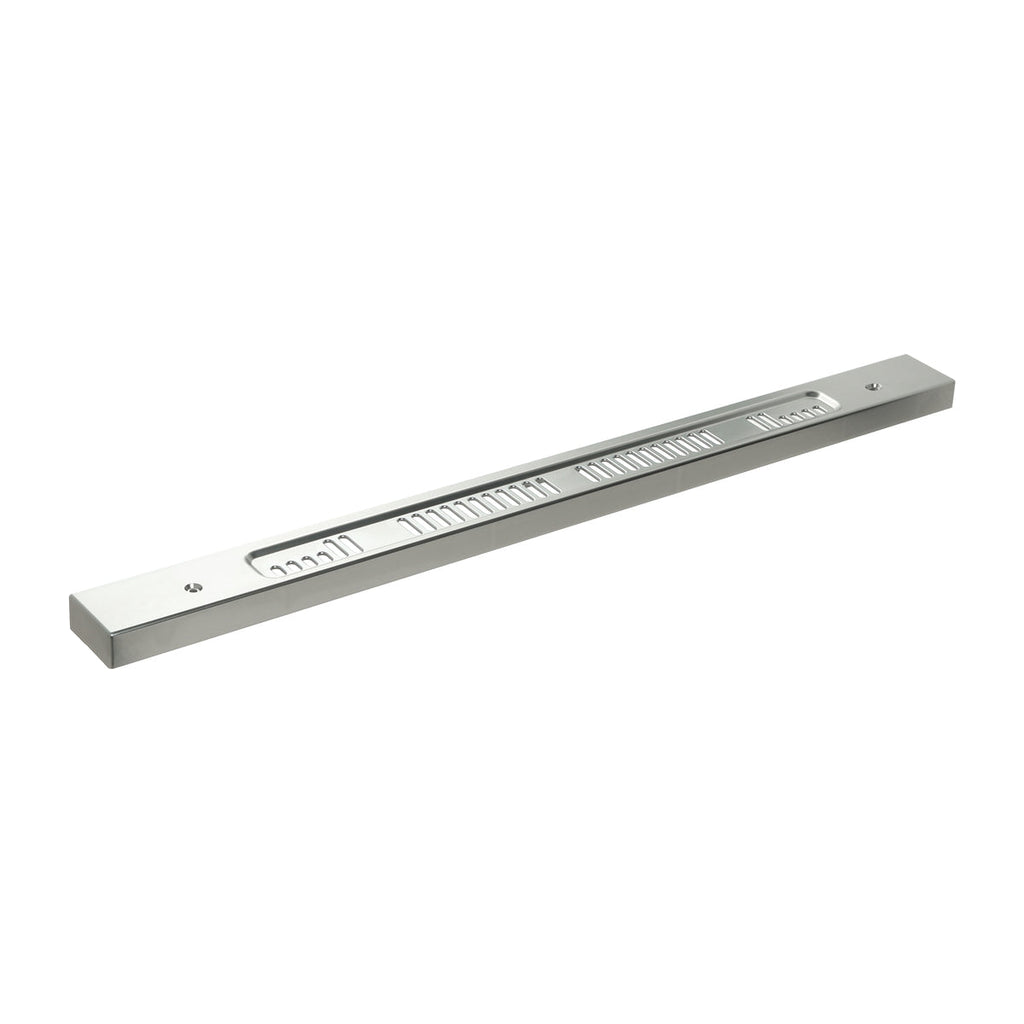

Genuine Whirlpool OEM stainless-steel vent trim for a range oven door. It attaches along the top of the oven door, provides a finished appearance, allows oven heat to vent, and houses or supports the door handle.
Part W11096161Replaces W11047800Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.
Confirm your full appliance model number before ordering.
Is This the Right Part?
Part NumberW11096161
ReplacesW11047800
ManufacturerWhirlpool
Appliance TypeRange
Part TypeOven door vent trim
✅ Cross Reference Information
Current Part NumberW11096161
ReplacesW11047800
Common Symptoms
- Loose or missing trim along the top of the oven door
- Visible denting, discoloration, corrosion, cracking, or separation
- Abnormal or obstructed airflow at the oven-door vent area
- Door-handle mounting area appears loose or unsupported
Check Before Replacing
- With the oven fully cool, visually inspect the trim for looseness, missing sections, dents, corrosion, cracking, or separation.
- Check whether the vent opening is visibly blocked by displaced trim or debris; do not probe into the door or vent passage.
- Gently check for abnormal movement of the trim and handle area without forcing the panel.
- Confirm the replacement part against the appliance model and the original part before removal.
Pro Tip
If the trim is loose or damaged, inspect the door-handle mounting area and the trim’s attachment points before installation; a damaged attachment area may require additional service beyond replacing the trim.
Part Details
Part NumberW11096161
Part TypeOven door vent trim
ManufacturerWhirlpool
Appliance TypeRange
Primary FunctionCovers the range oven-door vent opening, helps direct hot air out of the door, provides finished appearance, and houses or supports the door handle.
Installation Notes
- Allow the oven and door to cool completely before servicing.
- Disconnect electrical power before beginning appliance service, following the range service instructions.
- Verify the exact appliance model and replacement part before removing the existing trim.
- Follow the model-specific service or installation instructions for door handling and trim attachment; do not force the trim into position.
- After installation, confirm that the trim and handle area are secure and that the vent opening is not obstructed.
Verified Compatible Models
MER4600LS0, MER4600LS2, MER4600LS3, MER4800PZ0, MER4800PZ1, MER6600FB0, MER6600FB1, MER6600FW0, MER6600FW1, MER6600FZ0, MER6600FZ1, MGR6600FB0, MGR6600FZ0, MGR6600FZ1, WFG525S0HZ0
Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
