KitchenAid Range Oven Not Responding? Control Board W11100619 – Restore Full Oven Function Fast
If your KitchenAid range oven has a blank display, unresponsive controls, or won’t heat despite the surface elements working, the electronic control board is the most likely cause. In KitchenAid KSIB and LKSIB series ranges, this board manages all oven functions — bake and broil element switching, temperature regulation, timer, and control panel input. When it fails, the oven may be completely dead, stuck in a mode, or unable to hold temperature. ⚡ Common failure point in KitchenAid-built ranges. Part W11100619 is the genuine OEM replacement that restores precise temperature control and full oven operation immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range has power — surface elements or burners function normally
- ✔ Oven temperature sensor has been tested and is within spec
- ✔ Wiring harness connectors to the board are intact and fully seated
- ✔ ONLY problem is oven not heating, display blank/frozen, or controls unresponsive
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Oven display is blank or shows error codes that won’t clear
- Oven won’t heat — bake or broil elements not energizing
- Control panel buttons unresponsive or intermittently responsive
- Oven heats but won’t maintain set temperature — overshoots or undershoots
- Oven stuck in self-clean mode or won’t exit a cycle
- F-code or error displayed repeatedly after power cycling
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this control board restores full oven operation immediately.

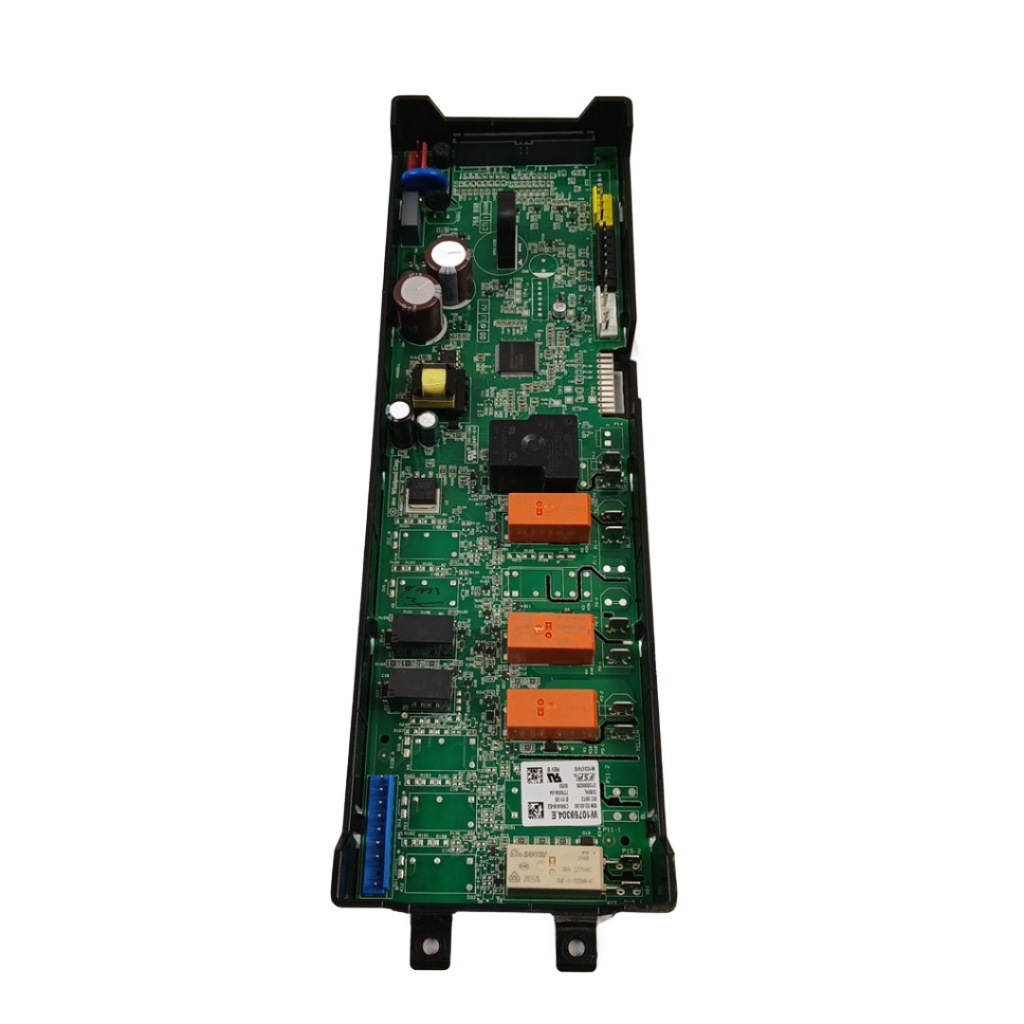

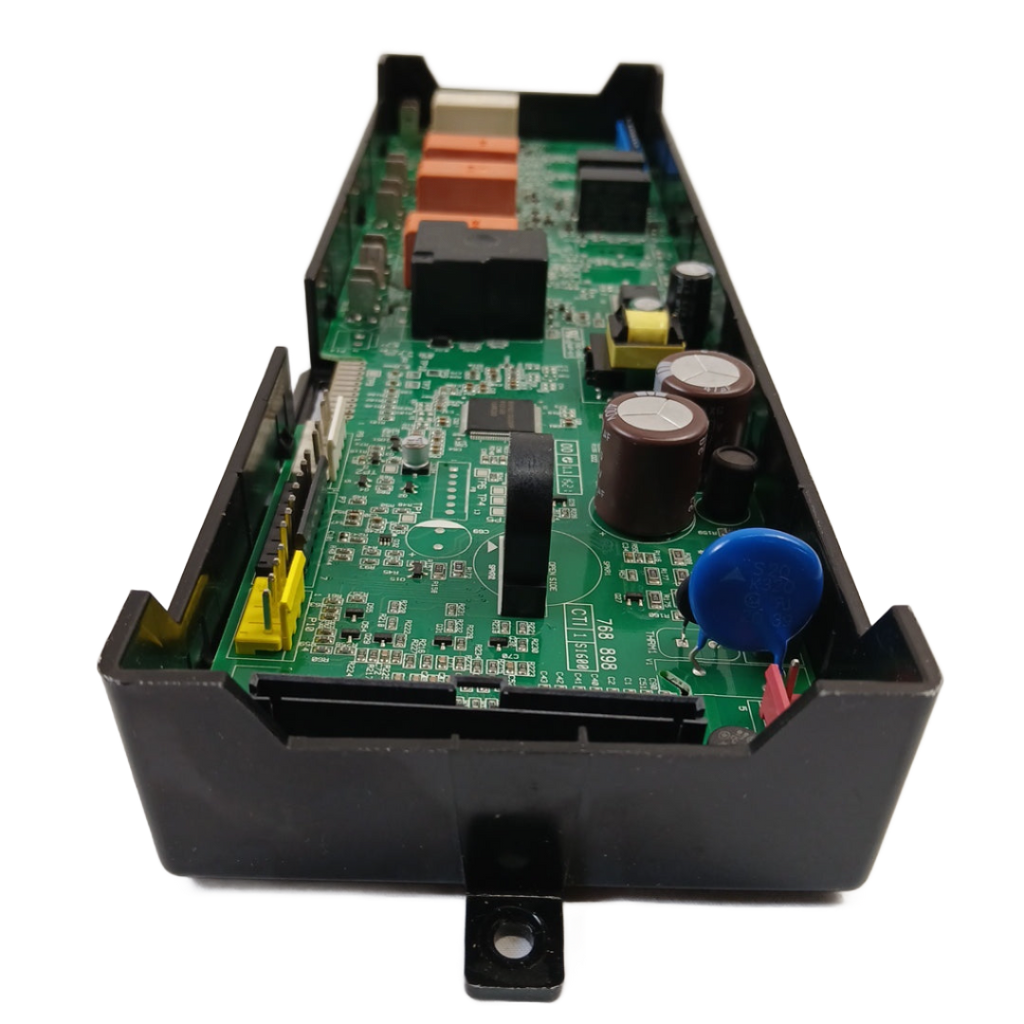

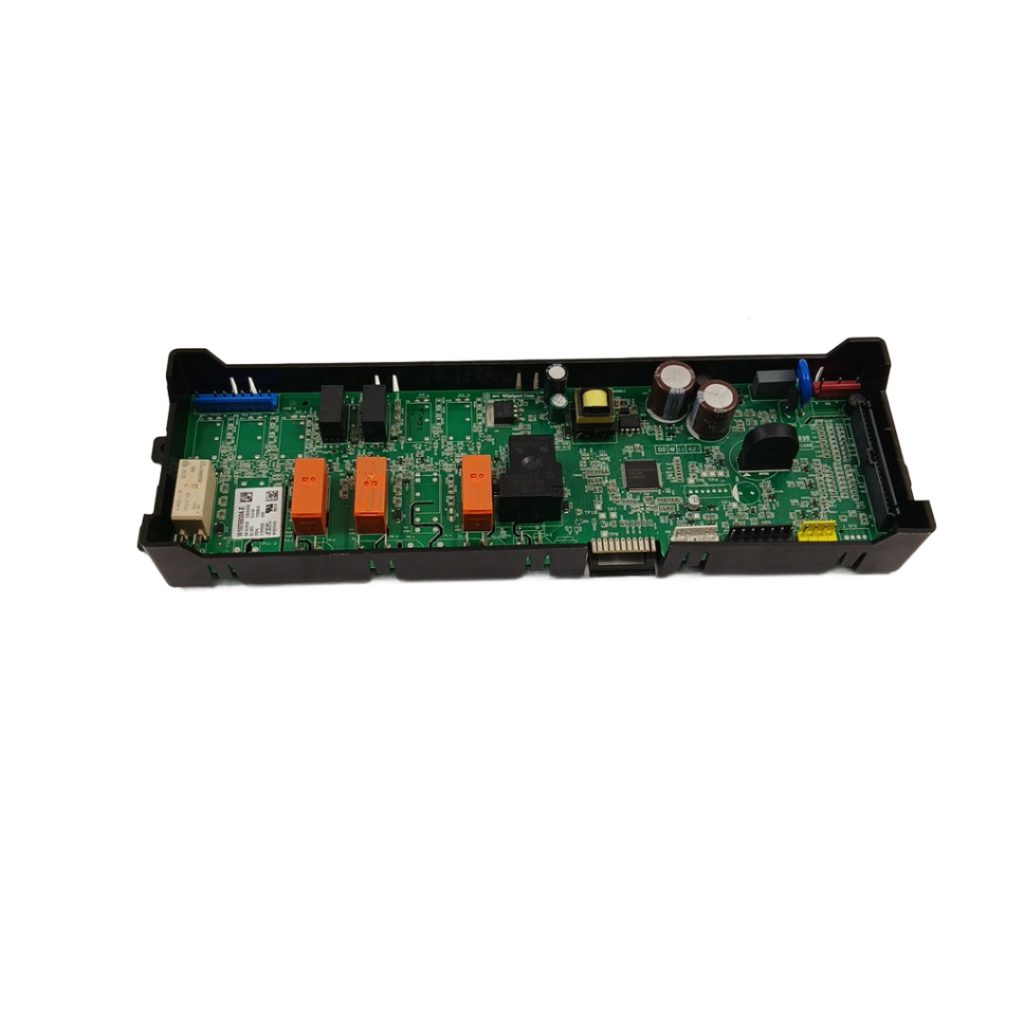

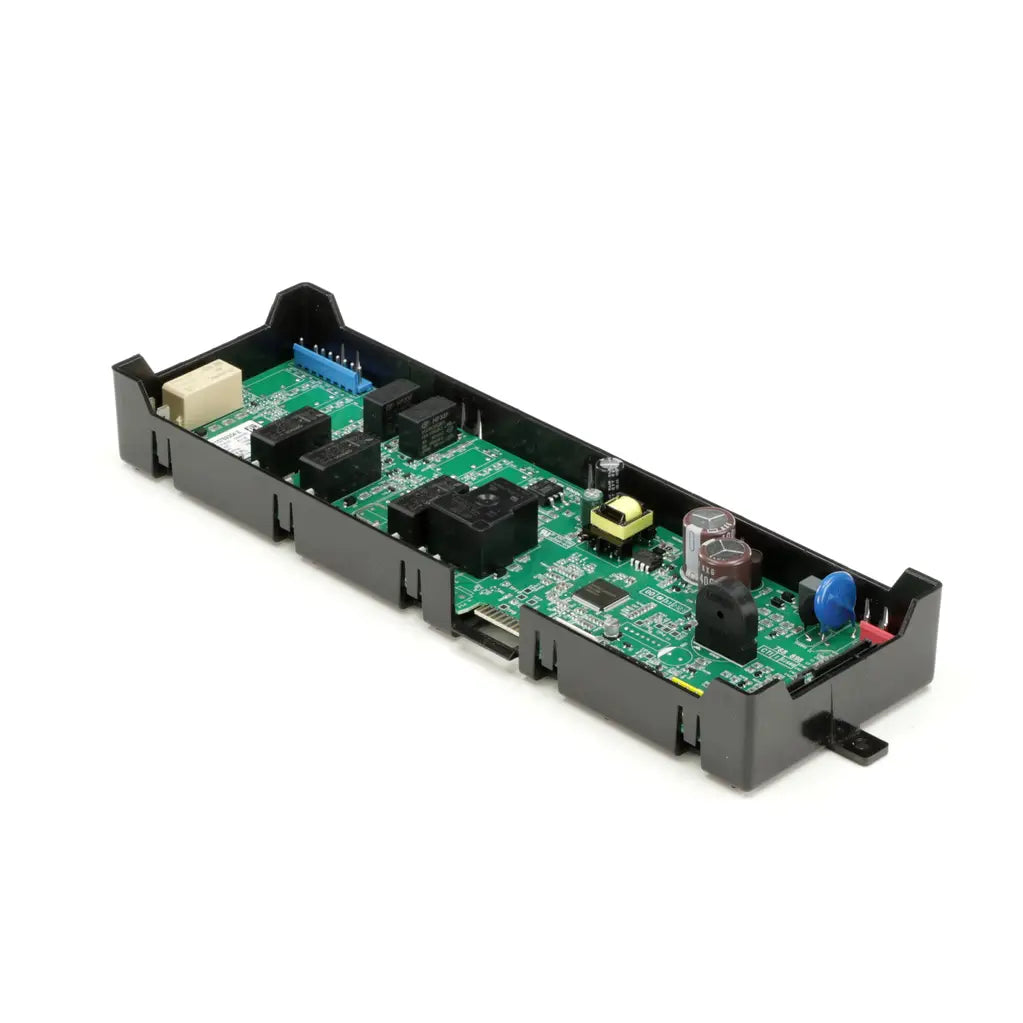

📦 Part Details
- Part Number: W11100619
- Type: Range Oven Electronic Control Board — manages bake/broil switching, temperature regulation, display, timer, and control panel input
- Replaces: W10759304 (no modification required)
- Brands: KitchenAid
Before replacing the control board, test the oven temperature sensor with a multimeter — it should read approximately 1080Ω at room temperature. A failed sensor sends incorrect readings to the board and produces identical symptoms at a fraction of the cost. If the sensor tests good, the board is the confirmed next step.
⚙️ Installation
Skill Level: Moderate — 20 to 30 minutes. Disconnect power at the breaker before servicing. The control board is located behind the rear control panel — remove the back panel screws, photograph the wiring harness layout, disconnect all connectors, swap the board, and reconnect. Restore power and verify all oven functions before reassembling the panel.
✓ Compatible Models
Confirmed compatible with KSIB900ESS1, LKSIB900ESS2, LKSIB900ESS3. Contact us to verify your model number before ordering.
💡 Pro Tip
The control board has multiple harness connectors that are easy to mix up on reassembly. A 10-second photo before you pull anything saves 20 minutes of troubleshooting afterward. Also verify all connectors click fully seated after install — a partially connected harness produces the same symptoms as a failed board and is the most common cause of a “bad” new part return.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
