Front Load Washer Leaking from the Door? Door Bellow W11106747 – Fix Door Seal Failure Fast
If your front load washer is leaking water from the door during the wash or spin cycle, the door bellow (boot seal) has failed. In most Whirlpool, Maytag, and KitchenAid front-load washers, this is caused by a torn, cracked, or detached door bellow. When it fails, water escapes past the drum seal onto the floor, laundry room damage accumulates, and the washer may stop mid-cycle on leak-detection models. ⚡ One of the most common failure points in Whirlpool-platform front-load washers. Part W11106747 is the genuine OEM replacement that restores a watertight drum-to-door seal, stops leaks immediately, and protects your floor and washer electronics from water damage.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and runs cycles normally
- ✔ Drum spins and agitates correctly
- ✔ Water supply hoses and inlet valve confirmed OK
- ✔ ONLY problem is water leaking from the front door area during wash or spin
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Water pooling on the floor in front of the washer during operation
- Visible tears, cracks, or holes in the rubber door gasket
- Mold or mildew buildup in the door seal folds (accelerates deterioration)
- Washer stopping mid-cycle with a leak or door error code
✔ If these symptoms match, the door bellow is the most likely failed component.
✔ In most cases, replacing the door bellow restores a fully watertight seal and normal operation immediately.
📦 Part Details

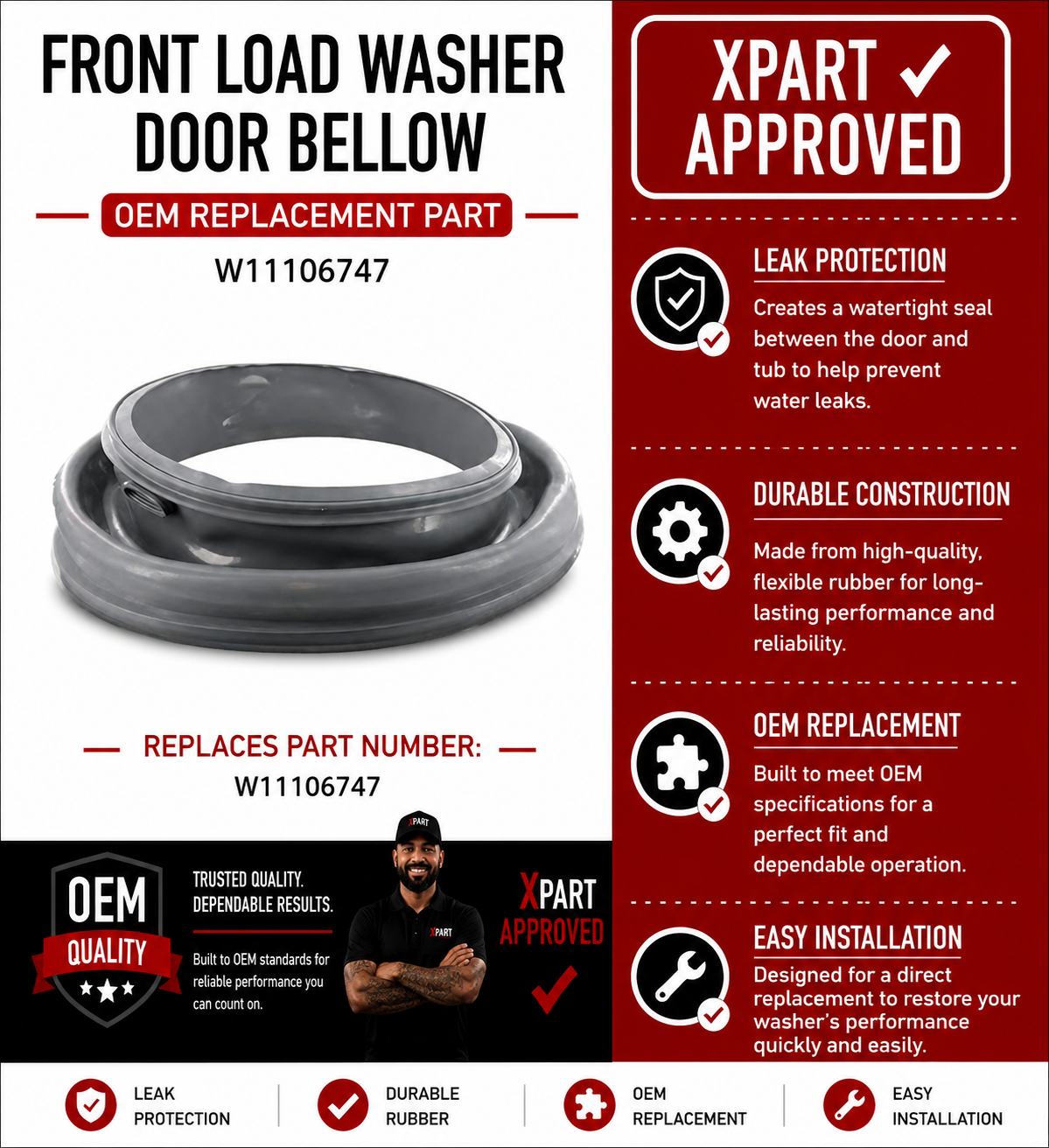

- Part Number: W11106747
- Type: Front Load Washer Door Bellow (Boot Seal / Door Gasket) — accordion-style rubber seal with reinforced mounting lips for drum-to-door watertight fit
- Replaces: AP6238143, W10340443, W10474367, W10900506, WPW10340443, WPW10474367
- Brands: Whirlpool, Maytag, KitchenAid, Amana, Kenmore (Whirlpool-built), Crosley
While the door bellow is off, inspect the door latch assembly and door strike. A worn latch is often what caused the bellow to tear in the first place — the door wasn't closing flush, putting stress on the seal. Replacing both together prevents a repeat failure within 12–18 months.
⚙️ Installation
Skill Level: MODERATE — 60–90 minutes. Disconnect power and water supply before servicing. Remove the front panel and door boot clamp rings (inner and outer) to release the old bellow. Clean the drum flange and door ring seating surfaces thoroughly. Seat the new bellow onto the tub first, then the door ring, ensuring drain holes are positioned at the bottom. Reinstall clamp rings and run a full test cycle to verify no leaks.
✓ Compatible Models
Confirmed compatible with MHW3000BW0, WFW70HEBW0, WFW80HEBW0, WFW86HEBW0, WFW90HEFW0, WFW95HEDW0, MHW6000XW0, WFW8640BW0, WFW87HEDW0, WFW88HEAW0 plus additional Whirlpool, Maytag, KitchenAid, Amana, Kenmore, and Crosley front-load washer models. Contact us to verify your model number before ordering.
💡 Pro Tip
Mold and detergent buildup in the door bellow folds is the #1 cause of premature seal failure. After replacing, wipe the bellow dry after every wash and run a monthly drum-clean cycle. Recommend this to your customer — it prevents a callback and positions you as the trusted parts source when they need the door latch or drain pump next.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
