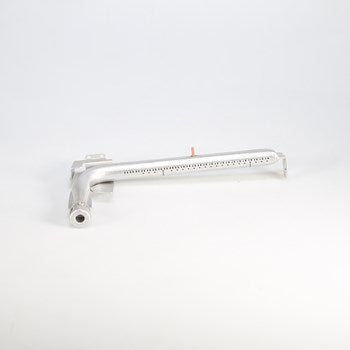

Whirlpool Range Oven burner (bake burner/burner tube) W11174122

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Oven temperature is inaccurate
• Oven bakes unevenly
• Weak or irregular bake flame
• Oven fails to heat when the bake cycle is selected
• Visible corrosion, deformation, or damage to the burner tube

Check Before Replacing

• With the gas supply shut off and the range disconnected from electrical power, visually inspect the bake burner for corrosion, deformation, blockage, or physical damage.
• If the burner can be observed during operation, compare its flame behavior with the appliance service instructions; do not attempt to adjust gas components.
• Confirm that the suspected component is the bake burner tube rather than the separate bake igniter or gas valve.
• Verify the appliance model and the part number before ordering or installing a replacement.

Pro Tip

Part Details

Installation Notes

• Shut off the gas supply and disconnect electrical power before servicing.
• Wear work gloves and follow the appliance-specific service or installation instructions.
• Ensure the replacement burner is seated correctly and that its fasteners and burner-to-gas connection are secure.
• After installation, follow the manufacturer’s procedure for testing the bake burner and checking gas connections for leaks; if qualified procedures are unavailable, use a trained appliance technician.

Verified Compatible Models

GGG388LXB04, IGS900DS01, GGG388LXQ03, GGG388LXQ01, IGS900DS05, GGG390LXB00, GGG388LXQ05, GGG390LXB02, GGG390LXQ02, GGG390LXB04, GGG390LXQ00, GGG390LXS01, GGG390LXQ04, GGG390LXS03, GGG390LXS05

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
