Refrigerator Not Sealing? Door Mullion Rail W11177238 – Fix Air Leaks & Warm Fridge Fast

If your French door refrigerator is running warm, frosting unevenly, or the center doors won't stay sealed, the door mullion rail is the most common culprit. In most Whirlpool, KitchenAid, and JennAir French door refrigerators, the center divider rail creates the airtight barrier between the two doors. When it fails, cold air escapes continuously — causing the compressor to overwork, temperatures to rise, and food spoilage to accelerate. ⚡ Common failure point in Whirlpool-platform French door refrigerators. Part W11177238 is the genuine OEM replacement that restores a proper center seal and returns your refrigerator to factory performance.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ QUALIFIER 1 — refrigerator powers on and compressor runs normally
• ✔ QUALIFIER 2 — freezer section is cooling correctly
• ✔ QUALIFIER 3 — door gaskets and hinges are intact and undamaged
• ✔ ONLY problem is air leaking from the center door junction or doors not sealing flush

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Refrigerator section running warmer than set temperature
• Visible gap or misalignment where the two French doors meet at center
• Frost or condensation buildup along the center door edge
• Compressor running constantly or cycling more frequently than normal

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this door mullion rail restores a proper center seal and normal operating temperatures immediately.

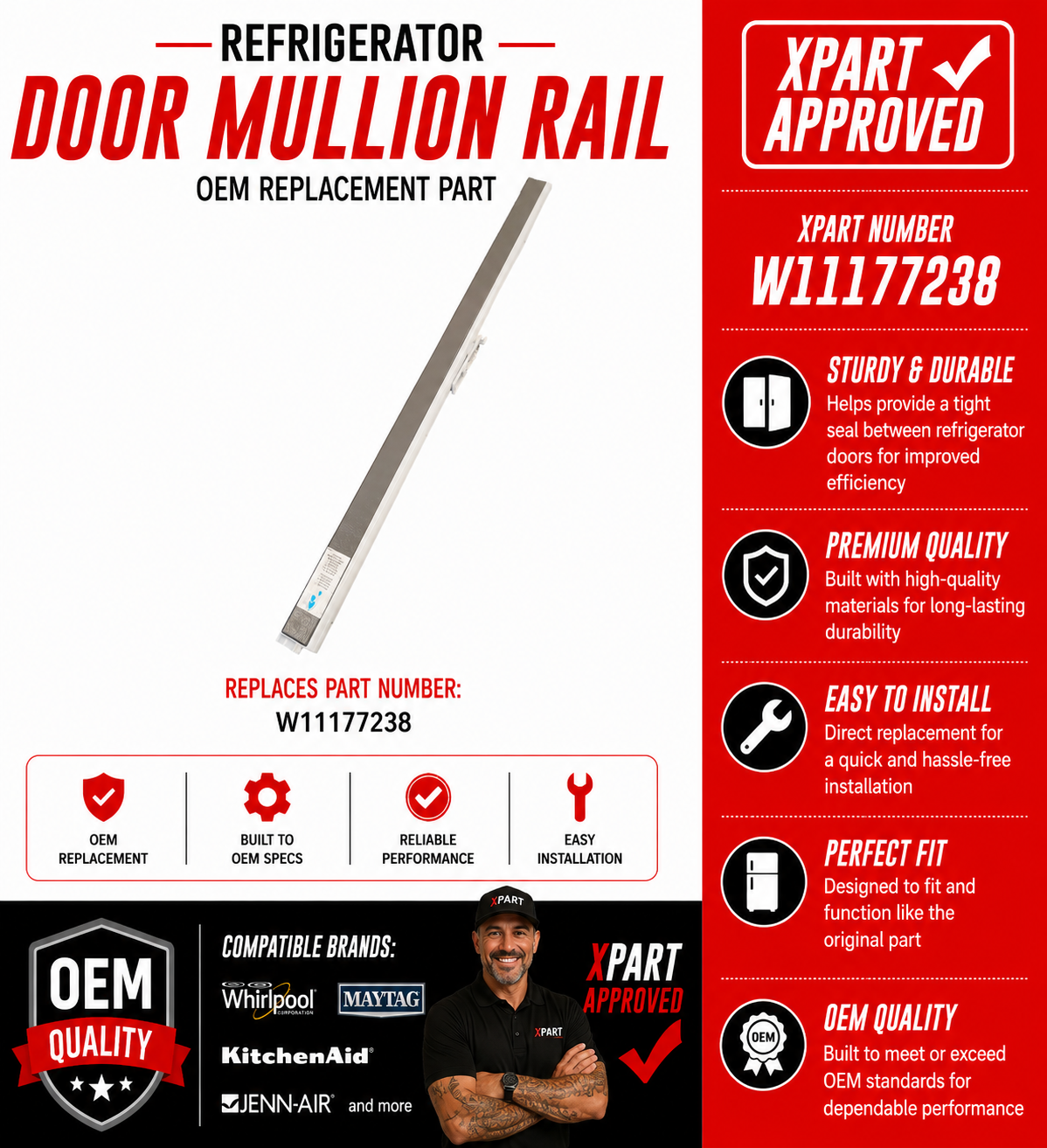

📦 Part Details

• Part Number: W11177238
• Type: French Door Refrigerator Center Mullion / Divider Rail
• Replaces: W10153704, W11128563, WPW10153704
• Brands: Whirlpool, KitchenAid, JennAir

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Remove the existing mullion rail by releasing the retaining clips along the center door frame, disconnect any wiring harness if present, then reverse the process to seat the new W11177238 rail until all clips engage. Verify both doors close flush and the center seal compresses evenly before restoring power.

✓ Compatible Models

Confirmed compatible with JFC2290REM00, JFC2290REP00, KRFC302ESS00, KRFC302ESS02, KRFC302EBS00, KRFC302EBL00, KRFC302EWH00, KFCS22EVMS00, KFCS22EVBL00, KFCS22EVWH00, KFCP22EXMP1, JFFCF72DKL00, 59679553010, 59679553011 plus additional Whirlpool, KitchenAid, and JennAir French door models. Contact us to verify your model number before ordering.

💡 Pro Tip
