Whirlpool Refrigerator Drawer Slide Rail End Cap Kit W11197396, Replaces W10166677, WPW10166677, W10165883, 13047701, 13047801

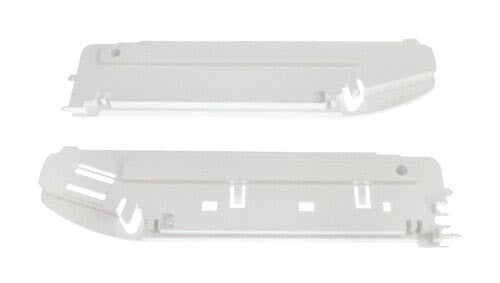

Genuine Whirlpool refrigerator drawer-support/end-cap kit containing one left and one right end cap for the drawer slide rails.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Drawer does not slide smoothly or stays aligned
• Drawer or pantry assembly becomes difficult to open or close
• Drawer lid or hinge peg is no longer supported because an end-cap tab is broken
• Visible cracked, broken, or missing drawer-slide end cap

Check Before Replacing

• With the refrigerator drawer unloaded, gently slide it out and observe whether the rail ends remain seated and aligned.
• Visually inspect both end caps for cracks, missing sections, broken hinge pegs, or tabs that no longer retain the drawer or lid.
• Check that the drawer and slide rails are correctly seated in their supports and that no food, packaging, or debris is obstructing the rail path.
• Compare the left and right end-cap assemblies for obvious damage or missing components before ordering a replacement.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM component
• Kit includes one left and one right drawer-support/end-cap piece
• Designed for refrigerator drawer slide-rail assemblies
• Supports drawer alignment and rail retention
• May include the molded hinge pegs or tabs used by the drawer or lid, depending on the appliance configuration

Installation Notes

• Unload and remove the affected refrigerator drawers and any shelf or glass support that blocks access, following the appliance manual for the specific model.
• Handle glass shelves carefully and set removed components in a safe location.
• Transfer only the original components that are not included in the kit, such as applicable airflow-control pieces or gaskets, while taking care not to damage molded snap or pivot points.
• Reinstall the end-cap assembly and slide rail in the same orientation as the original, then confirm the drawer moves freely and remains on track before returning food to the refrigerator.
• Wear protective gloves when handling the drawer-support/end-cap assembly.

Verified Compatible Models

10672002011, 10672002013, 10672002015, 10672003010, 10672003011, 10672003012, 10672003013, 10672003014, 10672003016, 10672003017, 10672003018, 10672009010, 10672009011, 10672009013, 10672009015, 596379243017, 59672002013, 59672002015, 59672003012, 59672003013, 59672003014, 59672003016, 59672003017, 59672003018, 59672009013, 59672009015, 59678282800, 59678282802, 59678282803, 59678282900, 59678282902, 59678282903, 59678283800, 59678283802, 59678283803, 59678283804, 59678283900, 59678283902, 59678283903, 59678289800, 59678289802, 59678289803, 59678289804, 59678289900, 59678332800, 59678332801, 59678332802, 59678333800, 59678333801, 59678333802, 59678333803, 59678339800, 59678339801, 59678339802, 59678339803, 59679212010, 59679212012, 59679212013, 59679213010, 59679213013, 59679213014, 59679219010, 59679219011, 59679219012, 59679219013, 59679222012, 59679222013, 59679222014, 59679223012, 59679223013, 59679223014, 59679223015, 59679229012, 59679229013, 59679229014, 59679242010, 59679242011, 59679242012, 59679242013, 59679242015, 59679242016, 59679242017, 59679243010, 59679243011, 59679243012, 59679243013, 59679243014, 59679243016, 59679243017, 59679243018, 59679249010, 59679249011, 59679249012, 59679249013, 59679249015, 59679249016, 59679249017, 59679322011, 59679322013, 59679322015, 59679323012, 59679323014, 59679323016, 59679329011, 59679329013, 59679329015, 59679412410, 59679412411, 59679413410, 59679413411, 59679419410, 59679419411, 59679422410, 59679422411, 59679423410, 59679423411, AFB2234WEB0, AFB2234WEB10, AFB2234WEB2, AFB2234WEB3, AFB2234WEB4, AFB2234WES0, AFB2234WES10, AFB2234WES2, AFB2234WES3, AFB2234WES4, AFB2234WES5, AFB2234WES6, AFB2234WEW0, AFB2234WEW10, AFB2234WEW2, AFB2234WEW3, KBFS22ECBL00, KBFS22ECMS00, KBFS22ECWH00, KBFS22EWBL1, KBFS22EWBL2, KBFS22EWBL3, KBFS22EWBL5, KBFS22EWBL7, KBFS22EWMS1, KBFS22EWMS3, KBFS22EWMS4, KBFS22EWMS5, KBFS22EWMS7, KBFS22EWMS9, KBFS22EWWH1, KBFS22EWWH2, KBFS22EWWH3, KBFS22EWWH5, KBFS22EWWH7, KRFF302EBL00, KRFF302EBL01, KRFF302EBS00, KRFF302ESS00, KRFF302ESS01, KRFF302EWH00, KRFF302EWH01, MFF2258DEE00, MFF2258DEE01, MFF2258DEH00, MFF2258DEH01, MFF2258DEM00, MFF2258DEM01, MFF2258FEZ00, MFF2258FEZ01, MFF2258VEA10, MFF2258VEA2, MFF2258VEB2, MFF2258VEB3, MFF2258VEB4, MFF2258VEB5, MFF2258VEB6, MFF2258VEB7, MFF2258VEB8, MFF2258VEM10, MFF2258VEM2, MFF2258VEM3, MFF2258VEM4, MFF2258VEM5, MFF2258VEM6, MFF2258VEM7, MFF2258VEM8, MFF2258VEM9, MFF2258VEW10, MFF2258VEW2, MFF2258VEW3, MFF2258VEW4, MFF2258VEW5, MFF2258VEW6, MFF2258VEW7, MFI2266AEB10, MFI2266AEB11, MFI2266AEQ10, MFI2266AEQ11, MFI2266AES10, MFI2266AES11, MFI2266AEU10, MFI2266AEU11, MFI2266AEW10, MFI2266AEW11, MFI2269DRE00, MFI2269DRE01, MFI2269DRH00, MFI2269DRH01, MFI2269DRM00, MFI2269DRM01, MFI2269FRB00, MFI2269FRE00, MFI2269FRE01, MFI2269FRH00, MFI2269FRH01, MFI2269FRW00, MFI2269FRZ00, MFI2269FRZ01, MFI2269FRZ02, MFI2269VEA1, MFI2269VEA10, MFI2269VEB1, MFI2269VEB10, MFI2269VEB2, MFI2269VEB3, MFI2269VEB4, MFI2269VEB5, MFI2269VEB6, MFI2269VEB7, MFI2269VEB8, MFI2269VEB9, MFI2269VEM1, MFI2269VEM10, MFI2269VEM11, MFI2269VEM2, MFI2269VEM3, MFI2269VEM4, MFI2269VEM5, MFI2269VEM6, MFI2269VEM7, MFI2269VEM8, MFI2269VEM9, MFI2269VEQ1, MFI2269VEQ10, MFI2269VEQ2, MFI2269VEQ3, MFI2269VEQ4, MFI2269VEQ5, MFI2269VEQ7, MFI2269VEQ8, MFI2269VEW1, MFI2269VEW10, MFI2269VEW2, MFI2269VEW3, MFI2269VEW4, MFI2269VEW5, MFI2269VEW7, MFI2269VEW8, WRF532SMBB00, WRF532SMBB01, WRF532SMBM00, WRF532SMBM01, WRF532SMBW00, WRF532SMBW01, WRF532SMHB00, WRF532SMHV00, WRF532SMHW00, WRF532SMHZ00, WRF532SNBB00, WRF532SNBB01, WRF532SNBM00, WRF532SNBM01, WRF532SNBW00, WRF532SNBW01, WRF532SNHV00, WRF532SNHW00, WRF532SNHZ00, WRFA32SMHN00, WRFA32SMHZ00, 596.72002011

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
