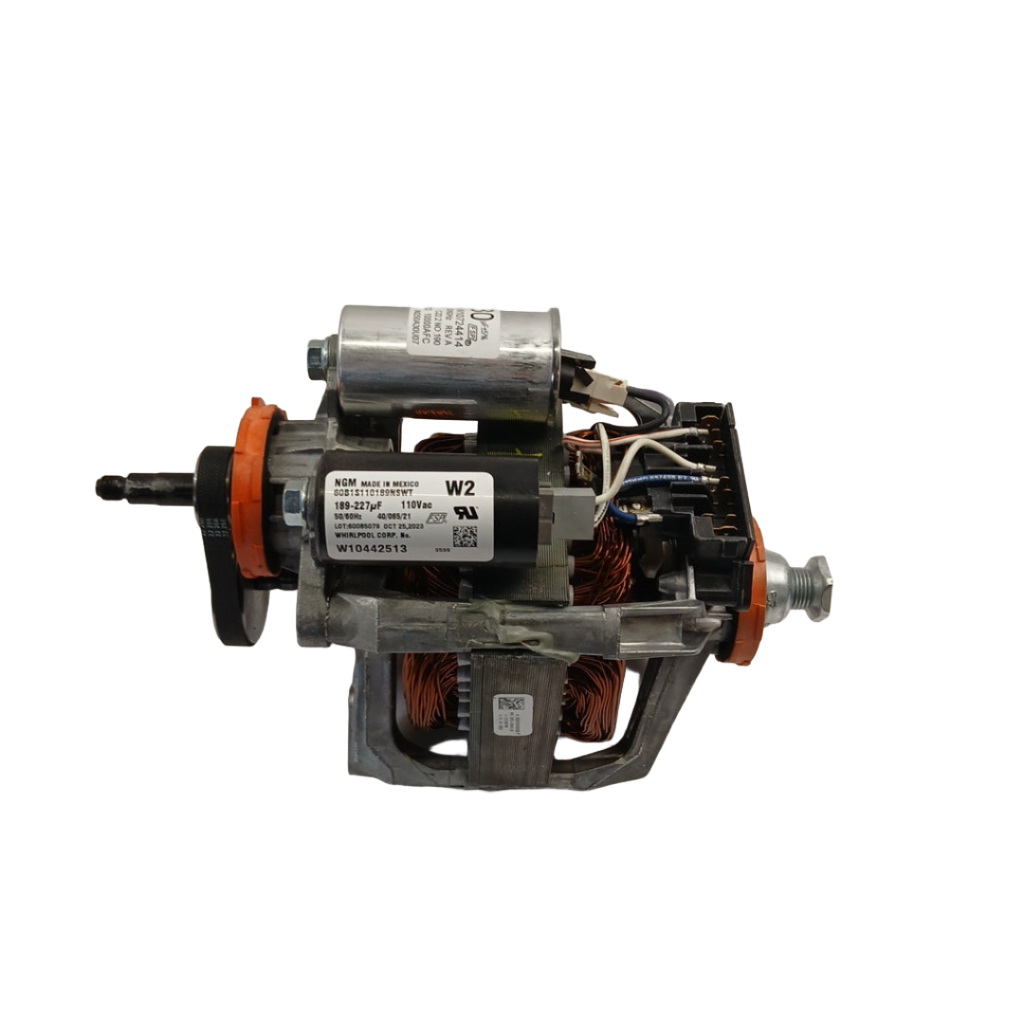

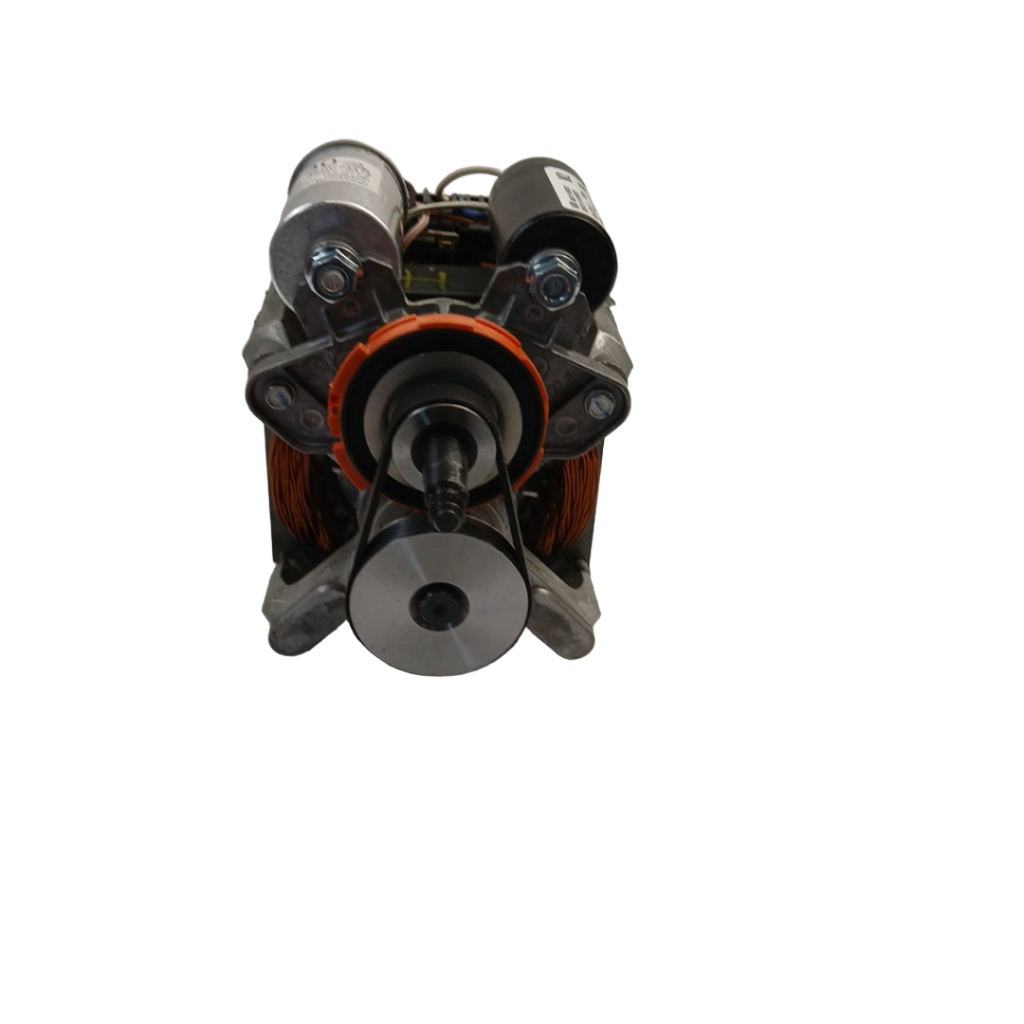

Whirlpool Dryer Drive Motor Assembly (MOTOR-DRVE) W11209428, Replaces W10651995

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dryer will not start or tumble
• Motor hums but the drum does not spin
• Unusual motor or drive-area noise

Check Before Replacing

• Disconnect power before inspection or service.
• Confirm the dryer model and existing motor markings match W11209428 before ordering.
• With power disconnected, check whether the drum can be rotated by hand and observe whether the belt and drum move together; do not force the drum.
• Inspect the visible belt path and motor area for obvious belt separation, obstruction, or accumulated lint before condemning the motor.
• If electrical testing is required, use the exact model's service documentation and qualified procedures; these symptoms can also result from other dryer components.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power before installation.
• Wear work gloves when handling the motor and internal dryer components.
• Follow the service instructions for the exact dryer model; motor access and wiring can vary by model.
• Confirm the replacement assembly, connectors, belt routing, and included components against the removed part before final reassembly.

Verified Compatible Models

WED99HEDC0, WED99HEDW0, WED7990FW0, WED9290FC0, WED9290FW0, WHD560CHW0, WHD560CHW1, WHD560CHW2, WHD862CHC0, WHD862CHC1, WHD862CHC2, YWED99HEDC0, YWED7990FW0, YWED9290FC0, YWED9290FW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
