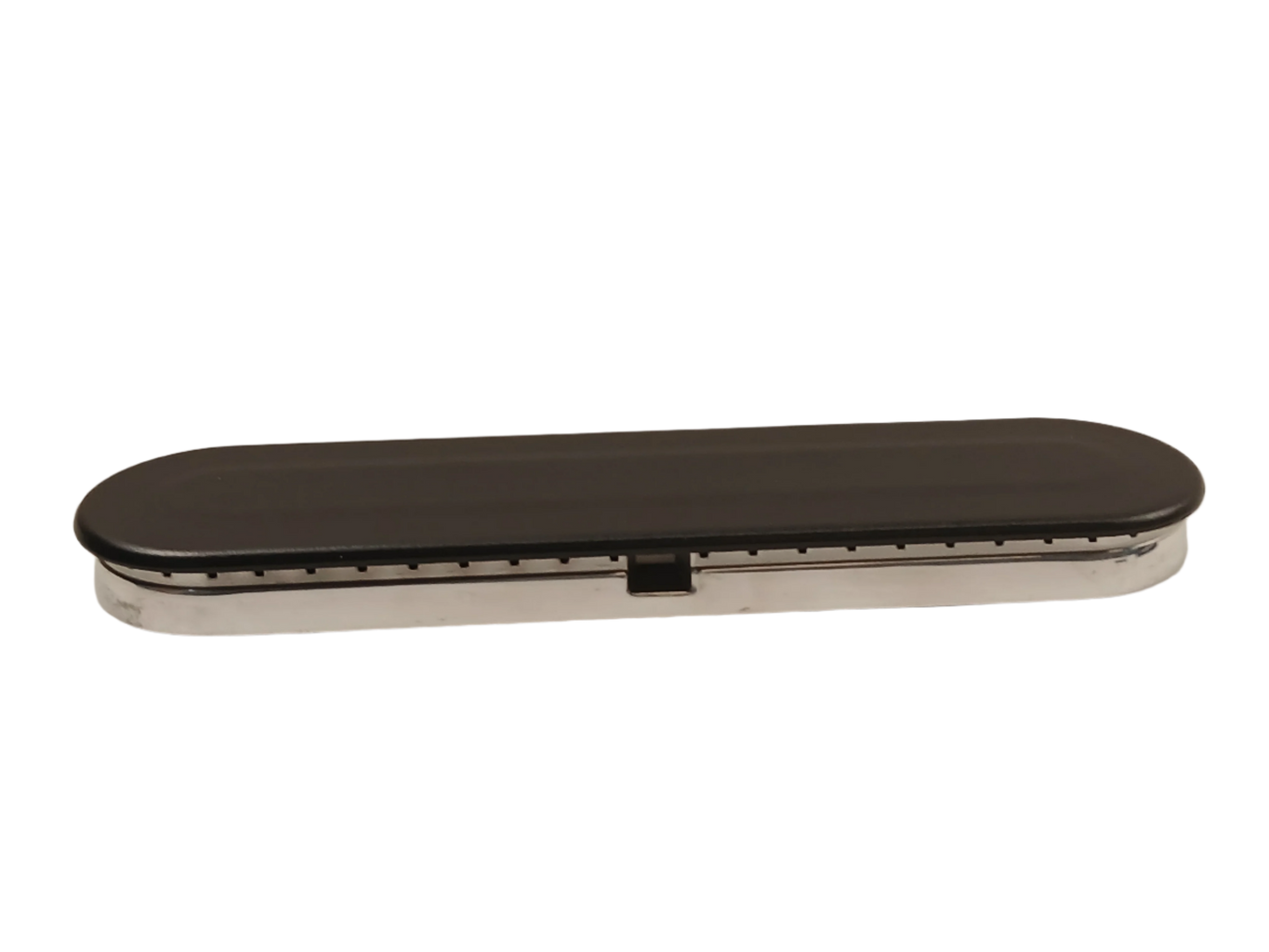

Whirlpool Range Surface burner head kit W11245289, Replaces W10863722, W10867781, W10875937, W11121925, W11121931, W11121966, W11232858

Genuine Whirlpool surface burner head kit/assembly for gas ranges. It distributes gas through burner openings to create an even flame across the cooking surface.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Uneven flame around the burner
• Poor ignition or delayed lighting
• Flame missing at some burner ports
• Low, flickering, yellow, or noisy flame when burner ports or the burner head area are obstructed, contaminated, or incorrectly positioned
• Reduced or uneven heat distribution across the burner

Check Before Replacing

• Turn all controls off and allow the cooktop to cool before inspection.
• Verify that the burner head/base and cap are the correct parts for that burner and sit flush without rocking or excessive side-to-side movement.
• Inspect the burner ports for food, grease, or other blockage; clean clogged ports carefully with a straight pin, needle, or small-gauge wire without enlarging or distorting the openings.
• Inspect and clean the gas-tube opening beneath the burner assembly with a damp cloth, keeping spills and cleaning agents out of the opening.
• After reassembly, confirm that the gas-tube opening aligns with the orifice holder and that the igniter aligns with the burner-head notch, where applicable.
• If the burner still fails to light, or if the flame remains abnormal after cleaning and correct positioning, stop and have the range evaluated by a trained appliance or gas-service professional.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM surface burner head kit
• Manufacturer part number W11245289
• Designed for gas range surface-burner assemblies

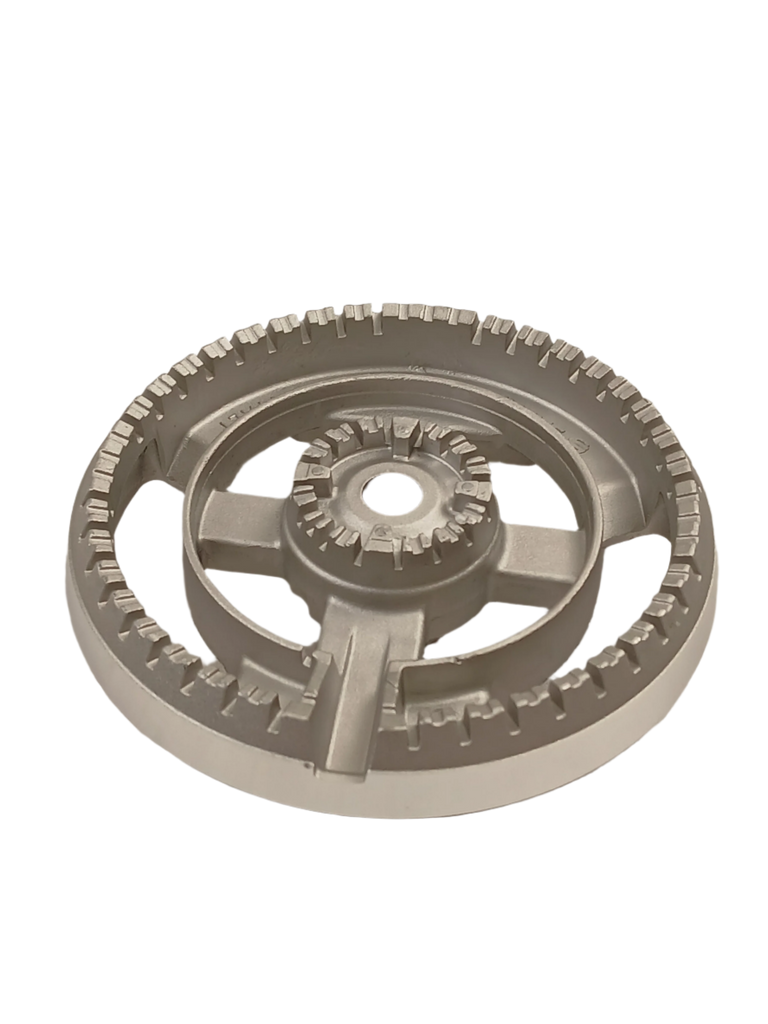

• Burner-head ports distribute gas across the cooking surface
• Replaces archived Whirlpool numbers W10863722, W10867781, W10875937, W11121925, W11121931, W11121966, and W11232858

Installation Notes

• Shut off the gas supply and unplug the range before installation.
• Allow the cooktop to cool and wear work gloves when handling the burner assembly.
• Install the burner head/base in the correct burner position and align its gas-tube opening with the orifice holder.
• Align the igniter electrode with the burner-head notch where the appliance design requires it.

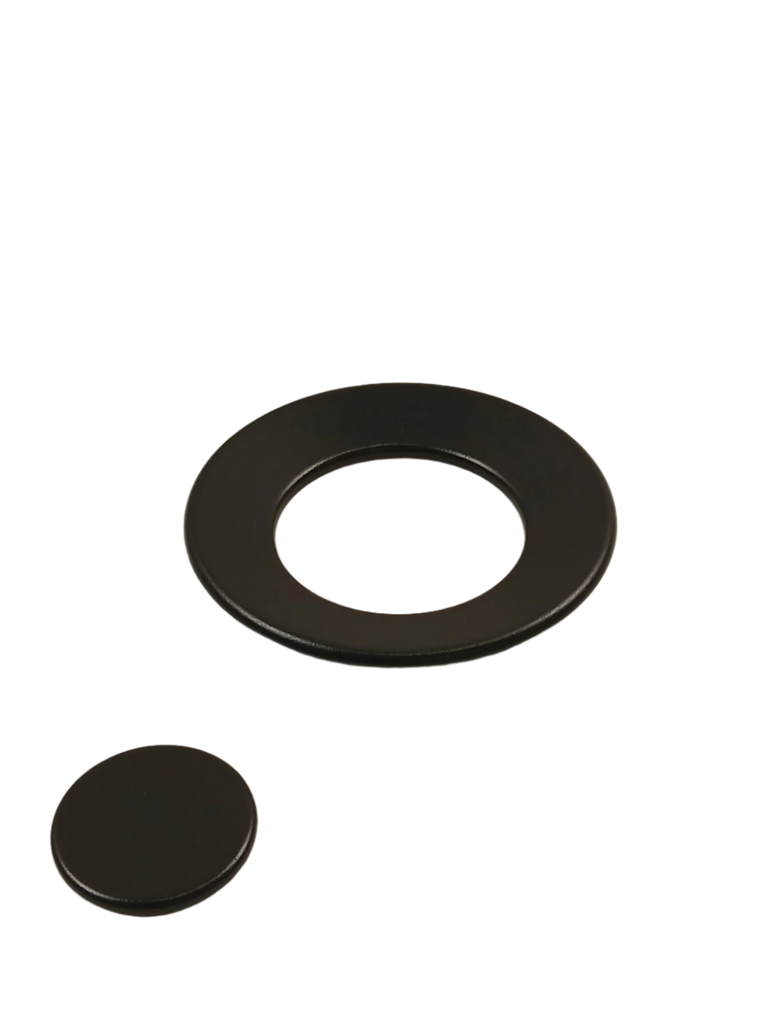

• Install the correct burner cap and verify that it is level, seated flush, and does not rock or wobble.
• Do not operate the range if the burner produces an unsafe abnormal flame or if the burner assembly cannot be positioned correctly.

Verified Compatible Models

WEG750H0HB0, WEG750H0HB6, WEG750H0HB7, WEG750H0HV0, WEG750H0HV1, WEG750H0HV6, WEG750H0HV7, WEG750H0HW0, WEG750H0HW2, WEG750H0HW6, WEG750H0HW7, WEG750H0HZ0, WEG750H0HZ1, WEG750H0HZ2, WEG750H0HZ6

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
