Dishwasher Door Sagging, Dropping, or Won’t Stay Open? Door Hinge W11323124 – Fix Left Hinge Fast

A dishwasher door that drops suddenly, won’t stay open at a comfortable angle, or feels loose on the left side has a failed door hinge. In most KitchenAid and JennAir dishwashers, this is caused by a cracked, bent, or worn left door hinge assembly. When it fails, the door loses its controlled descent — dropping hard when opened, creating a safety hazard, and putting stress on the door latch, tub, and wiring harness with every cycle. ⚡ Common failure point in KitchenAid and JennAir dishwashers after years of daily open/close cycles. Part W11323124 is the genuine OEM left door hinge that restores smooth, controlled door movement immediately upon installation — direct drop-in, no modifications required.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Dishwasher powers on and runs cycles normally
• ✔ Door latch and door springs have been confirmed functional
• ✔ The problem is specifically on the left side of the door
• ✔ Hinge is visibly cracked, bent, or the door drops without resistance
• ✔ ONLY problem is door sagging, dropping hard, or not staying open at the correct angle

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Dishwasher door drops suddenly when opened — most common complaint
• Door won’t stay open at a comfortable loading angle
• Left side of the door feels loose or has visible play
• Door makes a clunking or snapping sound when opened or closed
• Hinge visibly cracked, bent, or separated from the mounting point
• Door seal leaking on the left side due to hinge misalignment

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this door hinge restores smooth, controlled door operation immediately.

📦 Part Details

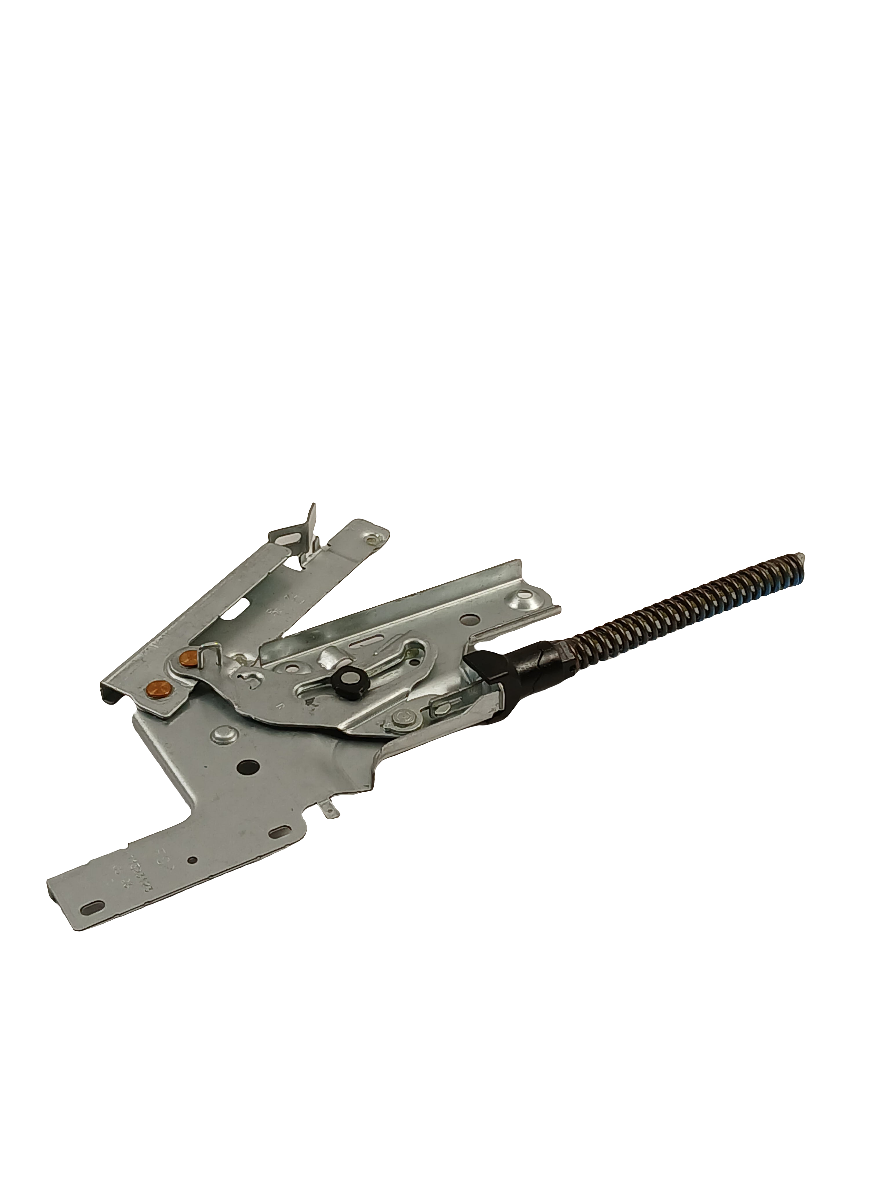

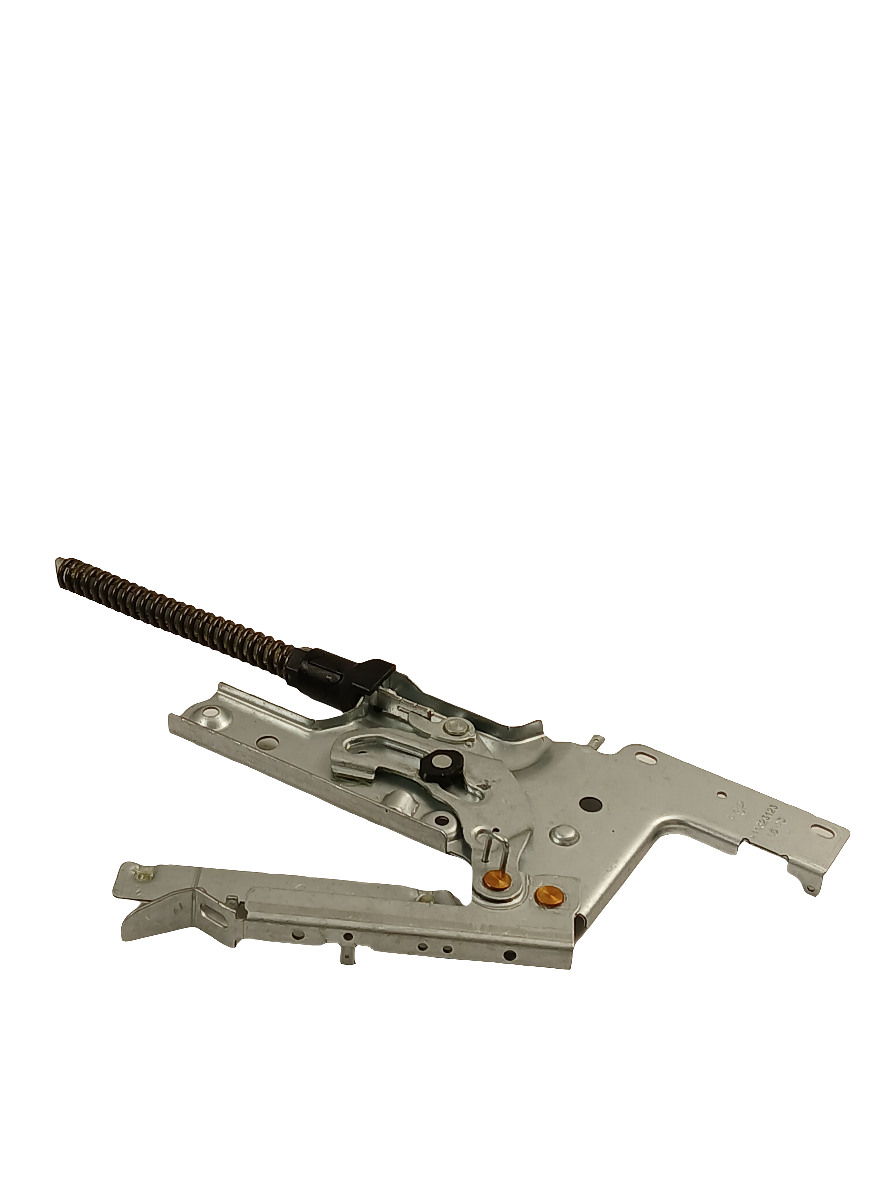

• Part Number: W11323124
• Type: Dishwasher left door hinge assembly — OEM direct fit
• Replaces: OEM direct-fit left door hinge — no modification required
• Brands: KitchenAid, JennAir (Whirlpool-built models)

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power to the dishwasher before beginning. Open the door fully and remove the inner door panel to access the hinge mounting screws. Disconnect the hinge from the door and tub frame, position the new W11323124, and secure the mounting hardware firmly. Reassemble the inner door panel, restore power, and open/close the door several times to confirm smooth, controlled movement before running a cycle.

✓ Compatible Models

Confirmed compatible with select KitchenAid and JennAir dishwasher models. Contact us to verify your model number before ordering.

Browse related model and parts hubs: JDPSS244LM0, JDPSS244LM1, JDPSS244LM2, JDPSS244PM0, JDPSS245LX0, JDPSS246LM0, JDPSS246LM1, KDTM704LPA1, KitchenAid Dishwasher Parts, JennAir Dishwasher Parts.
