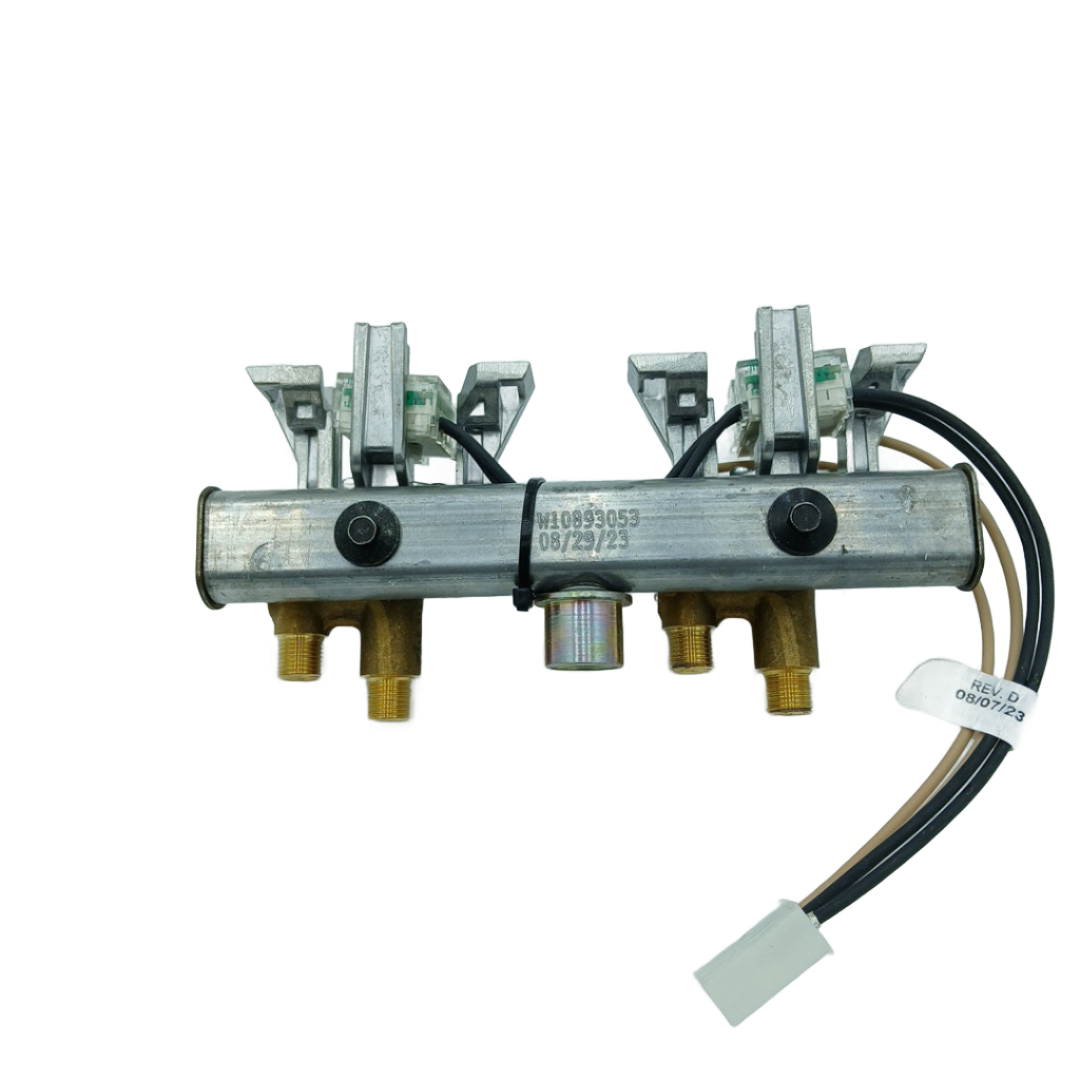

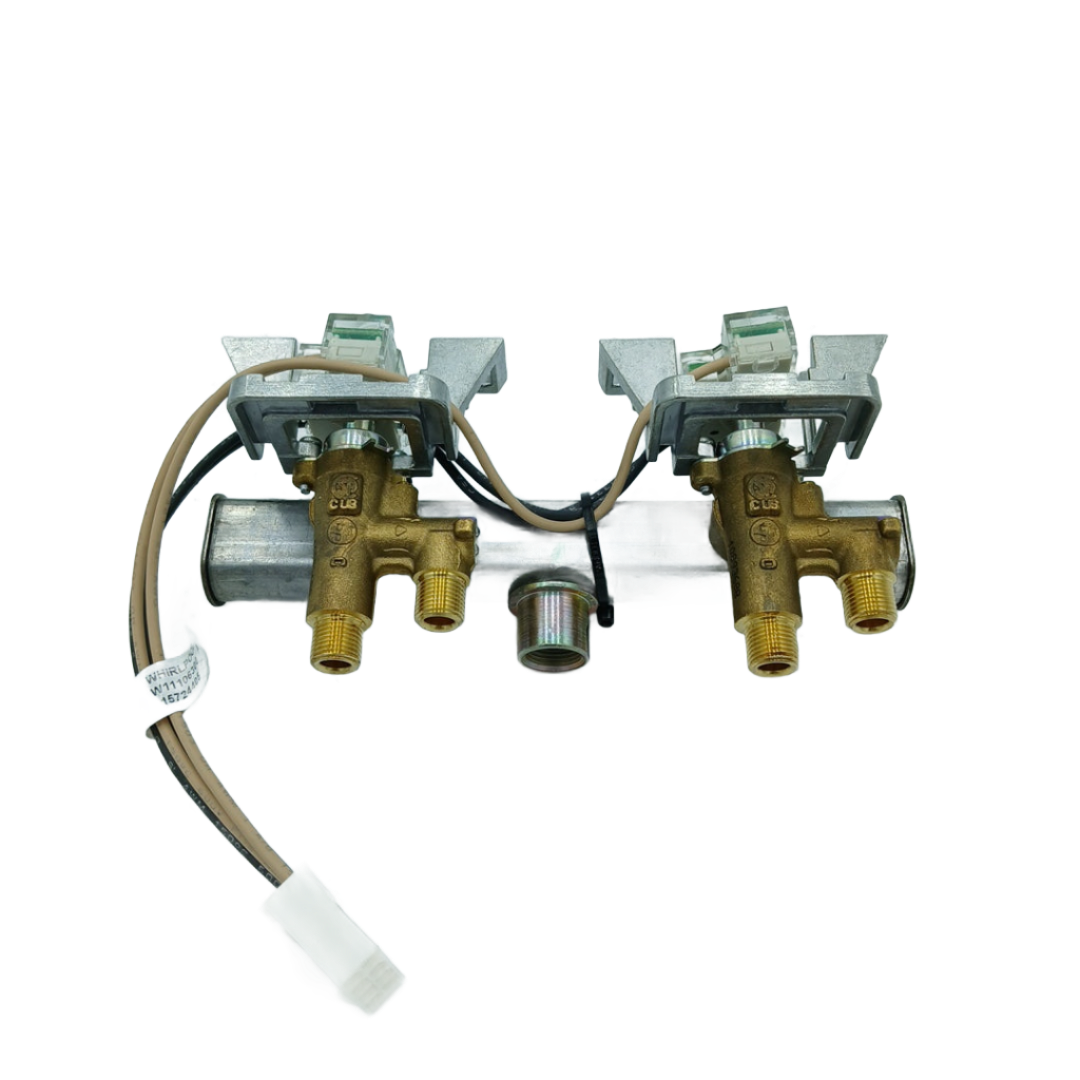

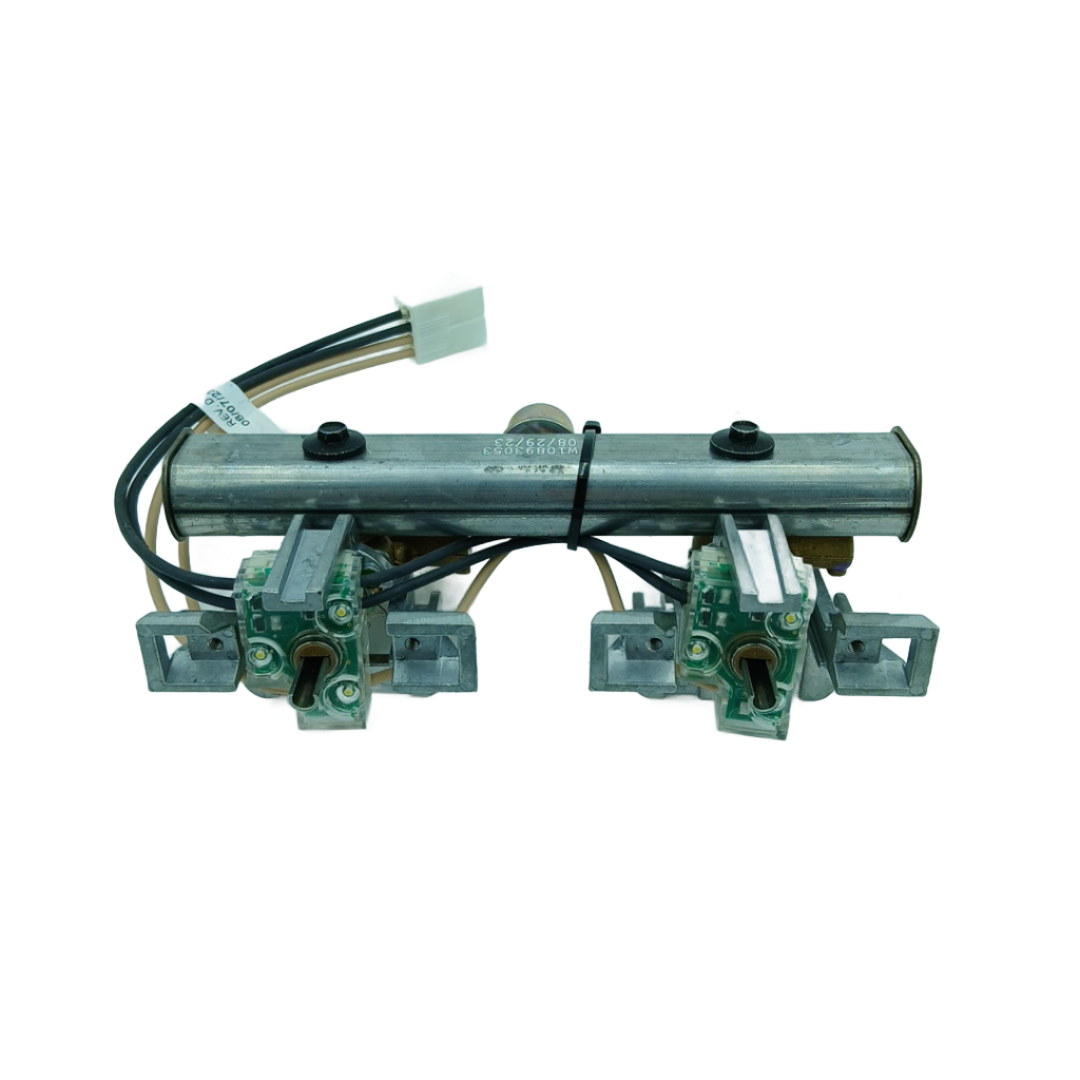

Whirlpool Range / gas cooktop Range manifold / surface burner valve assembly W11333175, Replaces W10893053

XPart Number XP10032491
$381.99
$431.64
Available by special order
Buying Options: OEM Genuine

Product variant with selected options does not exist!

Frequently Bought Together

Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →
A SURFACE BURNER MAY FAIL TO REGULATE OR RECEIVE GAS CORRECTLY

Whirlpool Range / gas cooktop Range manifold / surface burner valve assembly W11333175, Fixes A surface burner may fail to regulate or receive gas correctly

Genuine Whirlpool manifold assembly that distributes gas to the surface burners through the burner valves.

Part W11333175Replaces W10893053Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part NumberW11333175
ReplacesW10893053
ManufacturerWhirlpool
Appliance TypeRange / gas cooktop
Part TypeRange manifold / surface burner valve assembly

✅ Cross Reference Information

Current Part NumberW11333175
ReplacesW10893053

Common Symptoms

  • One or more surface burners have incorrect or inconsistent gas flow
  • A burner valve does not properly control the flame
  • Gas-flow problems affecting connected surface burners

Check Before Replacing

  • Verify the appliance model number before ordering because this manifold is limited to select Jenn-Air models.
  • With the gas supply shut off, inspect the manifold and connected valve assembly for visible damage or leakage indicators.
  • If a burner-control problem is suspected, compare the affected valve position and gas-flow behavior with the appliance service documentation.

Pro Tip

W11333175 replaces the older OEM number W10893053; verify the complete appliance model and revision before purchase.

Part Details

Part NumberW11333175
Part TypeRange manifold / surface burner valve assembly
ManufacturerWhirlpool
Appliance TypeRange / gas cooktop
Primary FunctionDirects gas from the supply line to the surface burners and controls burner gas flow through the connected valves.

Installation Notes

  • Shut off the gas supply and disconnect electrical power before servicing the appliance.
  • Gas-system service should be performed by a qualified technician and checked for leaks after installation.
  • Confirm the appliance model number and fuel configuration before installation.

Verified Compatible Models

JDRP536HL00, JDRP536HM00, JGRP636HL00, JGRP636HM00, JGRP536HL00, JGRP536HM00, JDSP536HL00, JDSP536HM00, JDRP636HL00, JDRP636HM00, JGCP548HL00, JGCP548HM00, JGCP536HL00, JGCP536HM00, JGCP436HL00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
