Whirlpool Over Range Microwave Magnetron W11346197
Whirlpool Over Range Microwave Magnetron W11346197

Whirlpool Over Range Microwave Magnetron W11346197

Sale price
$99.95
Regular price
$310.20
You save
$210.25 (68%)
Buying Option : Used

Product variant with selected options does not exist!

Frequently Bought Together

Confirm This Fits Your Model
Not sure where to find your model number? See guide →
Genuine OEM Replacement Part

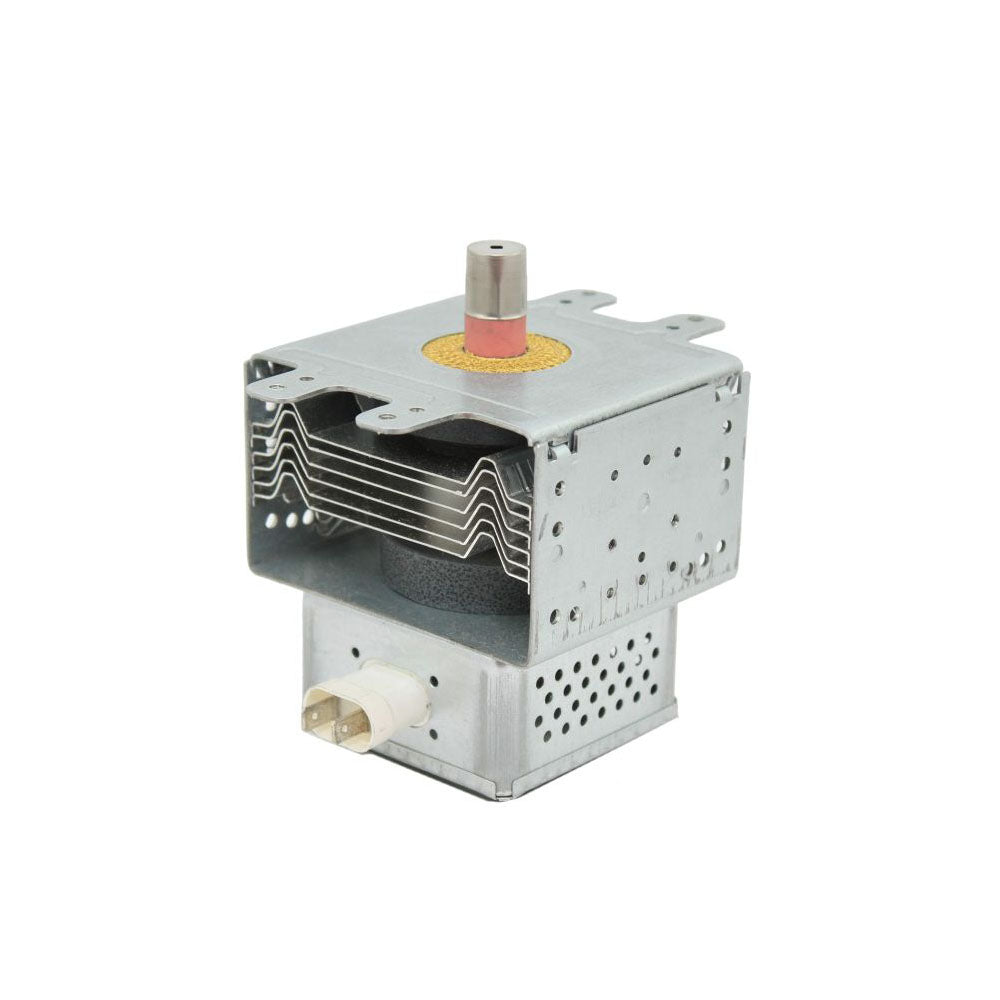

W11346197 Whirlpool Over Range Microwave Magnetron – Fix No Heat, Sparking & Weak Power

Replaces W10120113 Replaces W11098747, W11226473 Whirlpool, KitchenAid, Maytag, Jenn-Air

Is This the Part You Need?

If your over-range microwave runs but produces no heat, heats unevenly, sparks inside the cavity, makes a loud buzzing noise, or has significantly reduced power output, the magnetron is the most likely cause. The magnetron is the core component that generates microwave energy to heat food. When it fails, the microwave may appear to run normally — turntable spins, light works, timer counts down — but no heat is produced. The W11346197 is the genuine OEM magnetron for Whirlpool, KitchenAid, Maytag, and Jenn-Air over-range microwaves, directly replacing W10120113, W11098747, and W11226473.

⚠️ Pro tip: Before replacing the magnetron, test the door interlock switches and the high-voltage diode — both can cause identical no-heat symptoms and are far cheaper to replace. If the diode tests shorted and the magnetron tests open, replace both at the same time. Always discharge the high-voltage capacitor before servicing — it can hold a lethal charge even when unplugged.

Symptoms of a Failed Microwave Magnetron

  • Microwave runs but produces no heat
  • Food is cold or barely warm after a full cycle
  • Sparking or arcing inside the microwave cavity
  • Loud buzzing or humming noise during operation
  • Burning smell coming from the microwave
  • Microwave trips the breaker or shuts off mid-cycle
  • Microwave heats unevenly or at reduced power

Part Numbers

  • Part Number: W11346197
  • Replaces: W10120113, W11098747, W11226473, 461967847321

Compatible Brands

Whirlpool, KitchenAid, Maytag, Jenn-Air

Installation Notes

Difficulty: Advanced — high-voltage components present. Always unplug the microwave and discharge the high-voltage capacitor before servicing. The magnetron is located behind the outer cabinet panel. Disconnect the antenna lead and high-voltage wiring harness, remove the mounting screws, and swap in the new magnetron. Reconnect in reverse order. If you are not comfortable working with high-voltage appliances, contact a qualified technician.

Why Order From XPart Supply?

  • In stock for same-day shipping when ordered before 4PM
  • Genuine OEM parts from trusted suppliers
  • Fast fulfillment across Canada and the US
  • Expert support — contact us to confirm compatibility
