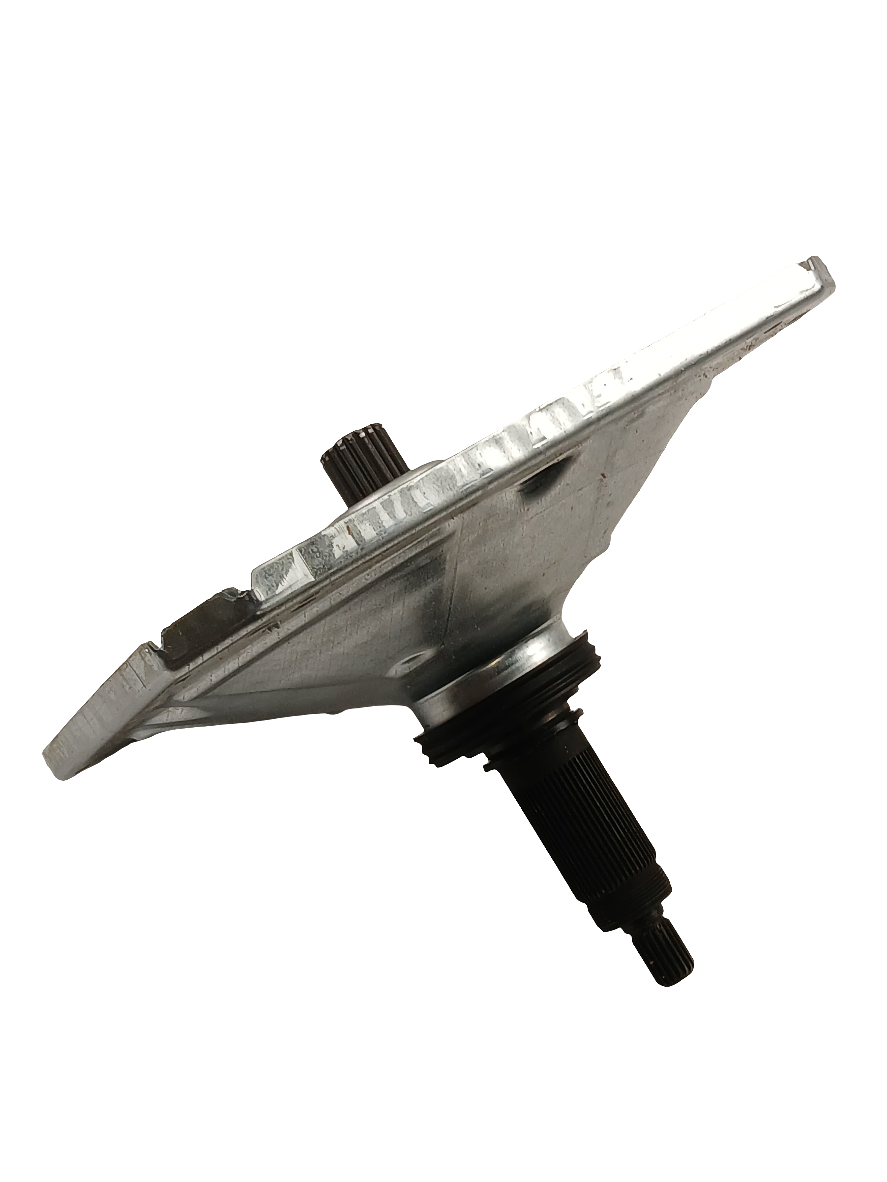

Whirlpool Washer Transmission Assembly W11393685 — Stops Agitating or Spinning

W11393685 Washer Transmission Assembly (replaces W11455453)

Whirlpool Washer Transmission Assembly W11393685 — Stops Agitating or Spinning

Sale price: $387.69
Regular price: $429.99
You save: $42.30 (10%)

Frequently Bought Together

Washer Not Agitating or Spinning? Transmission Assembly W11393685 – Fix Drive Failure Fast

A failed transmission is the #1 reason a top-load Whirlpool or Maytag washer stops agitating or spinning mid-cycle. In most Whirlpool and Maytag top-load washers, the transmission converts motor torque into the agitate and spin motions. When it fails, the drum may fill and drain normally but clothes come out soaking wet — or the basket won't move at all. ⚡ Common failure point in Whirlpool-built top-load washers. Part W11393685 is the genuine OEM replacement that restores full agitation and spin performance immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

✔ Washer powers on and fills with water normally
✔ Drain and pump functions work correctly
✔ Motor runs (you can hear it hum) but drum does not move
✔ ONLY problem is no agitation and/or no spin

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

Washer agitates weakly or not at all
Drum spins slowly or fails to reach full spin speed
Clothes are soaking wet after the cycle completes
Loud grinding or clunking noise during agitation or spin

✔ If these symptoms match, this is the most likely failed component in the drive system.

✔ In most cases, replacing this transmission assembly restores normal agitation and spin immediately.

📦 Part Details

Part Number: W11393685
Type: OEM Washer Transmission Assembly — top-load direct-drive
Replaces: W10447976, W10811956, W10868473, W11134159, W11393686, W11455453
Brands: Whirlpool, Maytag, Amana

⚠️ Recommended While Repairing:
While the washer is disassembled, inspect the drive belt and motor coupling — these wear together with the transmission and often fail around the same time. Replacing them now avoids a second service call.

⚙️ Installation

Skill Level: ADVANCED — 60–90 minutes. Disconnect power before servicing. Remove the cabinet, disconnect the drive motor and pump, then unbolt the transmission from the basket drive. Reverse to install. A transmission spanner wrench is recommended for the basket nut.

✓ Compatible Models

Confirmed compatible with WTW8500DW, WTW8000DW, MVWB835DW, MVWB855DW, MVWB865GW, WTW7000DW, WTW7300DW, WTW7500GW, WTW8040DW, WTW8500DC, WTW8500DR, MVWB765FW, MVWB766FW, MVWB755DW, 7MWTW8500EC, 7MWTW7000EW, 7MMVWB855EC plus additional Whirlpool and Maytag models. Contact us to verify your model number before ordering.

✓ Model-Specific Repair Pages

💡 Pro Tip

Order the Bearing Kit at the Same Time:
The tub bearing and seal sit directly above the transmission and are exposed during this repair. If your washer is 5+ years old, replacing the bearing kit (W10435302) while you have the machine apart saves 45 minutes of labour on a repair that's almost certain to be needed within the next year.

✓ Model-Specific Repair Pages

Whirlpool MVWB765FC4 Washer Parts & Repair Guide Whirlpool MVWB765FC3 Washer Parts & Repair Guide Whirlpool MVWB765FC2 Washer Parts & Repair Guide Whirlpool MVWB765FC1 Washer Parts & Repair Guide GE WASHER Refrigerator Parts & Repair Guide

✅Compatibility & Cross Reference

Part number W11393685 replaces W10447976, W10811956, W10868473, W11134159, W11393686, W11455453

11020372710, 11020372711, 11026132410, 11026132412, 11026132413, 11026134610, 11027132410, 11027132412, 11027132413, 11028132410, 11028132412, 11028132413, 11028132414, 11028133410, 11028133411, 11028133412, 11028133413, 11028133414, 11029132411, 11029132412, 11029132413, 11029132414, 11029133411, 11029133412, 11029133413, 7MMVWB835EW0, 7MMVWB835EW1, 7MMVWB855EC0, 7MMVWB855EC1, 7MMVWB855EC2, 7MWTW7000EW0, 7MWTW7000EW1, 7MWTW7300EW0, 7MWTW7300EW1, 7MWTW8500EC0, 7MWTW8500EC1, 7MWTW8500EC2, MVWB755DW0, MVWB755DW1, MVWB757JW0, MVWB765FC1, MVWB765FC2, MVWB765FC3, MVWB765FC4, MVWB765FW0, MVWB765FW1, MVWB765FW2, MVWB765FW3, MVWB765FW4, MVWB766FW0, MVWB766FW1, MVWB766FW2, MVWB835DC0, MVWB835DC2, MVWB835DC3, MVWB835DC4, MVWB835DC5, MVWB835DW0, MVWB835DW1, MVWB835DW2, MVWB835DW3, MVWB835DW4, MVWB835DW5, MVWB855DC0, MVWB855DC1, MVWB855DC2, MVWB855DC3, MVWB855DC4, MVWB855DW0, MVWB855DW1, MVWB855DW2, MVWB855DW3, MVWB865GC0, MVWB865GC1, MVWB865GW0, MVWB865GW1, WTW7000DW0, WTW7000DW1, WTW7000DW2, WTW7000DW3, WTW7000DW4, WTW7040DW0, WTW7040DW1, WTW7040DW2, WTW7300DC0, WTW7300DW0, WTW7300DW1, WTW7300DW2, WTW7500GC0, WTW7500GC2, WTW7500GC3, WTW7500GW0, WTW7500GW2, WTW8000DW0, WTW8000DW1, WTW8000DW2, WTW8000DW3, WTW8000DW4, WTW8000DW5, WTW8040DW0, WTW8040DW1, WTW8040DW2, WTW8040DW3, WTW8040DW4, WTW8500DC0, WTW8500DC1, WTW8500DC2, WTW8500DC3, WTW8500DC4, WTW8500DC5, WTW8500DC6, WTW8500DR0, WTW8500DR1, WTW8500DR2, WTW8500DR3, WTW8500DR4, WTW8500DR5, WTW8500DW0, WTW8500DW1, WTW8500DW2, WTW8500DW3, WTW8500DW4, WTW8500DW5, WTW8500DW6, WTW8700EC0, WTW8700EC1, ZAW47115GW0

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
