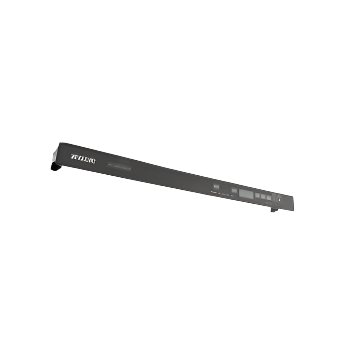

Whirlpool Corporation Dishwasher control panel / console assembly, black, no electronics W11413963, Replaces W11109120, W11346535, W11491722

Genuine Whirlpool OEM dishwasher control panel, also described as a console assembly. The panel provides the dishwasher's user-interface controls and display area; the related user-interface electronics are not included in the console assembly.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Some control-panel buttons do not respond.
• The dishwasher will not accept cycle or setting selections.
• Control-panel lights may flash or blink.
• The console may be cracked, warped, or have an unreadable display area.
• The dishwasher may start unexpectedly if a control-panel relay or related control circuitry is shorted; other components can cause similar symptoms.

Check Before Replacing

• With power disconnected, inspect the console for cracks, warping, damaged button areas, or liquid intrusion.
• Restore power and check whether individual buttons respond consistently; note whether only one button or the entire interface is affected.
• Verify that the dishwasher door closes and latches securely before attributing a no-start condition to the console.
• If the interface is unresponsive, use the appliance’s model-specific technical sheet or owner documentation to check for diagnostic indicators; do not replace the console based on symptoms alone.
• Confirm that the required user-interface electronics are present or transferable, because W11413963 is the console/panel assembly without electronics.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM console/control-panel assembly.
• Black finish.
• Dishwasher console service assembly.
• Provides the physical user-interface panel and display area.
• Electronics are not included.
• Replaces W11109120, W11346535, and W11491722 according to the trusted archive and current retailer documentation.

Installation Notes

• Disconnect electrical power before servicing the dishwasher.
• Because the electronics are not included, compare the replacement console with the original and plan for transfer or installation of the applicable user-interface components as specified for the appliance model.
• Follow the model-specific service or technical documentation for panel removal, connector handling, and reassembly; the reviewed listing does not provide universal installation instructions.
• Verify the console’s fit and finish against the appliance model before installation.

Verified Compatible Models

MDB7959SKZ0, MDB7959SKZ1, MDB7959SKZ2, MDB7959SKZ3, MDB7959SKZ4, MDB8959SKB0, MDB8959SKB1, MDB8959SKB2, MDB8959SKB3, MDB8959SKK0, MDB8959SKW0, MDB8959SKW1, MDB8959SKW2, MDB8959SKW3, MDB8959SKZ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
