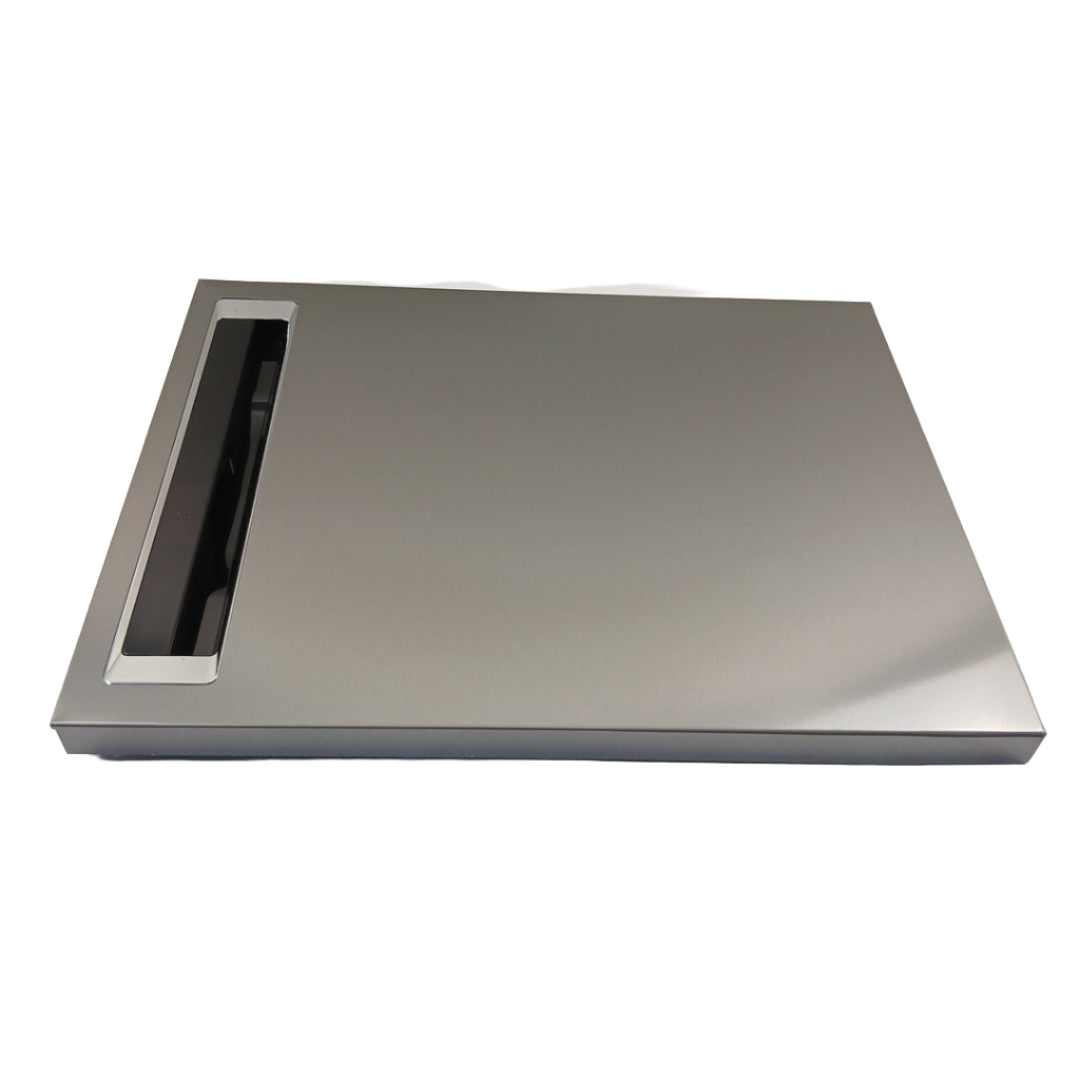

A cracked, warped, or damaged dishwasher door panel isn’t just cosmetic — it can compromise the door’s structural integrity, affect latch alignment, and allow moisture to reach internal wiring and insulation. The W11416785 is the genuine OEM KitchenAid door panel that replaces W11233313, restoring the original fit, finish, and door function on KDPM604, KDPM704, and KDPM804 series dishwashers.
⚠️ Symptoms of a Failed or Damaged Door Panel
- Visible crack, dent, or deformation on the outer door panel
- Door latch not aligning or engaging properly
- Door feels loose, flexes, or doesn’t close flush
- Moisture or condensation appearing inside the door cavity
- Panel finish peeling, discoloured, or corroded
- Rattling or vibration noise from the door during cycle
✓ Part Details
- OEM Part Number: W11416785
- Replaces: W11233313
- Type: Dishwasher outer door panel assembly
- Finish: Matches original OEM specification for KDPM series
- Fit: Direct OEM replacement — no modification required
- Application: KitchenAid KDPM604, KDPM704, KDPM804 series dishwashers
- OEM Manufacturer: Whirlpool Corporation (KitchenAid)
⚙️ Installation Notes
- Skill Level: Intermediate — door disassembly and panel alignment required
- Disconnect power at the breaker before beginning any door work
- Support the door fully during panel removal — door is heavy and will drop if unsupported
- Transfer all hardware (hinges, latch, handle brackets) from the old panel to the new one
- Verify door latch alignment and closure before restoring power
- Check door gasket condition while the panel is off — replace if compressed or cracked
✓ Compatible Models
Compatible with the following KitchenAid dishwasher models: KDPM604KBS0, KDPM604KPS0, KDPM604KPS1, KDPM704KPS0, KDPM704KPS1, KDPM804KBS0, KDPM804KPS0, KDPM804KPS1. Always verify your full model number before ordering.
With the door panel off, you have direct access to the door gasket and inner liner. If the gasket is flattened, cracked, or pulling away from the channel, replace it at the same time — it’s a $20–40 part and prevents leaks that would otherwise require a second full door disassembly. Also inspect the door latch assembly for wear or misalignment before closing up.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
