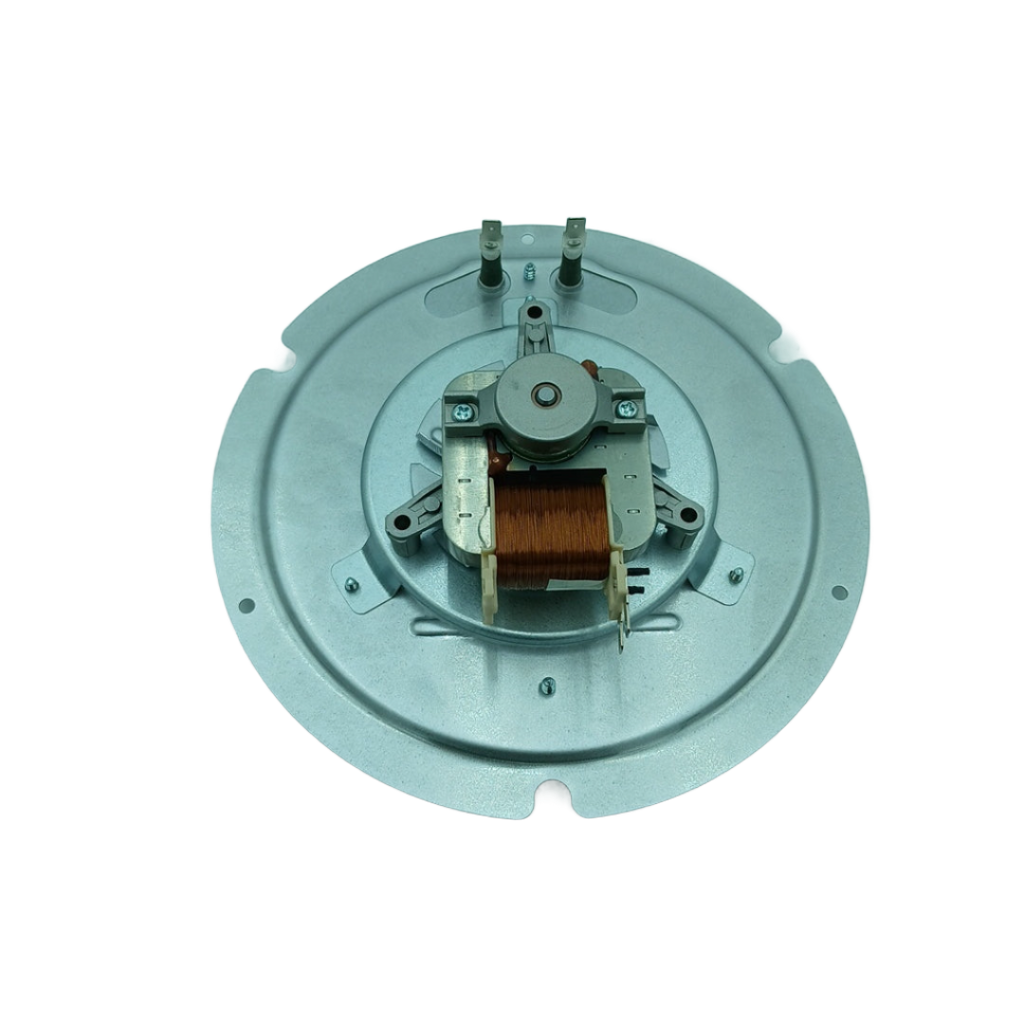

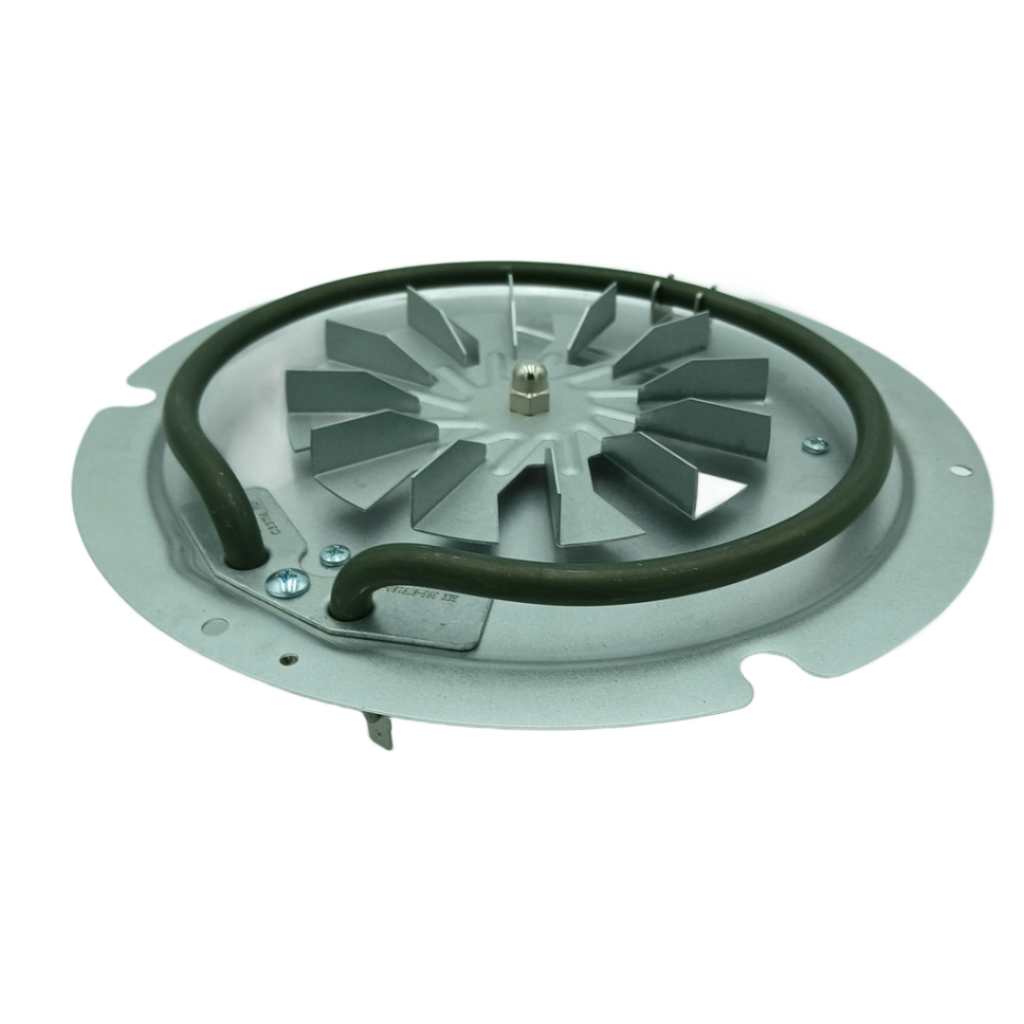

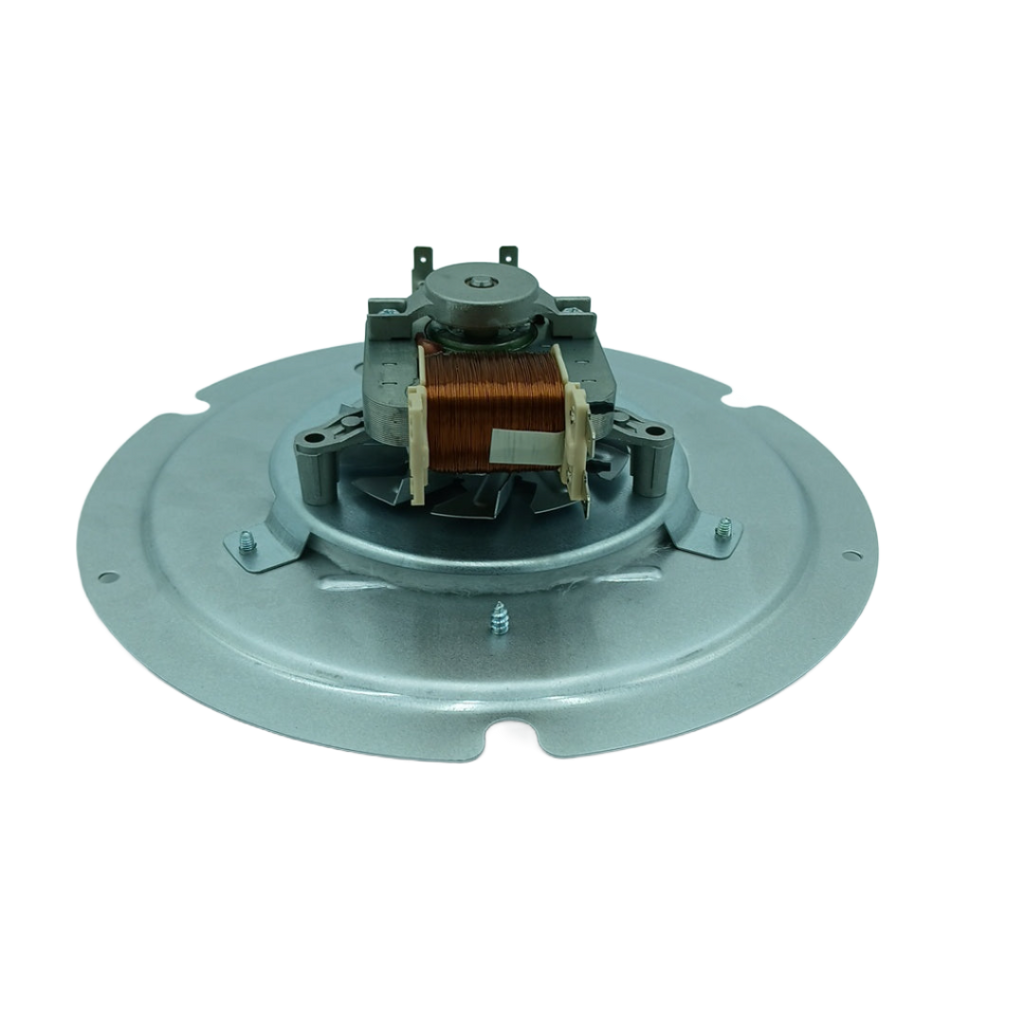

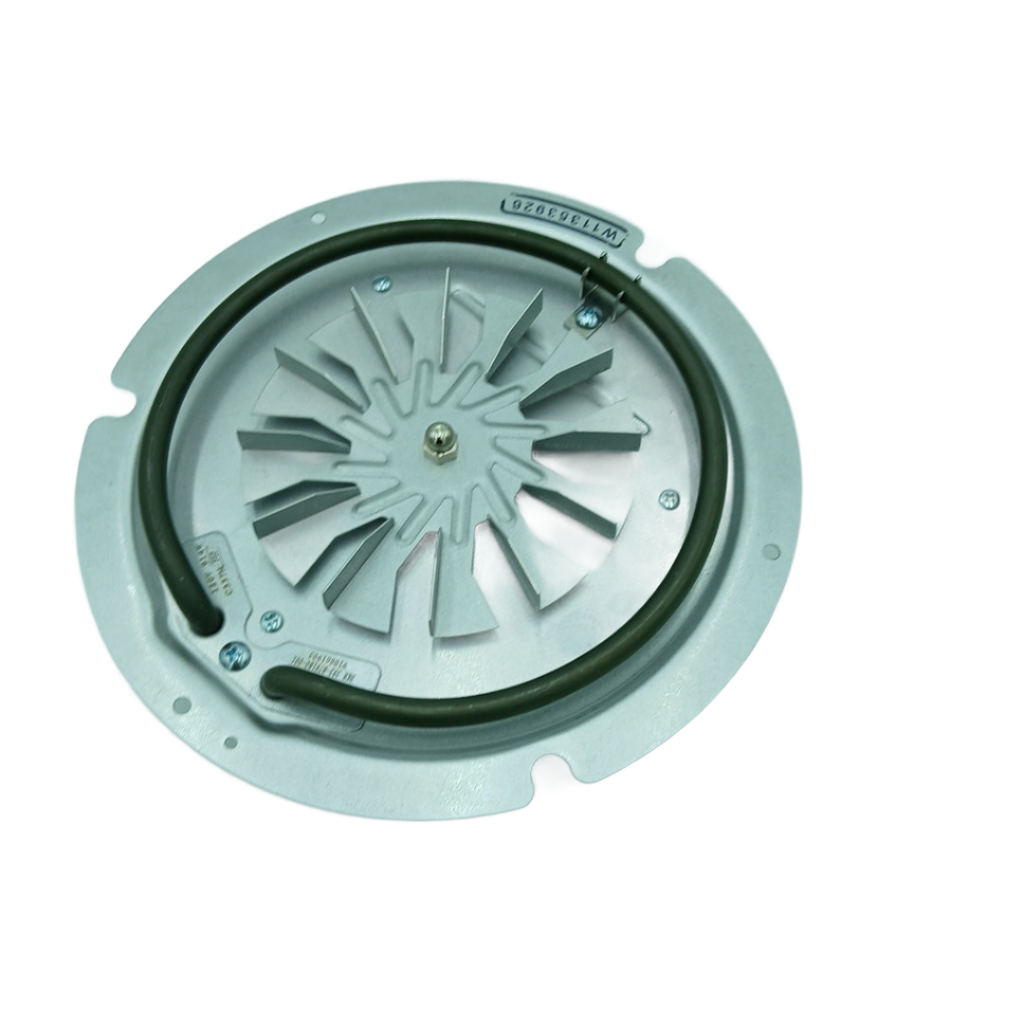

Whirlpool Range Convection motor / convection fan assembly W11441001, Replaces W10617484, W10860155, W10874477, W11048093, W11353926

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Uneven baking or roasting during convection cooking
• Loud or unusual noise from the convection-fan area
• Reduced or absent airflow during a convection cycle
• Hot spots or inconsistent cooking across oven racks

Check Before Replacing

• With the range unplugged or its circuit breaker off, visually inspect the convection fan area for an obstruction or damaged blade.
• With power disconnected, carefully check whether the fan blade turns freely by hand; excessive resistance can indicate a motor or bearing problem.
• Run a convection cycle only after confirming the fan area is clear, and observe or listen for fan operation without touching internal components.
• If electrical testing is performed, disconnect power first and follow the appliance’s service documentation; do not test live wiring unless qualified.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power by unplugging the range or switching off the house circuit breaker before installation.
• Allow the appliance and internal components to cool before handling the convection assembly.
• Confirm the replacement against the appliance model and existing part before installation.
• Handle the fan and motor assembly carefully and avoid forcing the fan blade or shaft.
• Restore power only after the assembly is secured and all appliance panels or guards are properly reinstalled.

Verified Compatible Models

664C95123610, 664C95123611, 66475123610, 66475123611, 66475123612, 66475223710, 66475223711, 66475223712, 66495123610, 66495123611, 66495123612, 66495223711, JGS1450DB0, JGS1450DB1, JGS1450DP0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
