Whirlpool Dishwasher Inner Door Panel Cracked or Damaged? Door Panel W11462454 – Fix WDTA50 Series Door Fast
If your Whirlpool WDTA50 series dishwasher has a cracked, warped, or damaged inner door panel, or if the panel is causing the door to not seal properly, W11462454 is the correct OEM replacement. In most Whirlpool WDTA50SAK series dishwashers, the inner door panel provides structural support to the door assembly, houses the control panel mounting points, and forms the interior-facing surface of the door. When it cracks or warps — due to impact, heat stress, or age — the door may not close flush, the gasket may not seal properly, and water can leak from the door area during the wash cycle. ⚡ Common structural failure point on Whirlpool WDTA50SAK series dishwashers. Part W11462454 is the genuine OEM replacement inner door panel that restores door structural integrity and proper gasket sealing on WDTA50SAK series dishwashers.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ QUALIFIER 1 — dishwasher powers on and cycles run normally
- ✔ QUALIFIER 2 — door latch and outer door panel are undamaged
- ✔ QUALIFIER 3 — your model number is in the WDTA50SAK series (confirm below)
- ✔ ONLY problem is the inner door panel — cracked, warped, or causing door seal/leak issues
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Visible cracks or warping on the inner door panel surface
- Door doesn't close flush or the latch doesn't engage properly
- Water leaking from the door area during the wash cycle
- Door gasket lifting or not seating properly due to panel deformation
✔ If these symptoms match, the inner door panel is the most likely failed structural component.
✔ In most cases, replacing the door panel restores proper door closure, gasket sealing, and leak-free operation immediately.
📦 Part Details

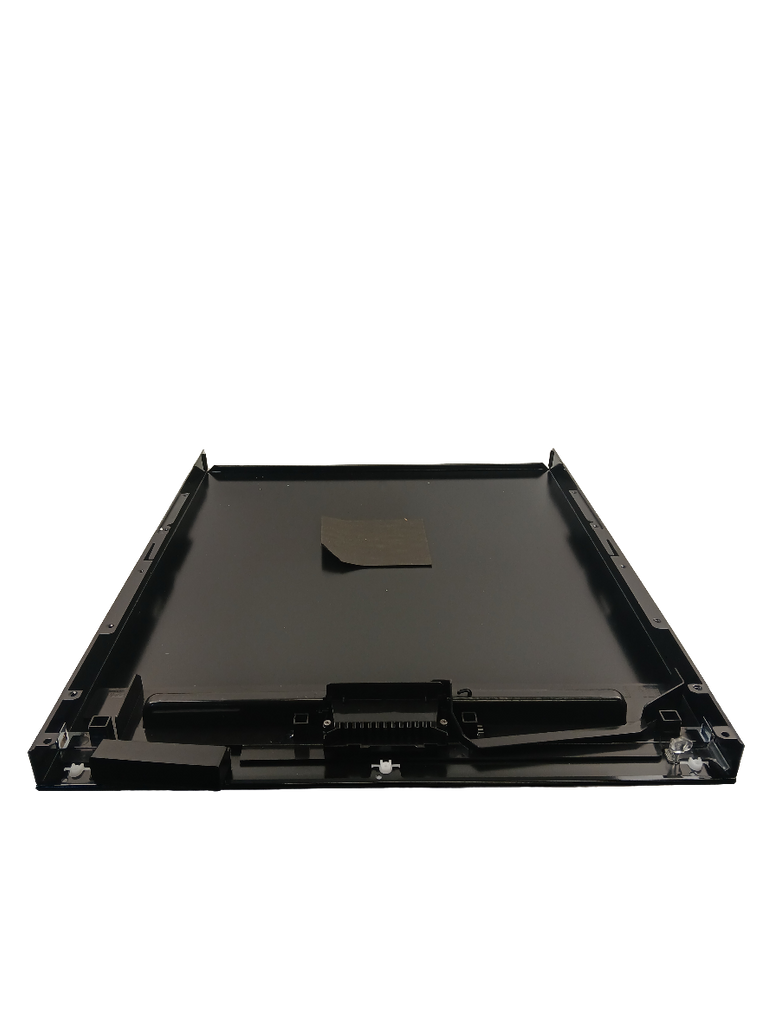

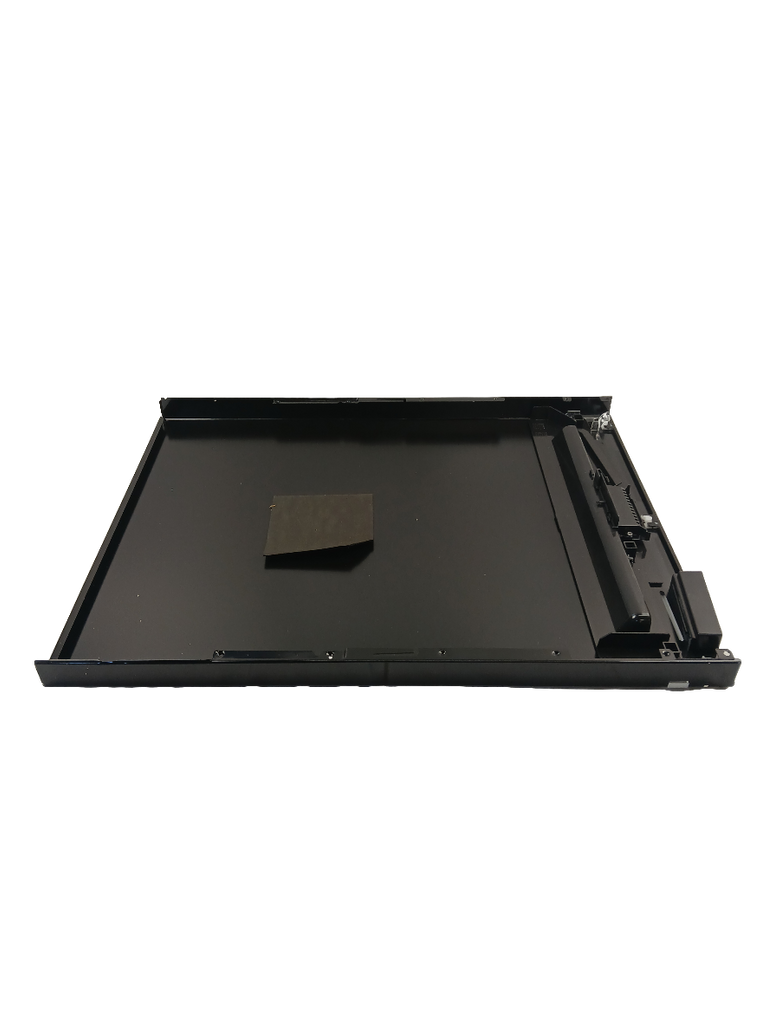

- Part Number: W11462454
- Type: Dishwasher Inner Door Panel — structural interior door panel assembly
- Replaces: W11233305
- Brands: Whirlpool
- Fits: WDTA50SAK series Whirlpool dishwashers
While the door panel is off, inspect the door gasket for cracking, compression set, or lifting — a damaged gasket is the most common cause of door leaks on WDTA50 series dishwashers and should be replaced at the same time as the panel. Also check the door latch assembly for wear or misalignment; a worn latch on a new panel will cause the same door-closure issues to return.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power at the breaker before starting. Open the dishwasher door fully and remove the screws along the inner door panel perimeter to separate it from the outer door assembly. Transfer the control panel harness, door gasket clips, and any mounting hardware to the new W11462454, align the new panel with the outer door assembly, and secure all screws. Confirm the door closes flush and the gasket seats properly before restoring power.
✓ Compatible Models
Confirmed compatible with WDTA50SAKB0, WDTA50SAKT0, WDTA50SAKV0, WDTA50SAKW0, WDTA50SAKZ, WDTA50SAKZ0 plus additional Whirlpool WDTA50SAK series models. Contact us to verify your model number before ordering.
💡 Pro Tip
The door gasket seats against the inner door panel — if the old panel was cracked or warped, the gasket has likely been compressed unevenly and will not seal properly against the new flat panel surface. Replacing the gasket at the same time as the panel is a low-cost add-on that guarantees a leak-free result from the first cycle and eliminates the most common callback on this repair.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
