Is This the Part You Need?
This is the drain pump for select Whirlpool, KitchenAid, Maytag, and Kenmore dishwashers. The drain pump is responsible for expelling dirty water from the tub at the end of each wash and rinse cycle. When it fails, water sits at the bottom of the dishwasher after a cycle, the dishwasher stops mid-cycle with standing water, or the unit displays a drain error code. Left unaddressed, a failed drain pump leads to foul odours, mould growth, and potential water damage to your kitchen floor.
Symptoms of a Failed Dishwasher Drain Pump
- Standing water at the bottom of the dishwasher after a cycle
- Dishwasher stops mid-cycle and won’t drain
- Drain error code displayed (e.g. F8E1, E2)
- Humming sound at the end of a cycle but no water draining
- Dishwasher drains slowly or incompletely
- Foul odour from standing water in the tub
Part Details
- OEM Part Number: W11462456
- Replaces / Cross-References: W11193157

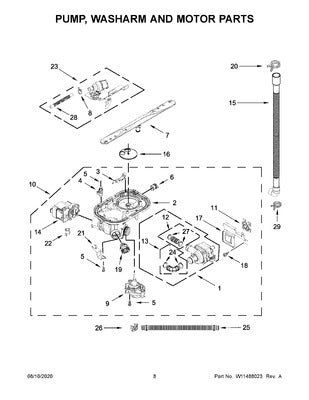

- Item #: 14 in the parts diagram
- Compatible Brands: Whirlpool, KitchenAid, Maytag, Kenmore
- Part Type: Dishwasher Drain Pump
- Condition: New OEM
- Vendor: XPart Supply Ltd. — Canadian stock, expert support
Installation Notes
- Skill Level: Intermediate — 30–45 minute repair, basic appliance experience recommended
- Always disconnect power to the dishwasher before beginning any repair
- Turn off the water supply valve under the sink before starting
- The drain pump is accessed from below — lay the dishwasher on its back or side
- Have towels ready — residual water will spill when disconnecting the drain hose
- Photograph all wire harness and hose connections before disconnecting
- Check the drain hose and filter for blockages before installing the new pump
Compatible Models
JDPSG244LS0, JDPSG244LS1, JDPSG244LS2, JDPSS244LL0, JDPSS244LL1, JDPSS244LL2, JDPSS244LM0, JDPSS244LM1, JDPSS244LM2, JDPSS245LX0, JDPSS246LL0, JDPSS246LL1, JDPSS246LM0, JDPSS246LM1, KDFE204KBL0, KDFE204KBS0, KDFE204KPS0, KDFE204KWH0, KDTE204KBL0, KDTE204KBS0, KDTE204KPS0, KDTE204KWH0
💡 Pro Tip — Check the Filter and Drain Hose First:
Before replacing the drain pump, remove and clean the dishwasher filter and inspect the drain hose for kinks or blockages. A clogged filter or kinked hose is the most common cause of drain failures — and it’s a free fix. If the filter is clear and the hose is unobstructed but the dishwasher still won’t drain, the pump motor has failed and W11462456 is your answer.
Before replacing the drain pump, remove and clean the dishwasher filter and inspect the drain hose for kinks or blockages. A clogged filter or kinked hose is the most common cause of drain failures — and it’s a free fix. If the filter is clear and the hose is unobstructed but the dishwasher still won’t drain, the pump motor has failed and W11462456 is your answer.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
