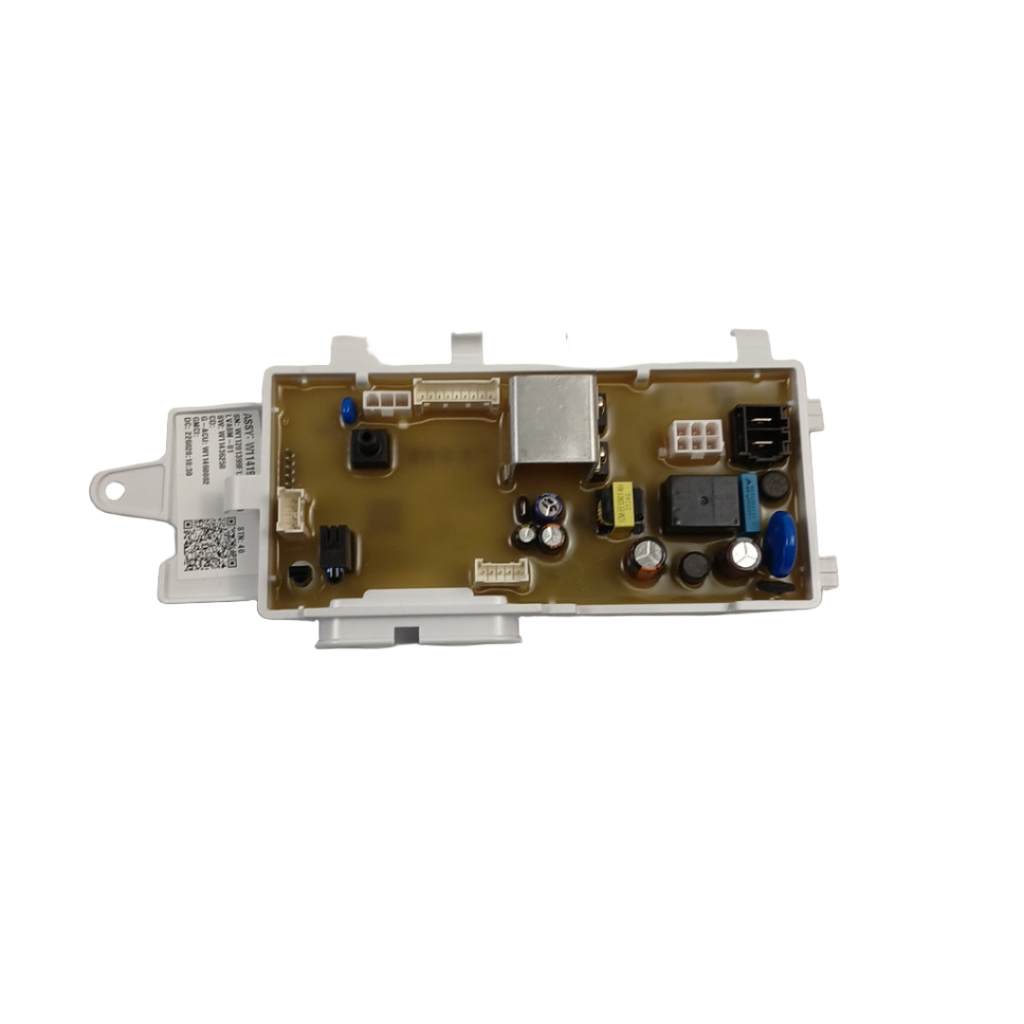

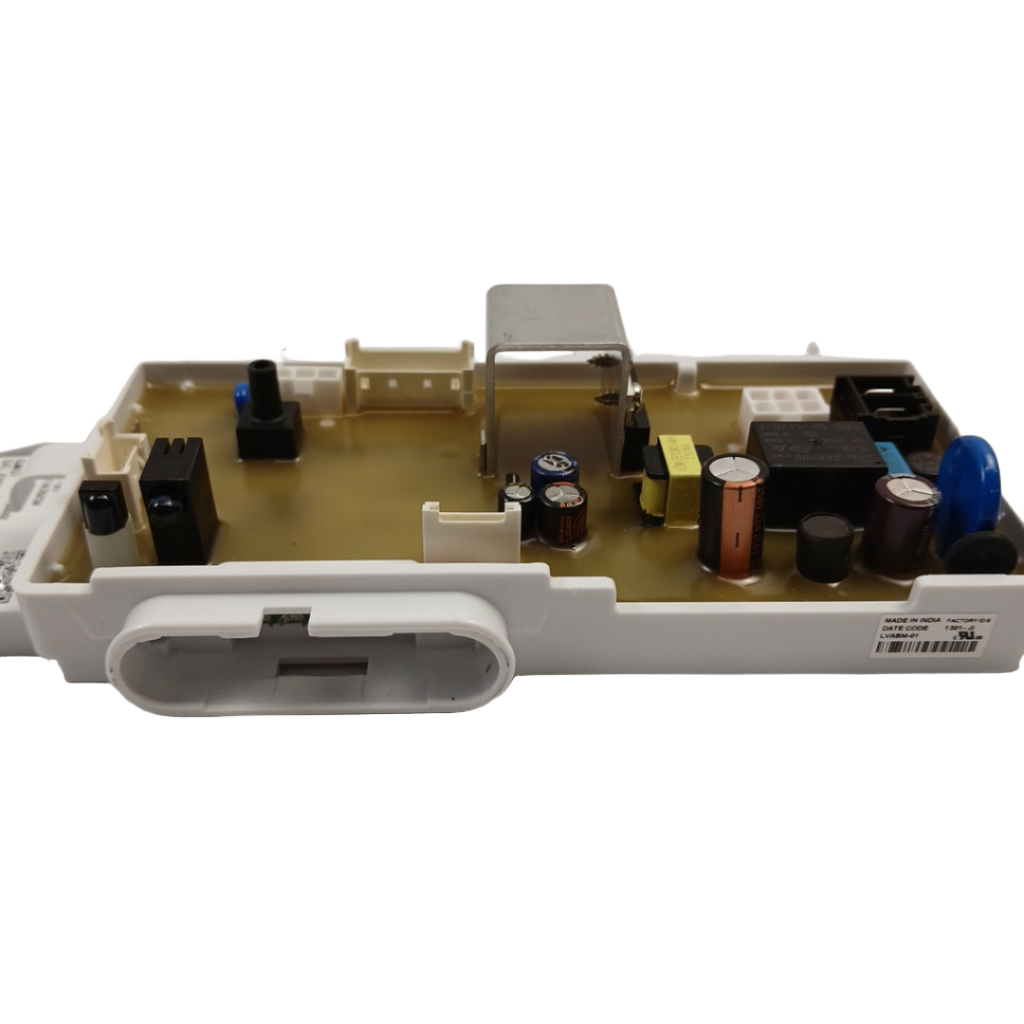

Whirlpool Washer Electronic Control Board / Appliance Control Unit (ACU) W11481108, Replaces W11419692

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Control panel is unresponsive.
• Cycle becomes stuck or does not advance.
• Washer does not perform a commanded fill, drain, or spin step.

Check Before Replacing

• Record any displayed fault code and consult the model-specific technical sheet before condemning the ACU.
• Verify the washer has power and inspect accessible wiring/connectors for looseness or damage only with power disconnected.
• Use the washer's built-in diagnostic test, following the model technical sheet, to distinguish a control issue from a connected component or wiring issue.

Pro Tip

Part Details

Installation Notes

• Disconnect power before servicing; Whirlpool's technical documentation also directs shutting off the water supply before access to the main control.
• The main control is accessed through the console area; disconnect the pressure hose and electrical connectors before removing the ACU.
• Replace all parts and panels before operating the washer.
• Encompass warns that replacement presents an electrical-shock hazard and recommends installation by a certified technician.
• Because this is a core-return item, retain the removed defective control and follow the seller's core-return instructions if applicable.

Verified Compatible Models

MVW6200KW0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
