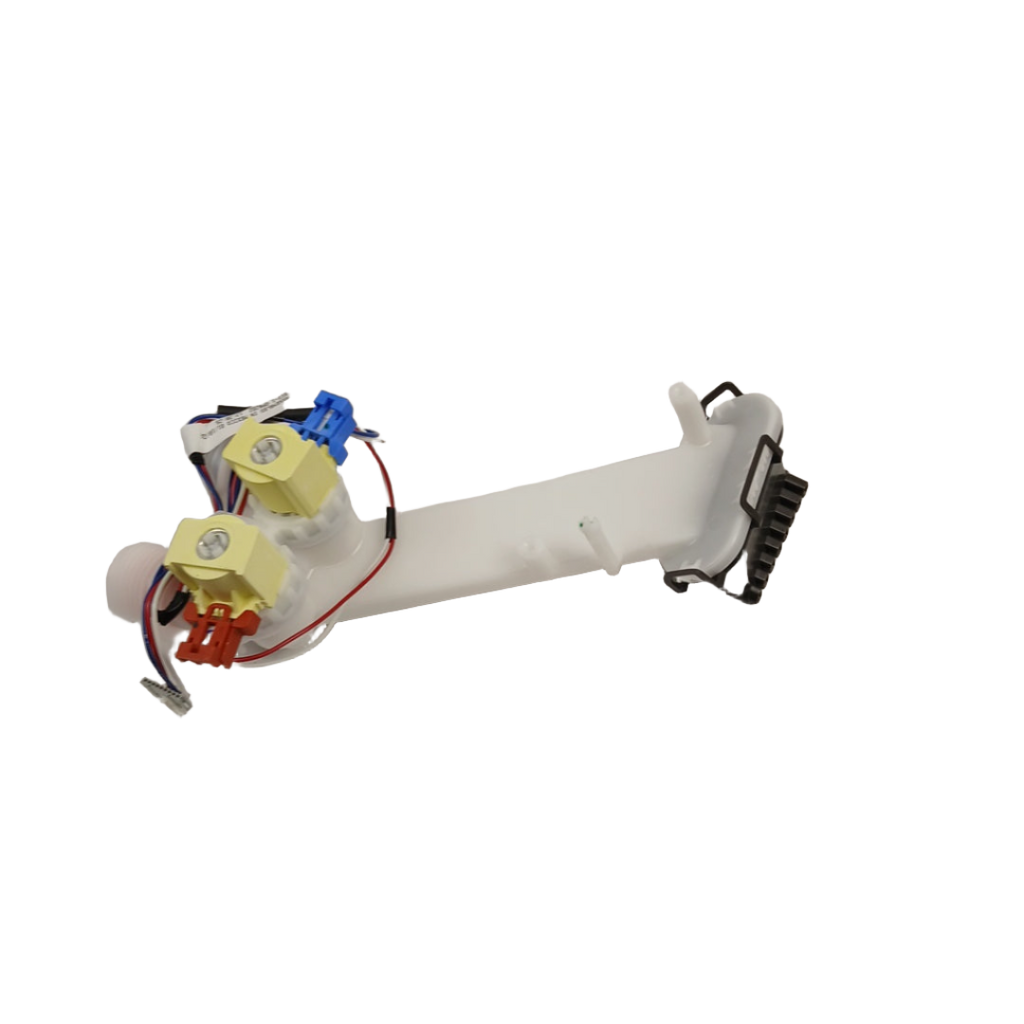

Whirlpool Washer Water Inlet Valve and Spout W11513255, Replaces W11385821

Genuine Whirlpool OEM water inlet valve and spout assembly for washing machines. The valve controls water flow into the washer.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer does not fill with water
• Slow or incomplete filling
• Only hot or only cold water enters
• Water continues entering when the washer is off
• Water leaks at or near the inlet valve or hose connections

Check Before Replacing

• Confirm both household water supply valves are fully open.
• Inspect inlet hoses for kinks, reversed connections, or visible damage.
• Inspect the hose screens and valve inlet screens for sediment or debris without damaging the screens.
• Check the valve body and hose connections for visible leakage.
• If electrical testing is performed, use the washer's model-specific service procedure and verify whether the valve receives the proper fill signal; wiring or control faults can produce similar symptoms.
• Do not conclude that the valve is defective until water supply, hose restrictions, screens, wiring, and model-specific diagnostics have been checked.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM water inlet valve and spout assembly
• Controls hot and cold washer water fill
• Includes solenoid-controlled water inlet function
• Replaces Whirlpool part W11385821
• Exact part identity is documented as Whirlpool OEM part W11513255

Installation Notes

• Disconnect electrical power and close both hot and cold water supply valves before service.
• Relieve residual hose pressure and manage remaining water when disconnecting the hoses.
• Photograph or label the wiring and hose routing before removal.
• Compare the replacement valve's connectors, ports, spout, and mounting arrangement with the original before installation.
• Flush the inlet hoses before final reconnection.
• Restore water and power, run a fill test, and inspect every connection for leaks.

Verified Compatible Models

CAW45125LW0, CAW45125LW1, CWW4512RW0, MVW4505MW0, MVW4505MW1, MVW4505MW2, MVW5035MW0, MVW5035MW1, MVW5035MW2, MVW5430MW0, MVW5430MW1, MVW5430MW2, MVW5430PBK0, MVW5430PBK1, MVW5435PBK0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
