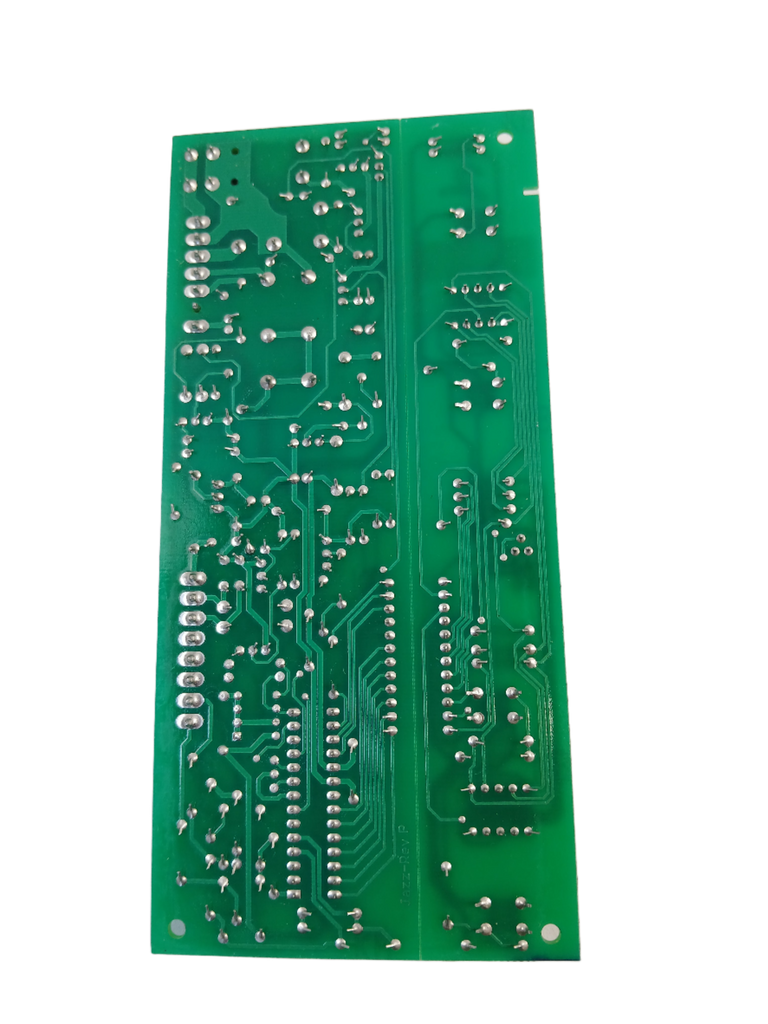

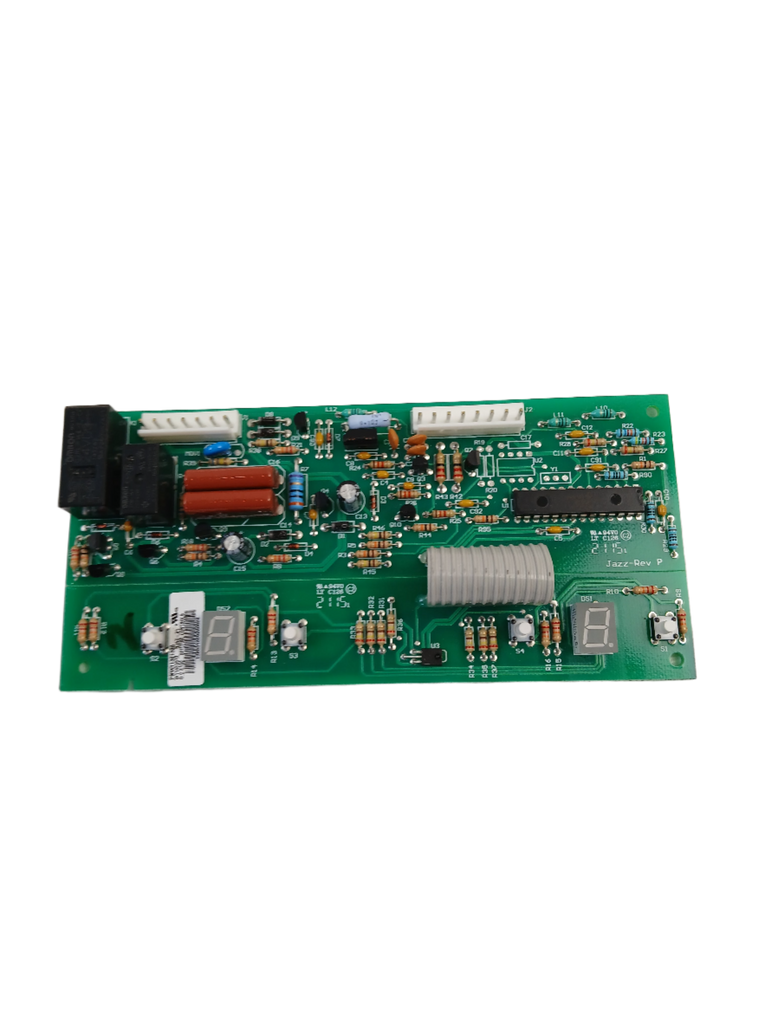

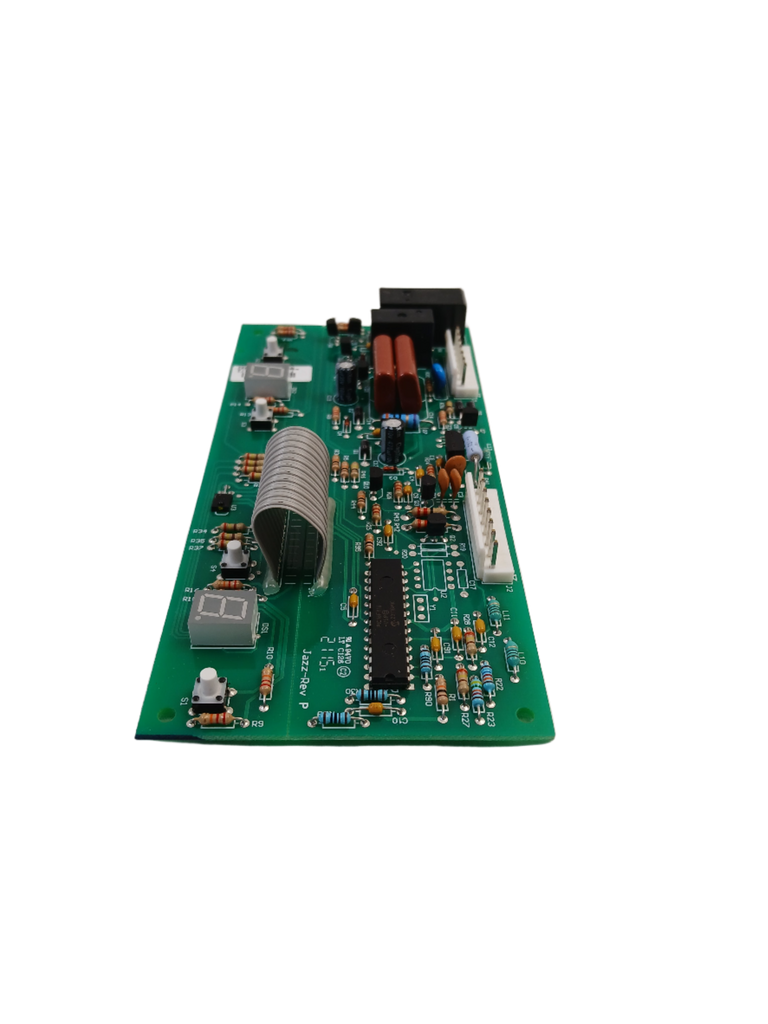

The W11524469 is the electronic control board for Whirlpool, KitchenAid, Maytag, and Amana bottom-mount and French door refrigerators. The control board manages all refrigerator functions including compressor cycling, defrost timing, fan motor control, and temperature regulation — when it fails, you may see the refrigerator not cooling, error codes on the display, fans not running, or erratic temperature behavior. Replacing it with the correct board restores full system control and proper temperature management.

✓ Model-Specific Repair Pages

Don't see your model? Contact us and we'll confirm compatibility. This part fits 65+ models across Whirlpool, KitchenAid, Maytag, and Amana refrigerators.

Part W11524469 replaces a large family of superseded control board part numbers including W11321360, 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, and 67004496. Control boards are model-specific — always verify your full model number before ordering.

✓ Common Symptoms Fixed

Refrigerator not cooling or freezing. Display showing error codes or going blank. Compressor not cycling on or off properly. Evaporator or condenser fan not running. Defrost system not activating, causing frost buildup. Erratic temperature fluctuations in fresh food or freezer compartments.

✓ Key Features & Specifications

Part Number: W11524469
Brand: Whirlpool
Part Type: Refrigerator Electronic Control Board
Condition: New OEM (OEM variant) | New Aftermarket (XPart variant — see variant selector)
Fits: Whirlpool, KitchenAid, Maytag, and Amana bottom-mount and French door refrigerators
Replaces: W11321360, 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496

✓ Buying Options

OEM / New (W11524469): Genuine Whirlpool factory-original control board, ensuring correct firmware, exact connector layout, and full compatibility with your refrigerator's compressor, fans, sensors, and display. Only genuine OEM boards guarantee proper calibration and manufacturer-backed reliability.

XPart / New (W11524469XP): Premium aftermarket control board engineered to OEM specifications. A cost-effective alternative for budget-conscious repairs. XPart aftermarket replacement parts are not affiliated with, sponsored by, or endorsed by Whirlpool or any OEM manufacturer.

✓ Replacement Part Numbers

W11524469, W11321360, 12002339, 12002445, 12002449, 12002508, 12002509, 12002567, 12002706, 12784415, 12784415V, 12868502, 12868510, 12868513, 67003867, 67004453, 67004496
W11524469XP (XPart aftermarket cross-reference)

✓ Installation Tips

Disconnect power to the refrigerator before beginning any repair. The control board is typically located in the rear upper section of the refrigerator compartment or behind a panel at the back of the unit. Photograph all wire harness connections before disconnecting. The board is secured by mounting clips or screws — transfer all connectors to the new board in the same positions. This component is static-sensitive — handle carefully and avoid touching circuit traces. Restore power and verify all refrigerator functions including cooling, defrost, and fan operation before completing the repair.
