Range Not Responding? Electronic Control Board W11528249 – Fix Unresponsive Controls Fast

When your Whirlpool electric range stops responding to inputs or displays error codes, the electronic control board is the most common culprit. In most Whirlpool-built ranges, this is caused by a failed control board PCB. When it fails, burners won't heat, oven functions become unresponsive, and the display may go blank or flash fault codes. ⚡ Common failure point in Whirlpool-built electric ranges. Part W11528249 is the genuine OEM replacement that restores full range operation without modification.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Range powers on but controls are unresponsive or erratic
• ✔ Burner elements and oven igniter test OK independently
• ✔ Household power supply and breaker confirmed good
• ✔ Wiring harness and connectors show no visible damage
• ✔ ONLY problem is unresponsive touchpad, display errors, or no heat despite power

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Touchpad buttons not responding — most common, what customers search first
• Oven not heating despite selecting temperature
• Burners not activating from control panel
• Display blank, flickering, or showing partial segments
• F-code or E-code error displayed (e.g. F3, F5, E1)
• Range resets or powers off randomly during use

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this control board restores normal operation immediately.

📦 Part Details

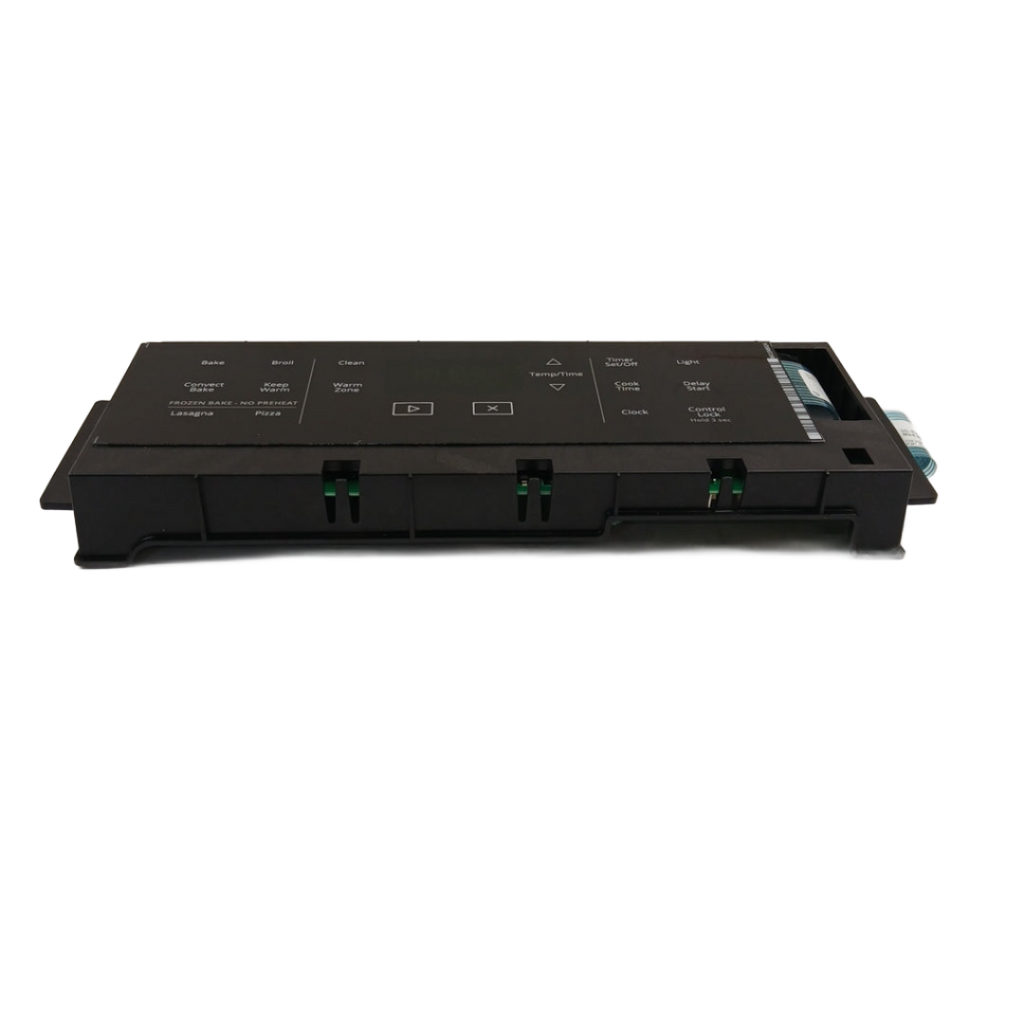

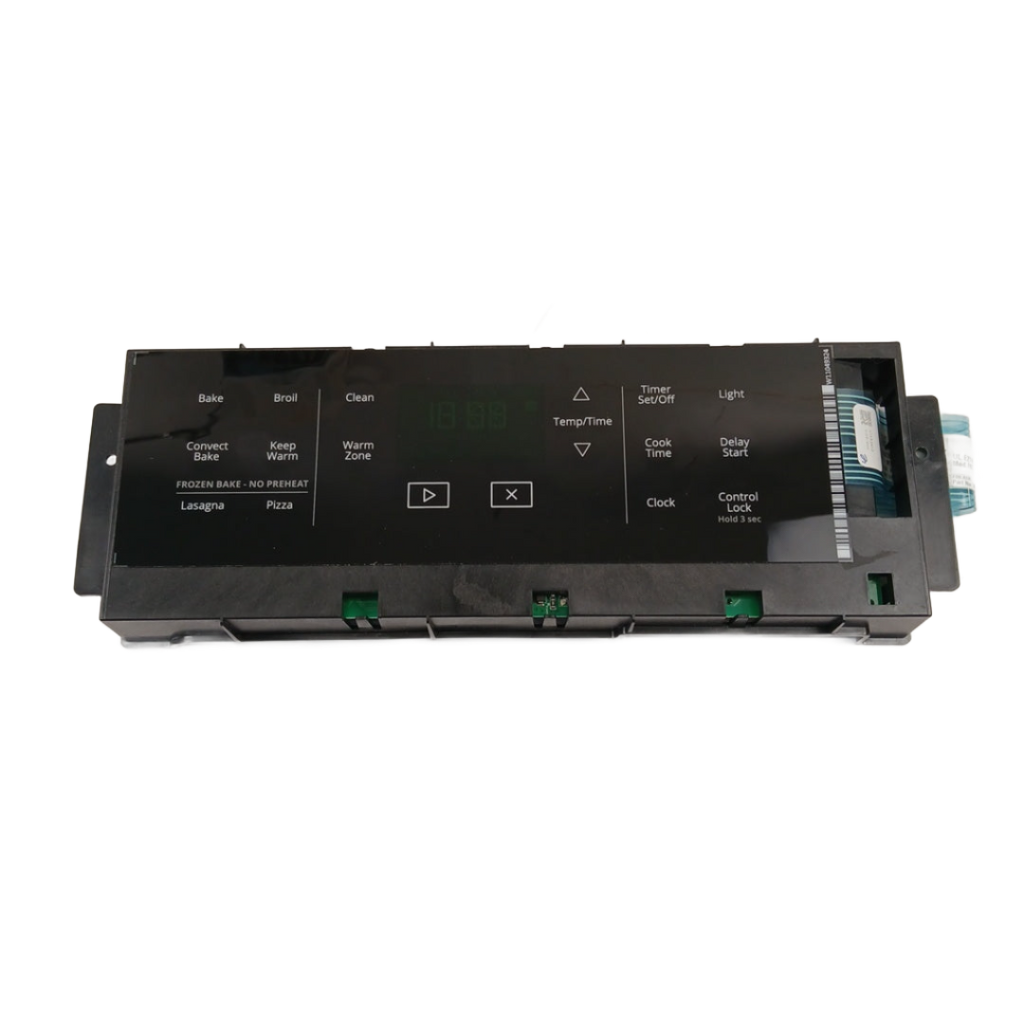

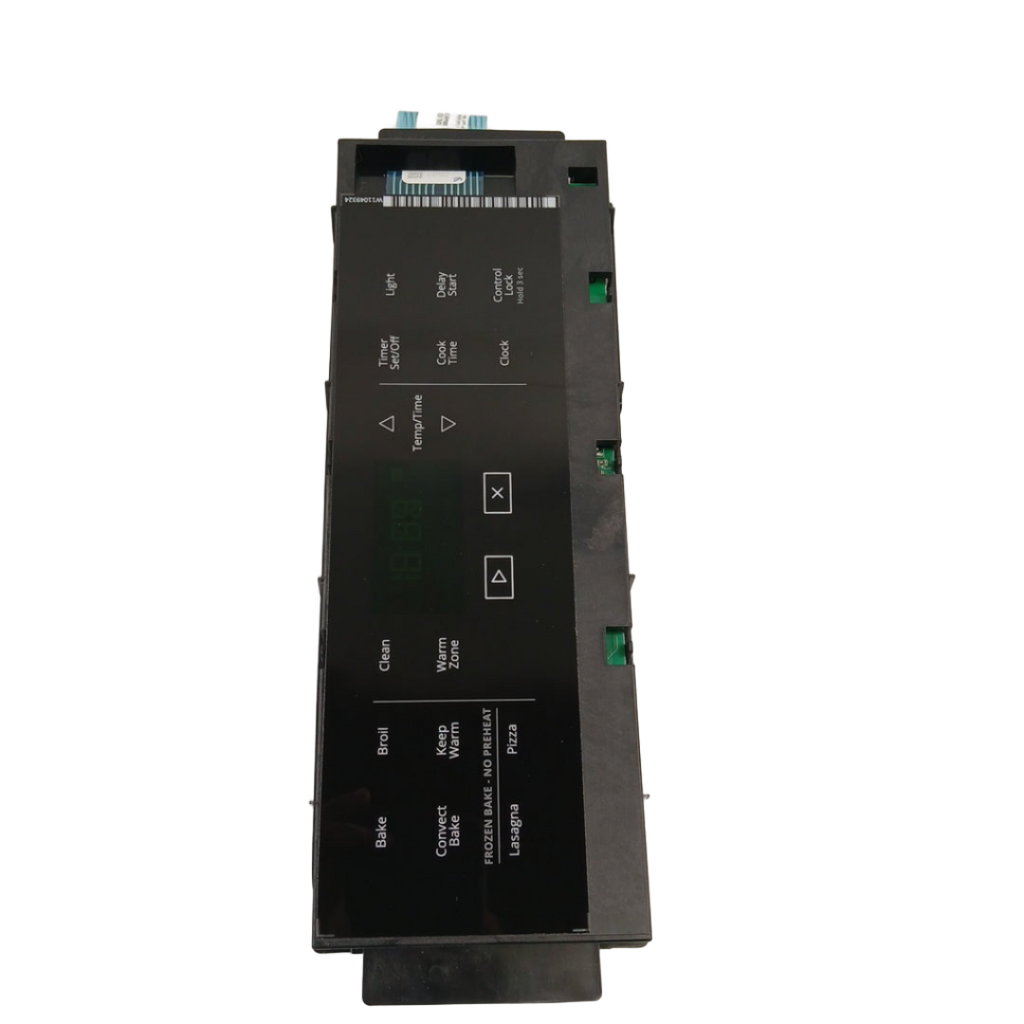

• Part Number: W11528249

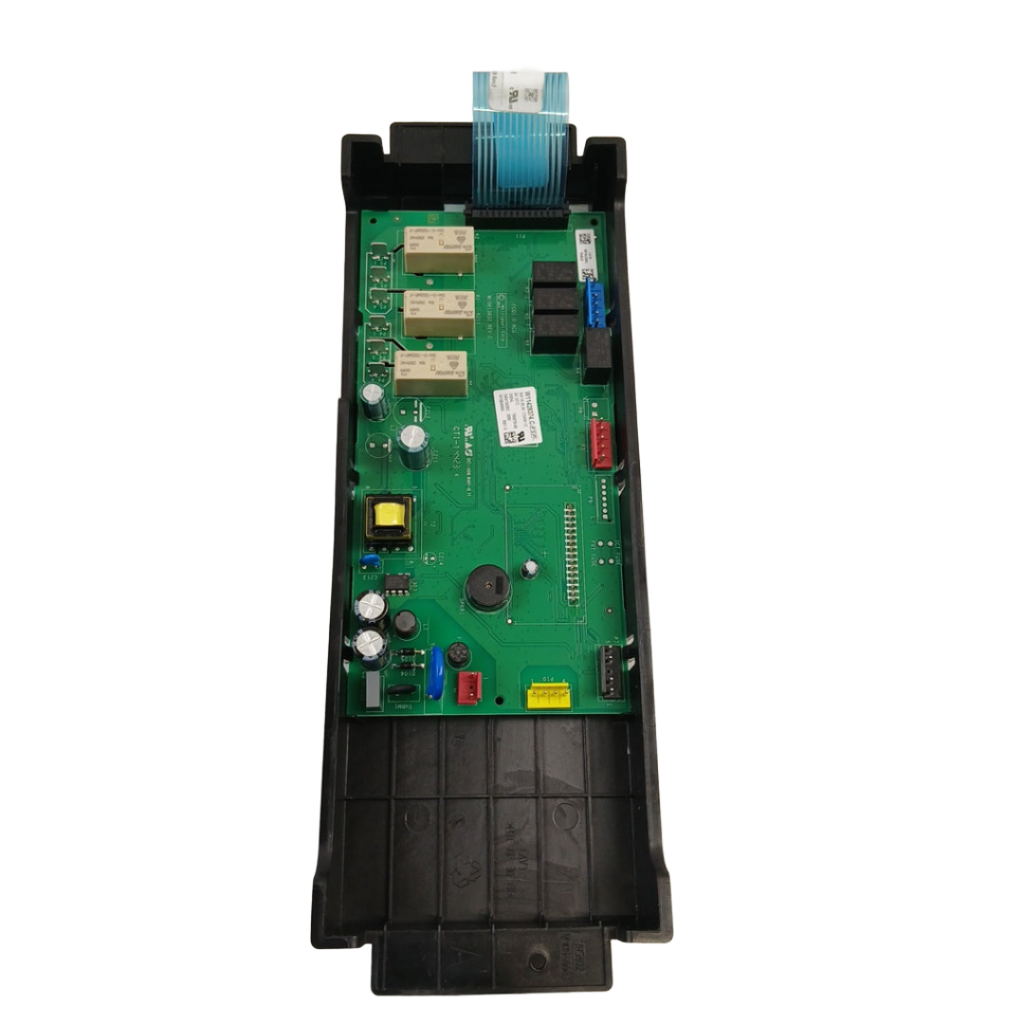

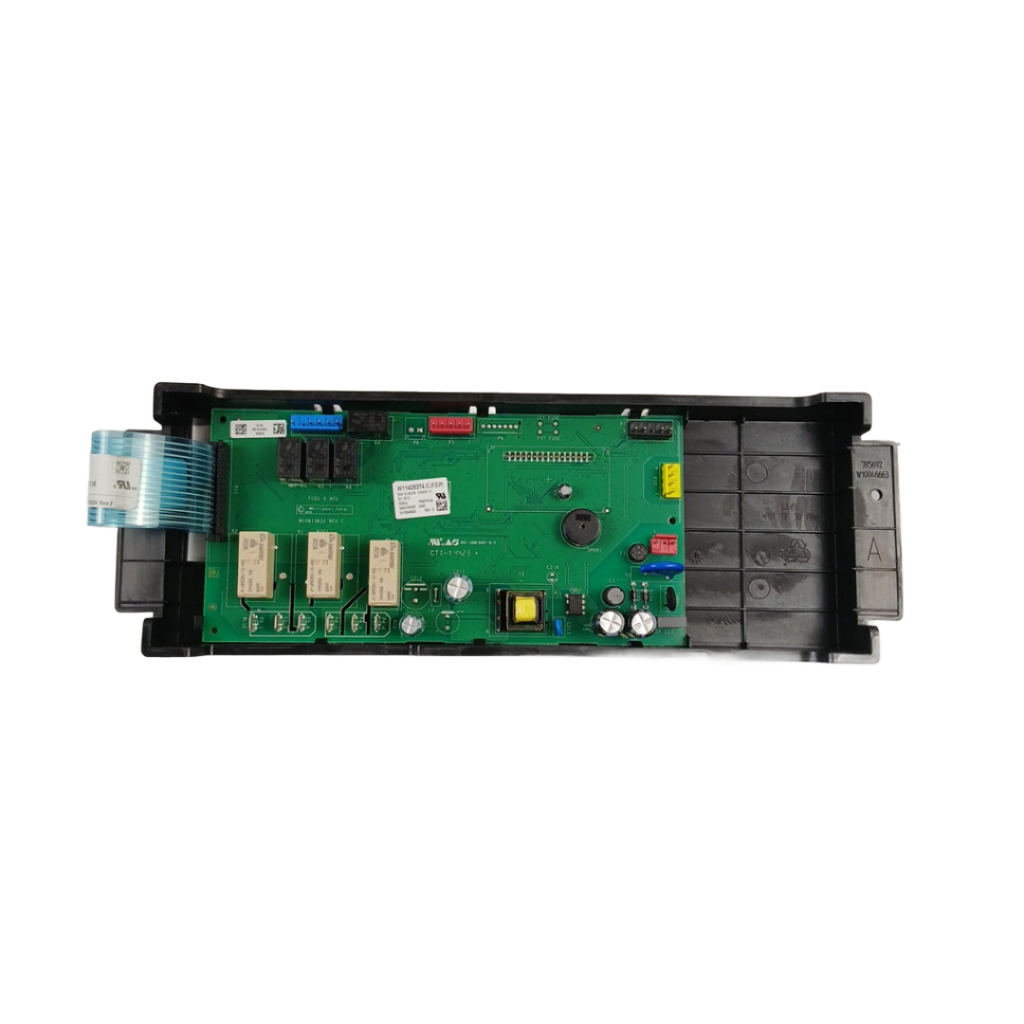

• Type: Electronic Control Board (PCB Assembly)
• Replaces: OEM direct-fit control board assembly — supersedes W11050785, W11182815, W11204529, W11295998, W11428374, W11511586 (no modification required)
• Brands: Whirlpool, Maytag, Amana

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power at the breaker or unplug the range before beginning. Remove the back panel to access the control board, disconnect the wiring harness connectors (photograph before removal), swap the board, and reconnect in reverse order. Ensure all ribbon cable connectors are fully seated before restoring power.

✓ Compatible Models

Confirmed compatible with WFE535S0JS0, WFE535S0JS1, WFE535S0JV0, WFE535S0JZ0, WFE535S0JZ1, WFE550S0HB0, WFE550S0HB1, WFE550S0HV0, WFE550S0HV1, WFE550S0HW0, WFE550S0HW1, WFE550S0HZ0, WFE550S0HZ1, WFE550S0HZ2, YWFE535S0JV0, YWFE535S0JZ0, YWFE535S0JZ1, YWFE550S0HB0, YWFE550S0HB1, YWFE550S0HV0, YWFE550S0HV1, YWFE550S0HW0, YWFE550S0HW1, YWFE550S0HZ0, YWFE550S0HZ1, plus additional Whirlpool-platform models. Contact us to verify your model number before ordering.
