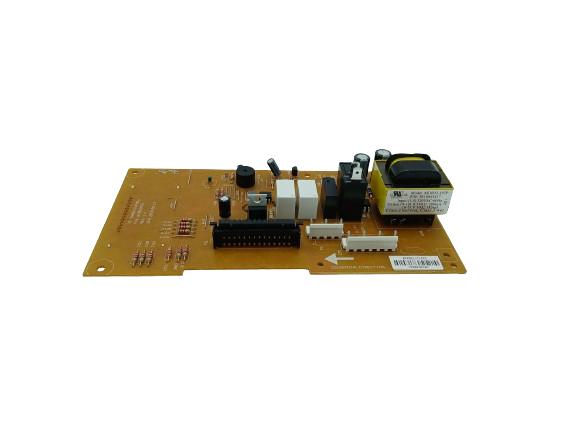

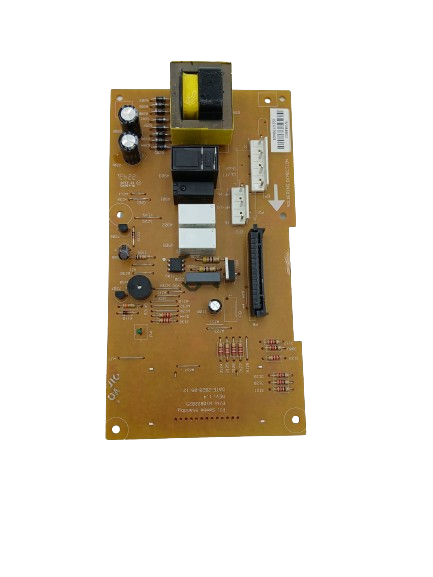

Whirlpool Microwave Electronic Control Board / Control Board (CNTRL-ELEC; ACU PCBA Service Assembly) W11544455, Replaces W10849831

Genuine Whirlpool electronic control board used in select Whirlpool and Maytag microwave and microwave/hood-combination appliances. The board controls microwave electronic functions such as cooking settings, timing, display, and sensor operations.

Is This the Right Part?

Common Symptoms

• Timer will not advance.
• Clock or display does not show.

Check Before Replacing

• Confirm the appliance model is listed for W11544455 before diagnosing or ordering; visually similar boards can differ.
• With the microwave fully assembled and the door closed, note whether the clock/display operates, the timer advances, and a Start command is accepted. These observations can support troubleshooting but do not by themselves confirm a failed control board.
• Disconnect power before any service access; use the appliance model’s technical documentation or a qualified microwave servicer for further diagnosis.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM electronic control board.
• Listed as CNTRL-ELEC / ACU PCBA service assembly.
• Manages electronic cooking controls including timing, power levels, and sensor operations.

Installation Notes

• Reliable Parts publishes no part-specific installation instructions for W11544455.
• Disconnect power before service and use model-specific service documentation; microwave control-board service should be referred to a qualified servicer when appropriate.

Verified Compatible Models

YMMMS4230PZ00, YMMMS4230PZ01, YWMH31017FB0, YWMH31017FB1, YWMH31017FS0, YWMH31017FS1, YWMH31017FW0, YWMH31017FW1, YWMH31017HB0, YWMH31017HB1, YWMH31017HB05, YWMH31017HB06, YWMH31017HB07, YWMH31017HB08, YWMH31017HB09

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
