Whirlpool Range Bake element W11545804, Replaces W10282948, W10546517, W11292248, WPW10546517

XPart Number XP10006783
$90.99
$110.95
In stock and ready for shipping
Buying Options: OEM Genuine

Choose an available buying option.
Check Fit & Find Parts
Bubba checks verified models, product descriptions, cross-references and store data. Find your model number →

Frequently Bought Together
OVEN HEATS SLOWLY OR DOES NOT BAKE EVENLY WHEN THE BAKE ELEMENT IS NOT HEATING

Whirlpool Range Bake element W11545804, Fixes Oven heats slowly or does not bake evenly when the bake element is not heating

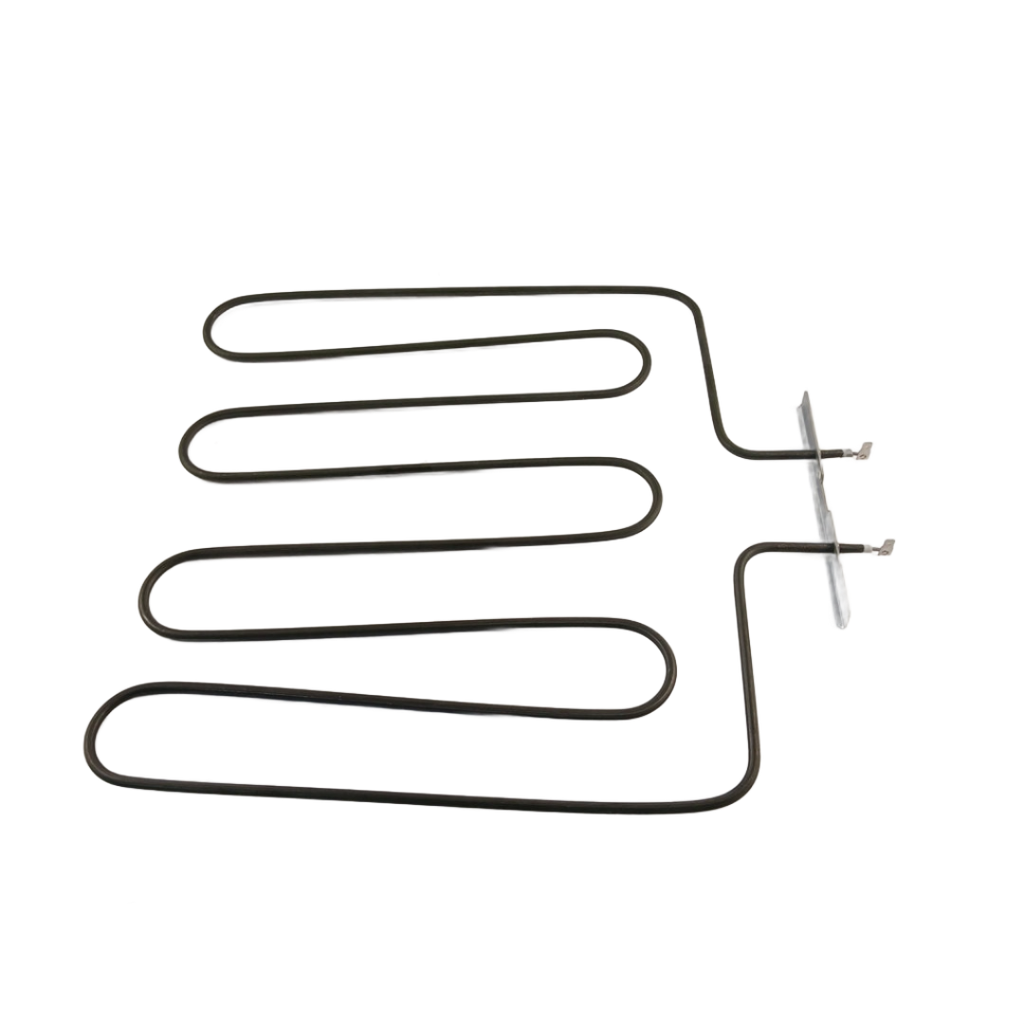

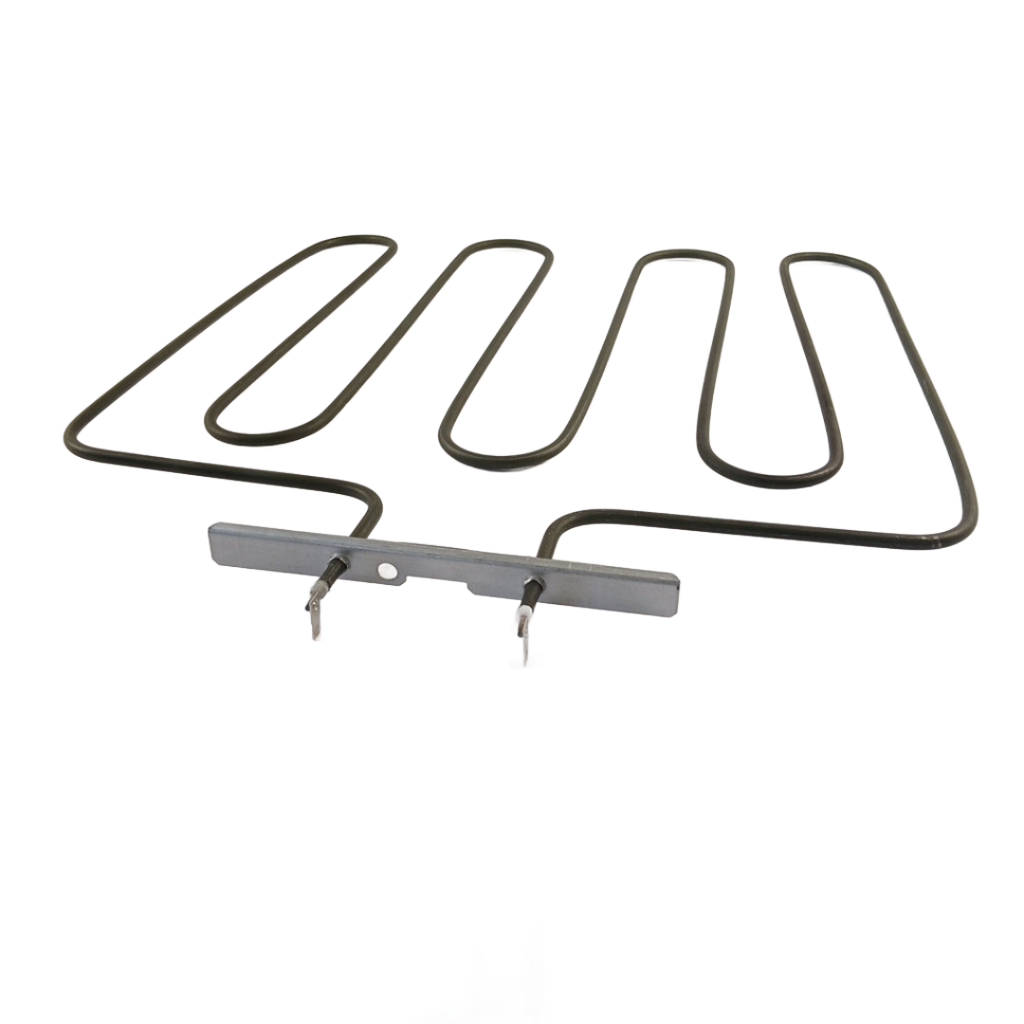

Genuine Whirlpool OEM 2800-watt bake heating element installed at the bottom of the oven cavity to provide heat for baking. The part is also cataloged for select wall ovens and oven/microwave combinations.

Part W11545804Replaces W10282948, W10546517, W11292248, WPW10546517Whirlpool
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part NumberW11545804
ReplacesW10282948, W10546517, W11292248, WPW10546517
ManufacturerWhirlpool
Appliance TypeRange
Part TypeBake element

✅ Cross Reference Information

Current Part NumberW11545804
ReplacesW10282948, W10546517, W11292248, WPW10546517

Common Symptoms

  • Oven does not reach the selected baking temperature
  • Uneven baking or prolonged preheating
  • Bake element does not visibly glow during a bake cycle
  • Visible holes, blisters, cracking, or burn damage on the element

Check Before Replacing

  • With power disconnected and the element cool, visually inspect it for holes, blisters, cracking, or other physical damage.
  • During a bake cycle, observe from a safe distance whether the element heats; do not touch the element or reach into the hot oven.
  • With power disconnected, a qualified person may test the element for electrical continuity using a multimeter; lack of continuity indicates the element itself is open, but continuity does not rule out control, wiring, or supply problems.
  • If the element appears intact, verify that the oven has power and consider professional diagnosis of the wiring, relay, control, or temperature-sensing system.

Pro Tip

A bake element can fail without an immediately obvious break; compare its heating behavior during bake and inspect closely for small blisters or burned-through areas.

Part Details

Part NumberW11545804
Part TypeBake element
ManufacturerWhirlpool
Appliance TypeRange
Primary FunctionSupplies bottom-oven heat for the baking cycle; this is a genuine Whirlpool 2800-watt bake element.

Installation Notes

  • Disconnect electrical power by unplugging the appliance or switching off its circuit breaker before installation.
  • Allow the oven and element to cool completely before handling.
  • Wear protective work gloves when removing or installing the element.
  • Use the appliance’s model-specific service or installation instructions because terminal access and mounting details can vary.
  • After installation, restore power and verify operation without touching the element; stop if wiring or terminals appear damaged.

Verified Compatible Models

WOC54EC0HB03, WOC54EC0HS03, WOC54EC0HW03, WOC54EC7HB02, WOC54EC7HS02, WOC54EC7HS03, WOC54EC7HW02, WOC54EC7HW03, WOC75EC0HS03, WOC75EC0HV03, WOC75EC7HS02, WOC75EC7HV03, WOC97EC0HZ02, WOC97EC0HZ03, WOCA7EC0HN02, AWO6317SFW00, KEBS179BSS00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
