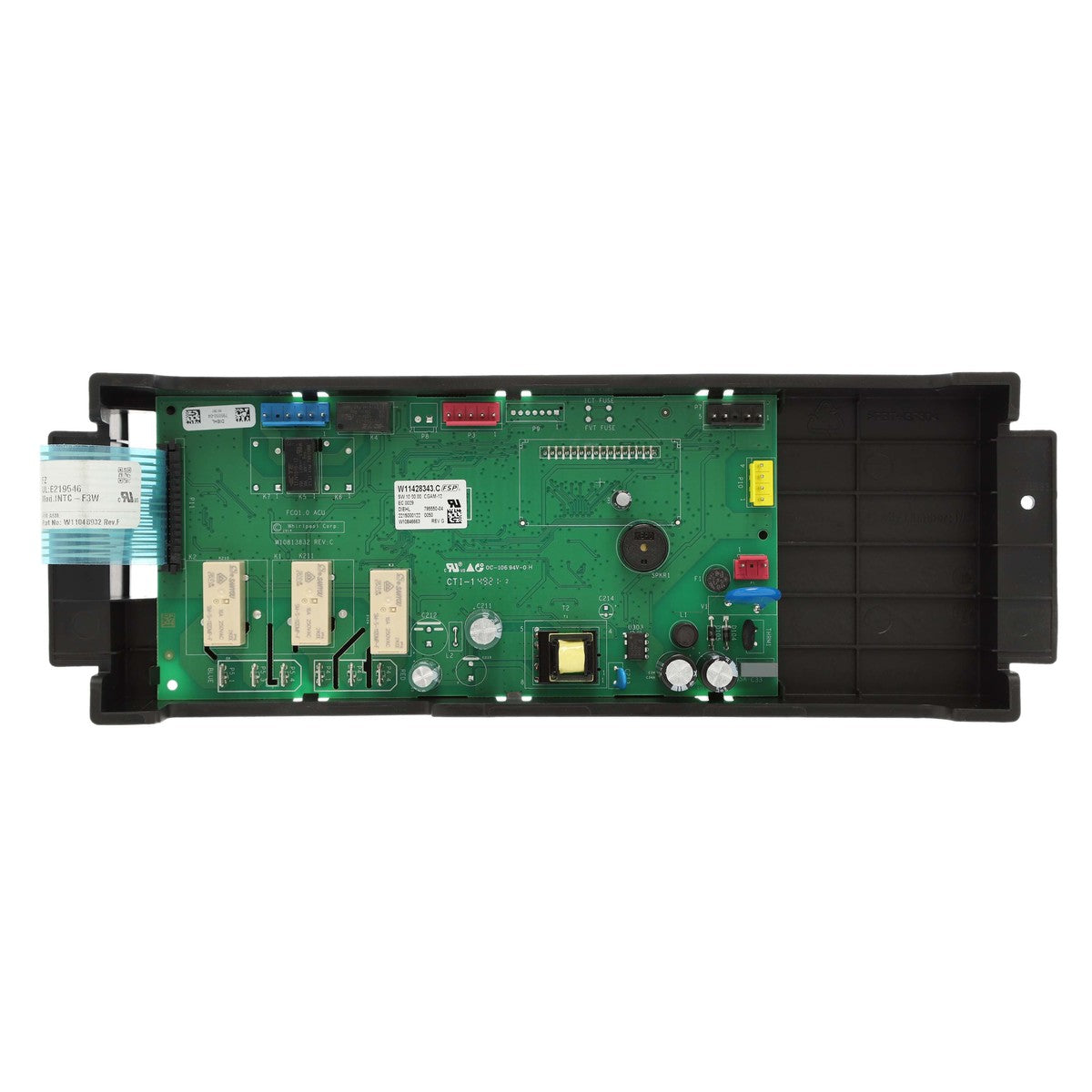

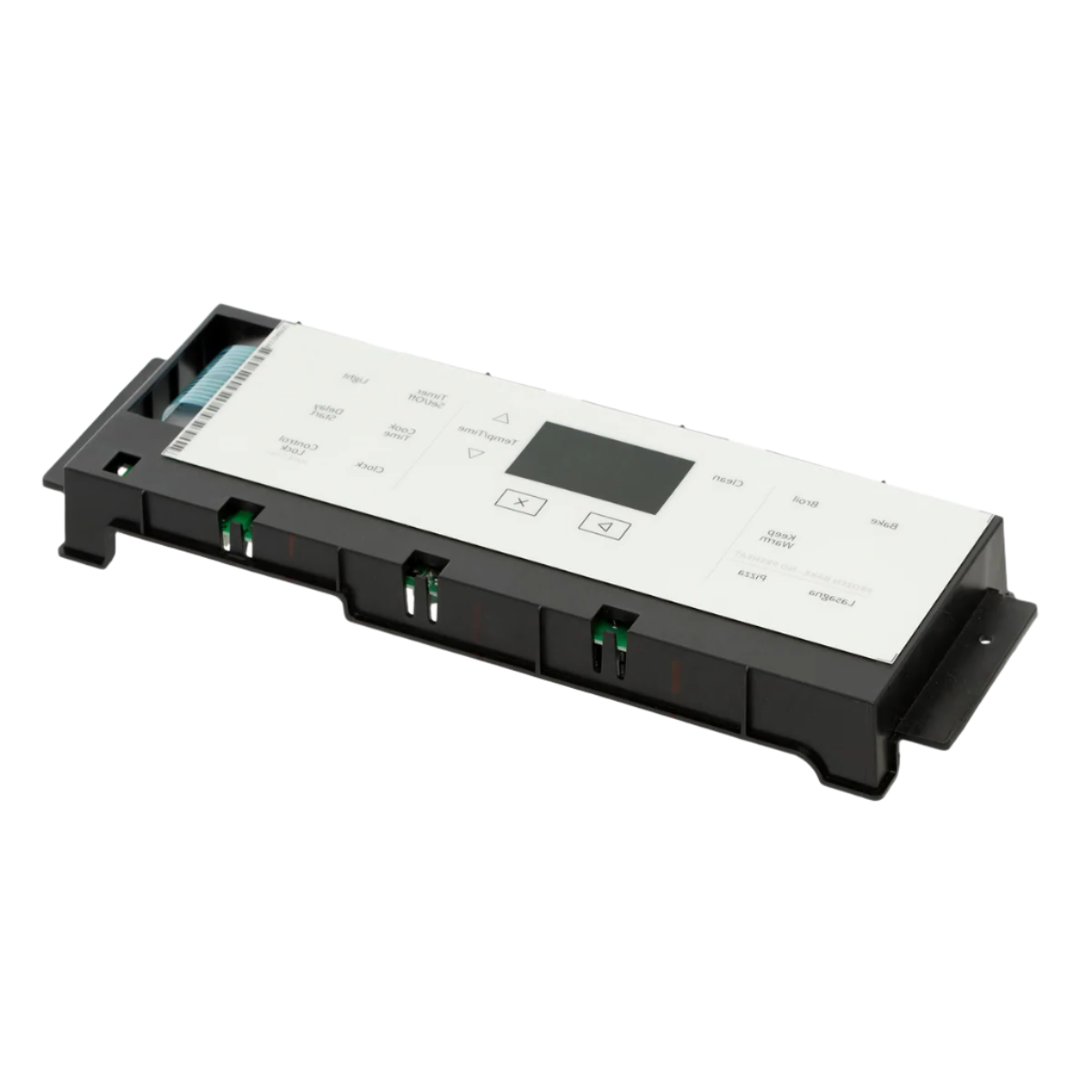

Whirlpool Corporation Range Oven control board / electronic control board (CNTRL-ELEC) W11546660, Replaces W11038137, W11180286, W11317860, W11428343

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Oven will not start or will not program.
• Control/touchpad does not respond.
• Oven has no heat.
• Oven does not reach or maintain sufficient heat.

Check Before Replacing

• Confirm the range has power and that its house circuit breaker has not tripped before attributing a heating issue to the control board.
• Record any displayed fault code and check whether the oven control accepts a normal bake or broil selection; this is non-invasive and can help distinguish a control-response issue.
• Compare the selected oven temperature with actual oven performance using an appropriate oven thermometer; temperature-sensor, heating-element, wiring, and power issues can produce similar symptoms.
• With power disconnected at the plug or house circuit breaker, visually inspect accessible control-board connectors and wiring for loose connections or obvious heat damage; do not diagnose the board from symptoms alone.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power by unplugging the range or switching off the house circuit breaker before servicing.
• Wear work gloves to protect hands during service.
• Verify the replacement part number against the appliance model before installation.
• Handle the electronic board carefully and reconnect wiring only to the corresponding terminals/connectors; if wiring condition or diagnosis is uncertain, use a qualified appliance technician.

Verified Compatible Models

WFE510S0HW0, WFE515S0JB1, WFE515S0JW1, YWFE510S0HS0, YWFE510S0HW0, YWFE515S0JB1, YWFE515S0JW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
