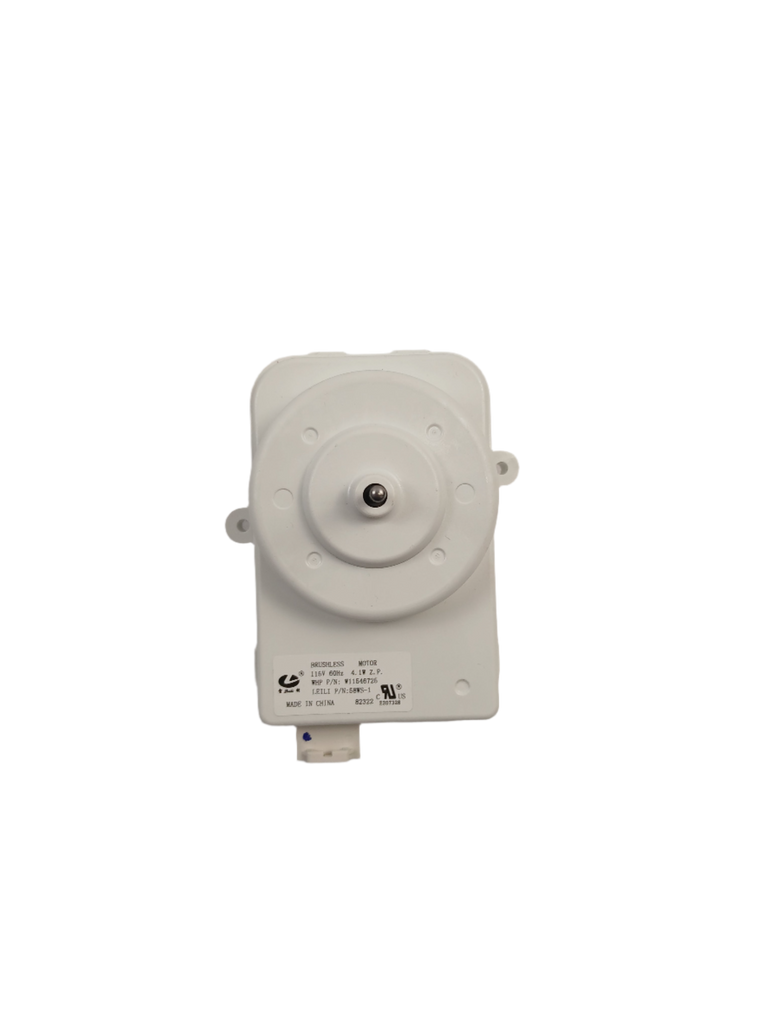

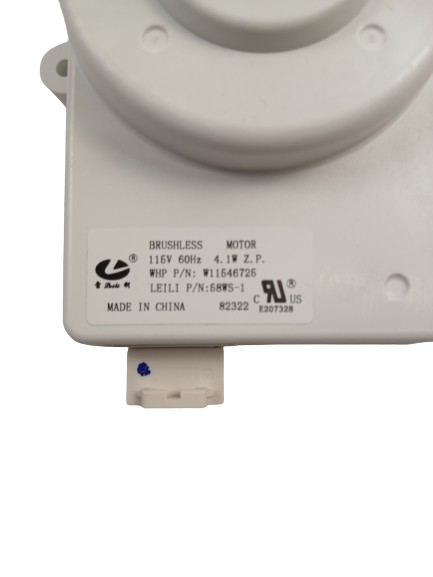

Whirlpool Refrigerator Condenser Fan Motor W11563806, Replaces W10530280, W11177620, W11546725 – Superseded by WP2188874

Genuine Whirlpool OEM condenser fan motor for refrigerators. The motor circulates air across the condenser coil to support heat dissipation and cooling.

Is This the Right Part?

Common Symptoms

• Refrigerator or freezer temperatures rise while the compressor operates
• Condenser fan is not running during an operating or service-diagnostic check
• Abnormal fan noise, rubbing, or intermittent operation near the lower rear machine compartment
• Compressor area becomes unusually warm when condenser airflow is inadequate

Check Before Replacing

• With the refrigerator connected to power and operating normally, observe whether the condenser fan runs when the compressor is operating; avoid touching moving parts.
• Use the appliance's model-specific service-diagnostic procedure, if available, to command or check condenser-fan operation.
• With power disconnected, visually inspect the fan blade and surrounding area for obstruction, debris, or signs of rubbing.
• With power disconnected, inspect the motor wiring harness and connector for looseness, visible damage, or corrosion.
• Do not assume the motor is defective solely from a cooling complaint; verify airflow, wiring, controls, and compressor operation as applicable.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM condenser fan motor
• Designed for refrigerator and freezer condenser-fan applications
• Supports condenser heat dissipation and compressor cooling
• Documented as replacing or superseding several earlier Whirlpool numbers, including W10530280, W11177620, and W11546725
• Used across Whirlpool-family refrigerator brands, subject to exact model verification

Installation Notes

• Disconnect electrical power before servicing and replace all panels before operating the refrigerator.
• Access is typically through the lower rear machine compartment, but the exact access method is model-specific.
• On applicable Whirlpool service designs, the condenser-fan assembly is removed from the machine compartment, the wiring harness is disconnected, and the fan blade is separated from the motor shaft before motor replacement.
• Reconnect the wiring harness securely and ensure the fan blade is fully seated and clear of surrounding components before restoring power.
• Do not puncture refrigerant tubing or use mechanical devices to defrost a refrigerator containing flammable refrigerant; follow the appliance-specific service documentation.

Verified Compatible Models

10672152111, 10672153111, 10672154111, 10672159111, 10673002510, 10673002511, 10673003510, 10673003511, 10673009510, 10673009511, 10679402410, 10679472410, 10679473410, 59673002510, 59673003511

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
