Whirlpool Washer Door Lock Assembly W11565030, Replaces W10804741, W11316250, W11469919

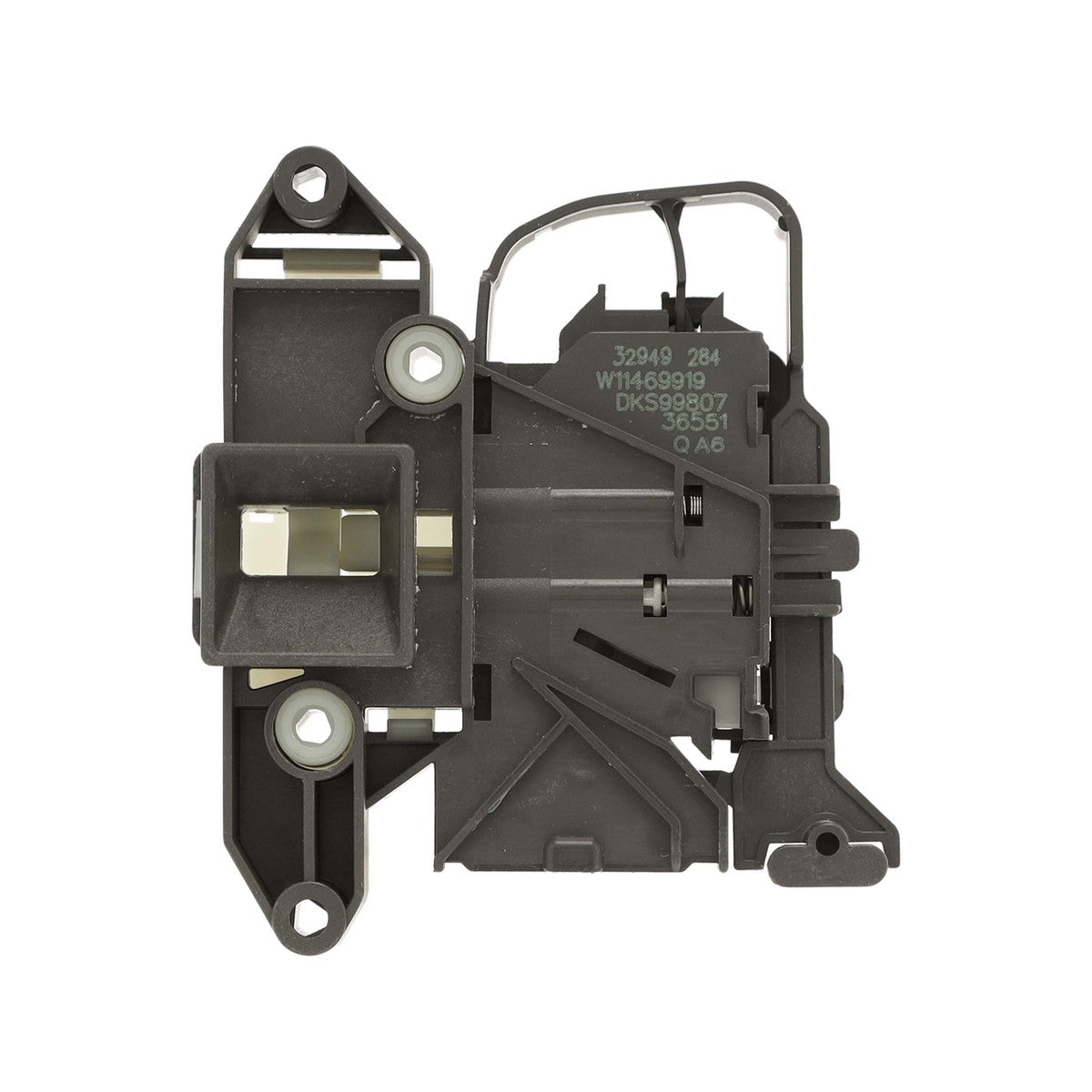

The Whirlpool W11565030 Door Lock and Latch Assembly is designed to secure the front-load washer door during operation and signal the door-lock status to the washer control board. It replaces discontinued Whirlpool part numbers W10804741, W11316250 and W11469919 when fitment is confirmed by the appliance model number.

Is This the Right Part?

Confirm the complete model number before ordering. Similar door-lock assemblies may use different connectors, mounting points, or latch geometry.

Common Symptoms

• Washer door will not lock at the start of a cycle
• Washer will not start or displays a door-lock error code
• Door remains locked after the cycle ends
• Washer stops mid-cycle with a door-lock fault

Check Before Replacing

• Inspect the door strike (W11316914) for cracks or misalignment — a damaged strike can prevent locking without a faulty lock assembly
• Check door alignment and hinge condition
• Inspect the wiring harness and connector at the lock assembly for damage or corrosion
• Verify the control board is not generating a false door-lock fault before replacing the lock

Part Details

Installation Notes

1. Disconnect electrical power before opening the washer cabinet or handling the door-lock wiring.
2. Photograph wiring connections and mounting positions before removal.
3. Compare the new assembly with the original before installation.
4. Inspect the door strike, door alignment, and wiring harness for damage.
5. Restore power and run a test cycle — check for door-lock errors or unusual behaviour.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

7MWFW560CHW2, 7MWFW6622HW2, IFW5900HW1, MHW5630HW0, MHW8630HC4, NFW5800HW0, NFW5800HW3, WFW5605MC0, WFW8620HC3, WFW9620HC0

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
