Whirlpool Washer Door Lock Assembly W11316250, Replaces W10804741, W11469919, W11316250

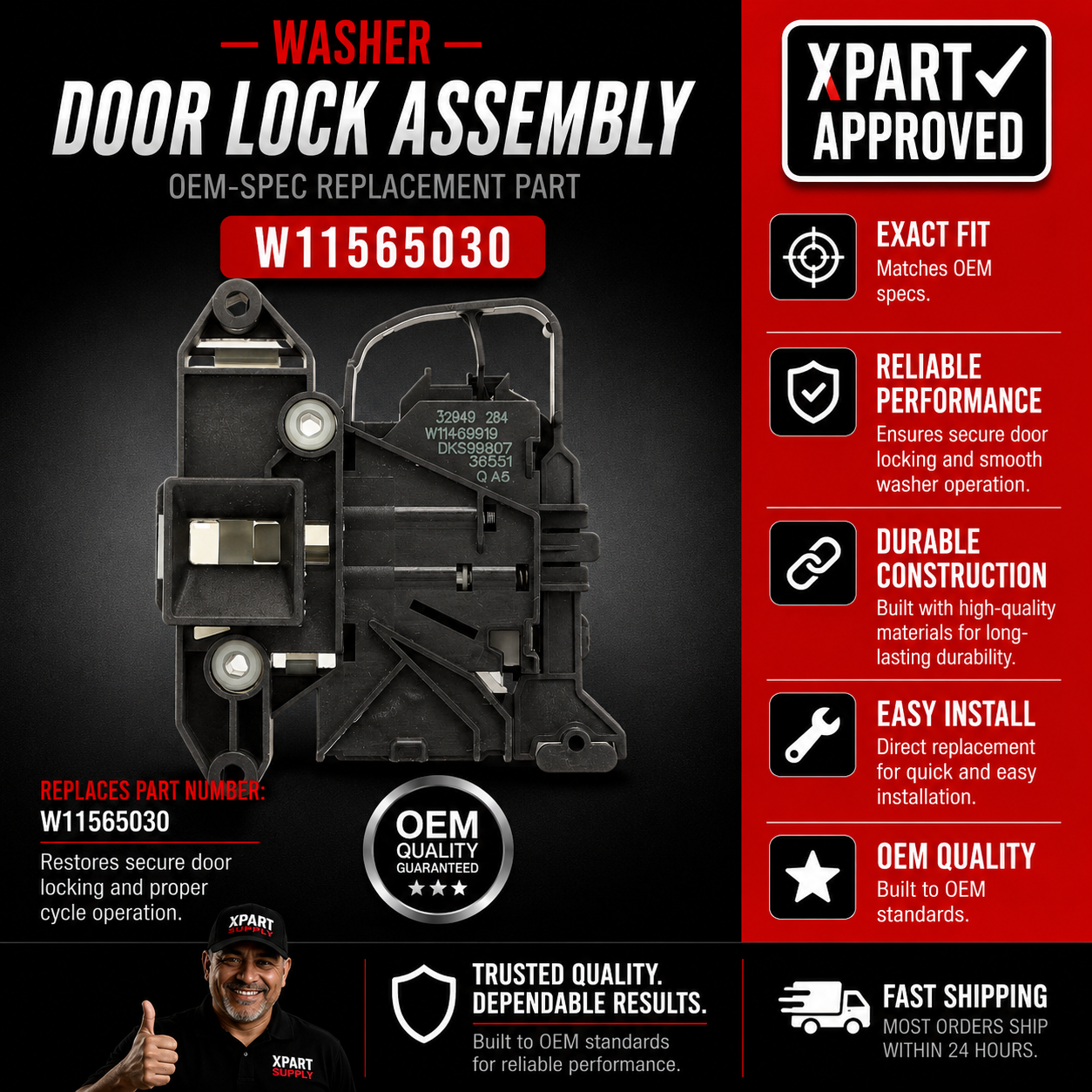

W11565030 is the current genuine Whirlpool front-load washer door-lock and latch assembly. It replaces discontinued Whirlpool part numbers W10804741, W11316250 and W11469919 when fitment is confirmed by the appliance model number.

The assembly secures the washer door during operation and communicates the door-lock condition to the washer control. A defective lock may contribute to a washer that will not start, will not lock, remains locked after a cycle or displays a door-lock error code.

Similar symptoms can also result from a damaged door strike, misaligned door, loose wiring, electronic-control problem or another electrical condition. Confirm the complete washer model before ordering. Door strike W11316914 is a separate component and is not included.

Disconnect electrical power before opening the washer cabinet or handling the door-lock wiring.

Is This the Right Part?

Confirm the complete model number before ordering. Similar door-lock assemblies may use different connectors, switch configurations or mounting points. Inspect the door strike (W11316914) separately — a worn or cracked strike will cause premature failure of the new lock.

Common Symptoms

• Washer will not start — door-lock error displayed (F5 E1, F5 E2 or similar)
• Door will not lock when cycle is started
• Door remains locked after cycle completes — laundry trapped inside
• Washer starts but immediately stops and displays a door-lock fault
• Door lock clicks repeatedly but cycle never begins
• Door-lock indicator light flashes throughout the cycle

Check Before Replacing

• Perform a hard reset — unplug the washer for 5 minutes to clear any control fault
• Inspect the door strike (W11316914) for cracks, wear or deformation — a damaged strike mimics a failed lock
• Check that the door closes fully and the latch engages the strike correctly
• Inspect the wire harness connector at the lock for corrosion, loose pins or damage
• Verify no other error codes are present that may indicate a control board fault

Part Details

Installation Notes

1. Disconnect electrical power before beginning.
2. Photograph wiring, harness routing and connector positions before disconnecting anything.
3. Remove the door boot seal retaining ring to access the lock assembly behind the front panel.
4. Disconnect the wire harness connector and unmount the old lock.
5. Compare the new W11565030 with the original before installing.
6. Reconnect the harness, reseat the boot seal and restore power.
7. Run a short cycle to confirm the lock engages and releases correctly before closing up the machine.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

7MWFW560CHW2, 7MWFW6622HW2, IFW5900HW1, MHW5630HW0, MHW8630HC4, NFW5800HW0, NFW5800HW3, WFW5605MC0, WFW8620HC3, WFW9620HC0 — and additional WFW, MHW, NFW, IFW and 7M-series models.

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.
