Whirlpool Microwave light assembly / lamp W11574182, Replaces W11541696

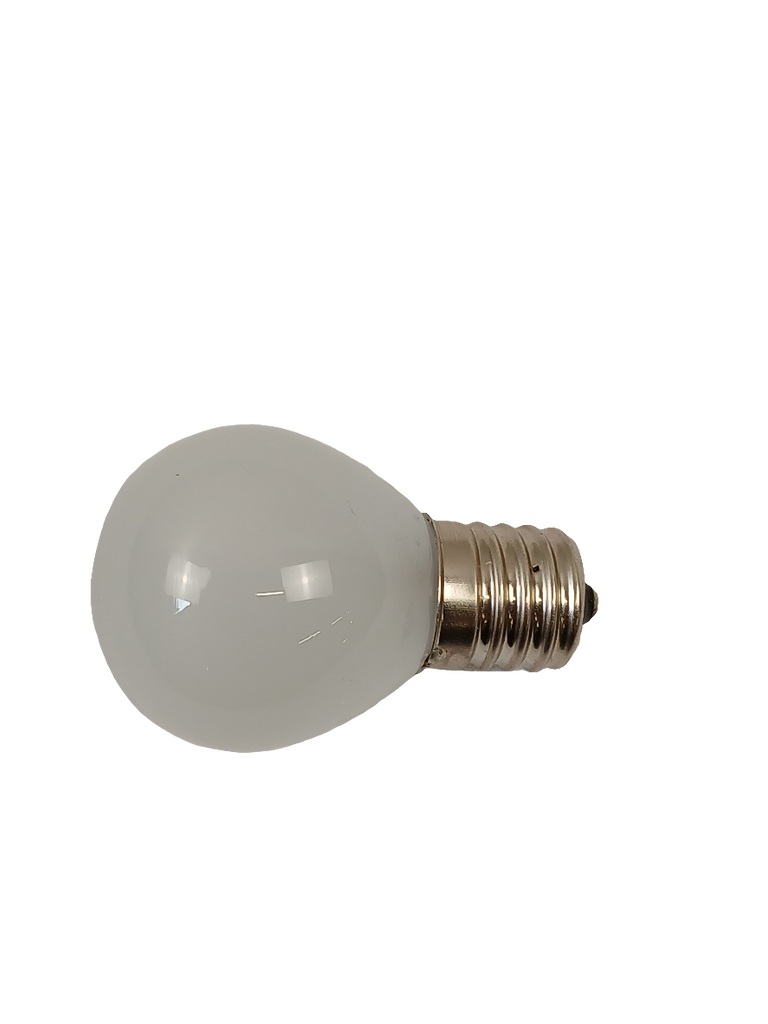

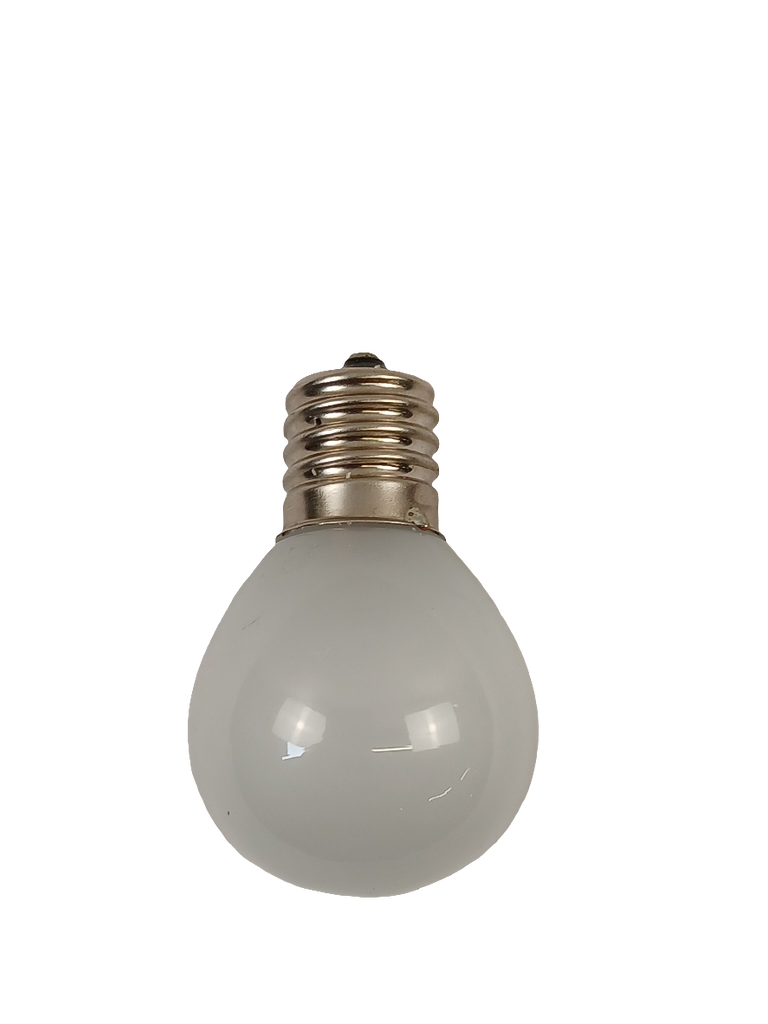

Genuine Whirlpool microwave lamp assembly, identified as an E17/S35X58 lamp rated 125 V/30 W. Used in selected Whirlpool, Maytag, and Amana microwave and microwave/hood-combo models.

Is This the Right Part?

Common Symptoms

• The light remains off when the microwave door is opened or the appliance is operating.
• The cooking surface or cavity is dark while the microwave display and heating functions still work.
• The lamp is visibly burned out or has failed intermittently.

Check Before Replacing

• With the microwave otherwise powered, open the door or start the appliance according to the owner’s manual and observe whether the applicable cavity or surface light illuminates.
• Confirm that the microwave is connected to power and that its circuit breaker or fuse has not tripped before replacing the lamp.
• If the light remains off, inspect the lamp only after disconnecting appliance power and allowing the lamp to cool; do not test energized microwave circuitry.
• Verify the replacement marking against the appliance documentation: the archived specification identifies this part as an E17/S35X58, 125 V, 30 W lamp.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool microwave lamp/light assembly.
• E17/S35X58 lamp specification.
• Rated 125 V/30 W.
• Used in selected Whirlpool, Maytag, and Amana microwave and microwave/hood-combination appliances.
• Documented as replacing Whirlpool part W11541696.

Installation Notes

• Disconnect electrical power before servicing the lamp assembly.
• Allow the lamp to cool before handling it.
• Use the appliance’s model-specific owner’s manual or service documentation for access to the lamp location and cover.
• Install only the specified lamp assembly and rating; do not substitute an LED unless the appliance documentation expressly permits it.
• After installation, restore power and verify the applicable cavity or surface light operation without disassembling energized microwave circuitry.

Verified Compatible Models

MMMS4230PZ00, MMV1175JB01, MMV1175JW01, MMV1175JZ01, UMV1170LB0, UMV1170LS0, UMV1170LW0, UMV1170LW00, WMH31017HB08, WMH32519HT07, WMH32519HZ08, WMH32519HZ10, WMMS3130RB00, YAMV2307PFS08, YAMV2307PFW09

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
