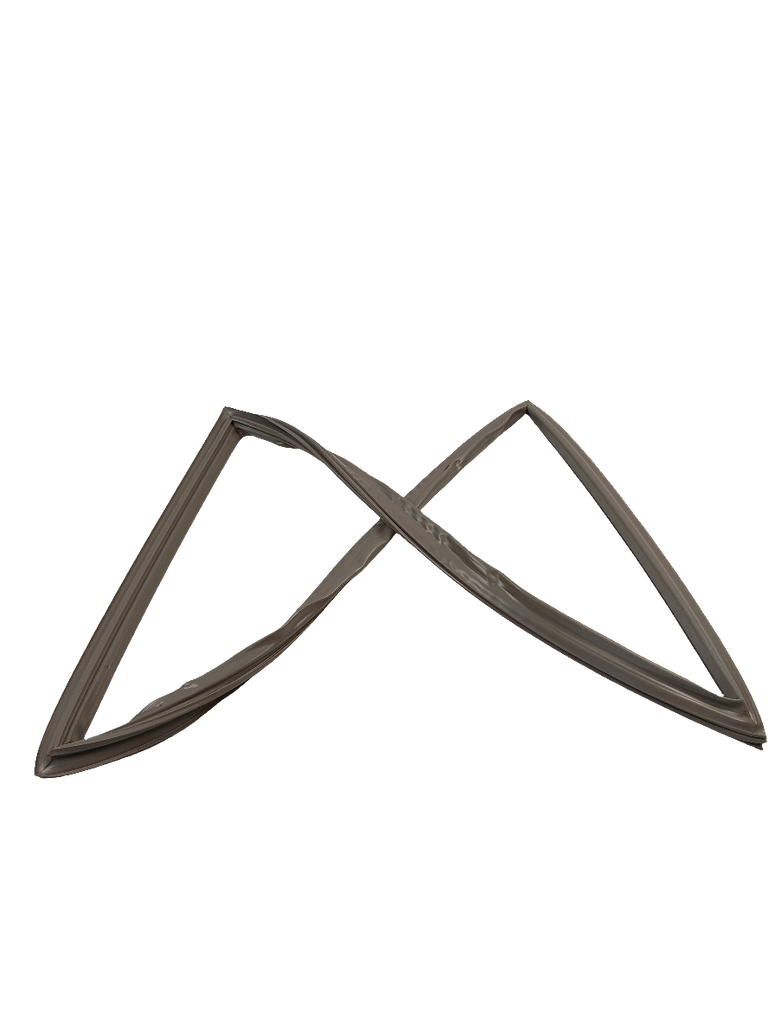

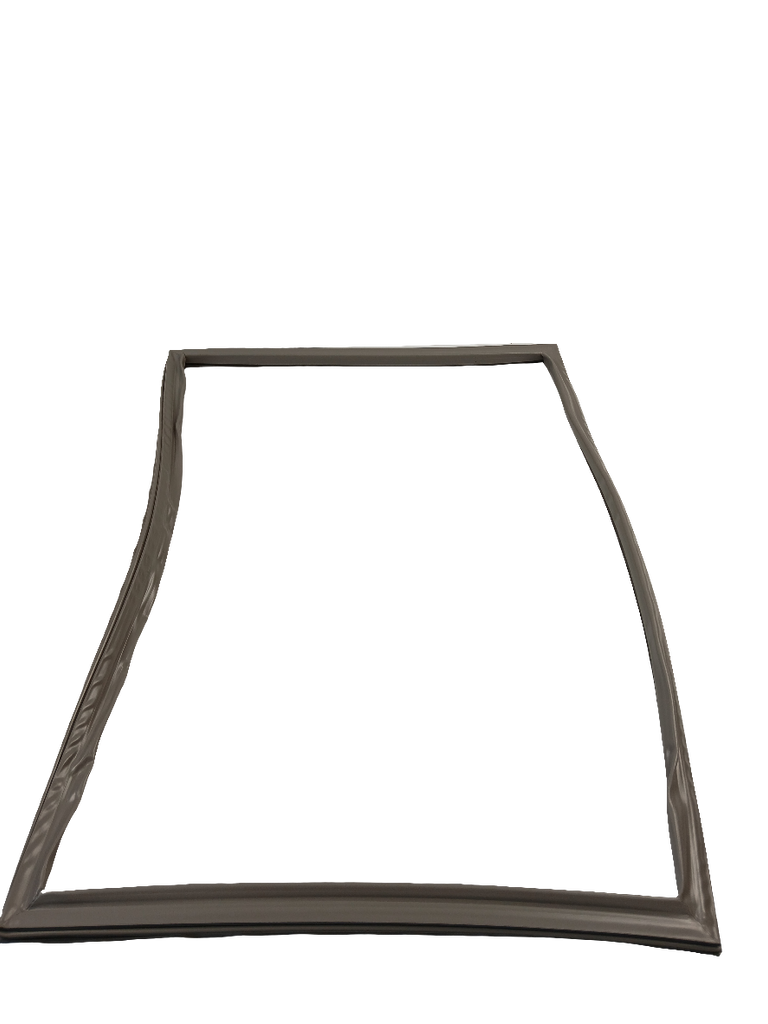

Whirlpool Refrigerator Freezer door gasket, gray W11574983, Replaces W11030682

Genuine Whirlpool OEM gray freezer-compartment door gasket/seal for refrigerators. Whirlpool documentation describes the part as a freezer door gasket; retailer technical descriptions identify it as a gasket for 18- and 19-cubic-foot top-mount refrigerator matrices.

Is This the Right Part?

Common Symptoms

• Visible gaps, cracks, tears, kinks, or loss of gasket compression
• Frost or moisture buildup around the freezer door
• Freezer door not closing or opening normally
• Refrigerator or freezer running more than expected
• Freezer temperature not being maintained because cold air is escaping

Check Before Replacing

• Visually inspect the entire gasket for cracks, tears, deformation, kinks, or sections pulling away from the door.
• Close the freezer door and check for visible gaps or areas where the gasket is not contacting the cabinet evenly.
• Check whether the door closes fully without the gasket folding, twisting, or obstructing the door.
• Confirm that the gasket is seated evenly around the door and that the issue is not caused by an overloaded shelf or an obstruction.
• Do not conclude that the gasket is defective solely from a cooling complaint; verify the seal condition and consider other refrigerator causes.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM freezer-compartment door gasket
• Gray color
• Designed for refrigerator freezer doors
• Creates an airtight seal to help maintain temperature and efficiency
• Replaces prior Whirlpool part number W11030682

Installation Notes

• Verify the gasket matches the appliance model before installation.
• Inspect the replacement gasket for shipping-related kinks or deformation and allow it to return to shape before judging the seal.
• Install the gasket evenly around the freezer door so it is not twisted, folded, or pulled away from the door.
• After installation, close the door and inspect the perimeter for continuous contact and visible gaps.
• Follow the appliance service documentation for any model-specific door or gasket procedure; disconnect power before servicing when required by that documentation.

Verified Compatible Models

ART308FFDB06, ART308FFDM10, ART308FFDM11, MRT118FFFE05, MRT118FFFM01, MRT118FFFM05, WRT138FZDB03, WRT148FZDW04, WRT348FMEZ03, WRT519SZDB02, WRT519SZDD05, WRT519SZDG04, WRT519SZDG07, WRT519SZDG09, WRT519SZDW02

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
