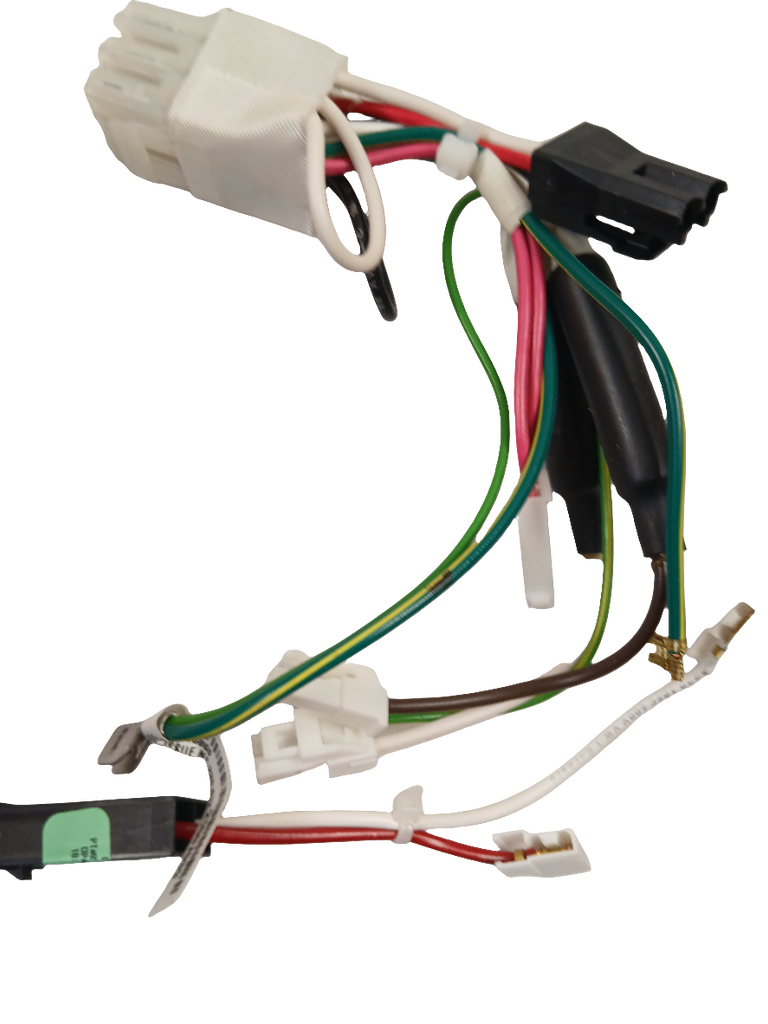

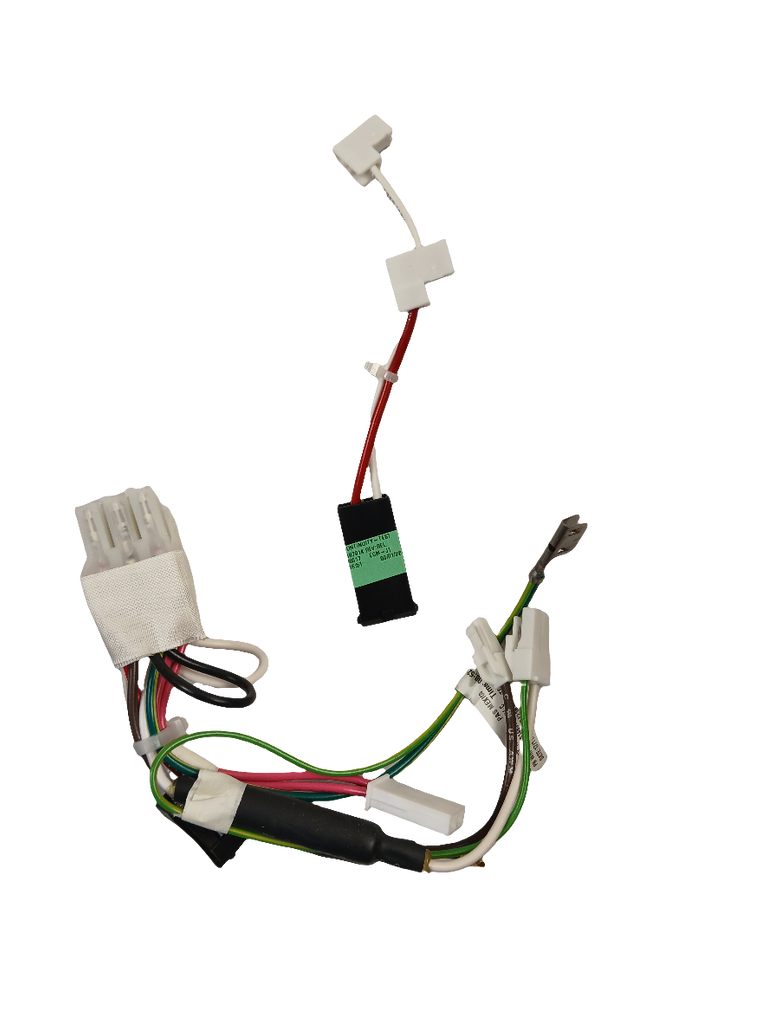

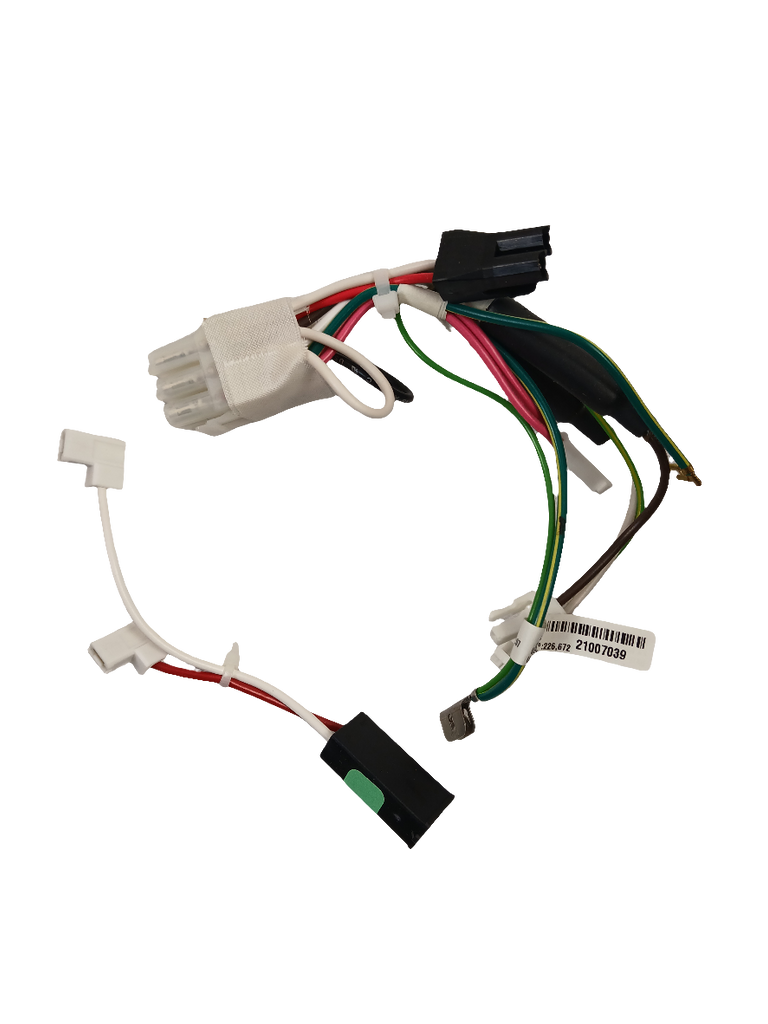

Whirlpool Refrigerator Evaporator fan motor wire harness W11581973, Replaces W11475516

Whirlpool OEM evaporator fan motor wire harness, also described by Whirlpool as a harness for the evaporator fan that includes a thermal fuse. It connects the evaporator fan motor to the refrigerator electrical circuit.

Is This the Right Part?

Common Symptoms

• Evaporator fan fails to start or operates intermittently.
• Reduced air circulation can contribute to inadequate cooling in the refrigerator or freezer compartments.
• Unusual fan-area noise or vibration may occur when wiring or connector damage causes intermittent fan operation.

Check Before Replacing

• Unplug the refrigerator before inspecting or testing the harness.
• Visually inspect the harness, insulation, terminals, and connectors for cracks, loose pins, corrosion, melting, or incomplete engagement.
• With power disconnected, check continuity through the harness and its thermal-fuse circuit using the refrigerator’s model-specific wiring diagram or technical sheet.
• If the harness has continuity, verify that the evaporator fan motor and its supply circuit are tested separately; a no-fan condition is not proof that this harness is defective.
• Do not bypass, jumper, or replace the integrated thermal fuse with an unapproved device.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM evaporator fan motor wire harness.
• Designed for refrigerator evaporator-fan wiring.
• Includes an integrated thermal fuse.
• Connects the evaporator fan motor with the refrigerator electrical circuits.

Installation Notes

• Disconnect electrical power before installation and protect or remove perishable food as needed.
• Use the refrigerator’s model-specific service information to identify connector locations and wire routing before disconnecting the old harness.
• Reproduce the original connector engagement and wire routing; do not force connectors or alter the harness.
• Inspect that all connectors are fully seated and that wiring is clear of moving fan components before restoring power.
• Wear suitable work gloves when accessing the evaporator-fan area and follow the appliance service manual for panel removal and reassembly.

Verified Compatible Models

WRS321SDHB08, WRS321SDHV08, WRS321SDHW08, WRS321SDHZ08, WRS325SDHB08, WRS325SDHV08, WRS325SDHW08, WRS325SDHZ08

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
