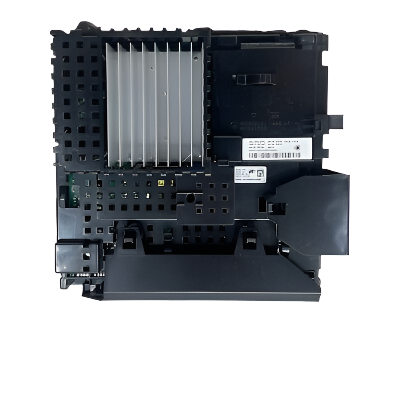

W11583890 – When Your Washer Won't Start, Shows Error Codes, or Dies Mid-Cycle, This Board Is Why
The main control board (CCU – Central Control Unit) is the brain of your washing machine. When it fails due to a power surge, moisture intrusion, or component wear, your washer may go completely dead, throw persistent error codes, start and stop mid-cycle, or refuse to respond to any input. W11583890 is the genuine OEM Whirlpool replacement CCU — a direct-fit board that restores full washer operation with no modifications required. Fits Whirlpool, Maytag, Kenmore, and Amana top-load washers. Directly replaces W11195091, W11284404, W11305286, AP7022400, PS16621296.
Is This the Part You Need?
This is the main electronic control board (CCU) — not the user interface board or display panel. The CCU sits behind the control panel or in the cabinet and manages all washer functions: water fill, motor, drain pump, door lock, and cycle sequencing. If your washer has power but won't respond, or if you've already ruled out the lid switch, door latch, and motor, the CCU is the next logical replacement. Confirm your model number on the label inside the door or lid before ordering.
Symptoms of a Failed Main Control Board
- Washer won't start or turn on at all
- Washer starts but stops mid-cycle with no warning
- Persistent or random error codes that won't clear
- Controls don't respond — buttons or dial have no effect
- Washer won't advance through wash, rinse, or spin cycles
- Washer fills with water but agitator or drum won't move
- Washer drains but won't spin
- Visible burn marks, scorch smell, or bulging capacitors on the board
Part Details
- OEM Part Number: W11583890
- Replaces: W11195091, W11284404, W11305286, AP7022400, PS16621296
- Component: Main Control Board / CCU (Central Control Unit)
- Brands Covered: Whirlpool, Maytag, Kenmore, Amana
- Condition: New, genuine OEM
- Fit Type: Direct replacement — no modifications required
- Ships from: XPart Supply — Canada
Installation Notes
Skill Level: Moderate — 30–45 minutes. Always disconnect power at the breaker or unplug the washer before beginning. Before replacing the board, perform a hard reset first: unplug the washer for 10 minutes, then plug it back in — this clears temporary glitches and stored error codes. If the fault persists, inspect the existing board for burnt components, scorch marks, bulging capacitors, or corrosion before ordering. When handling the new board, avoid touching circuit components directly — static discharge can damage sensitive electronics; ground yourself before installation. Reconnect all harness connectors firmly and in the correct orientation. If your washer also has a separate user interface board (display/button panel), check that board too — sometimes the UI board fails while the CCU is fine.
Compatible Models
WTW5000DW3, WTW5000DW4, WTW5005KW0, WTW5005KW1, WTW5010LW0, WTW5010LW1, WTW5015LW0, WTW5015LW1, WTW5057LW0, WTW5057LW1, MVWC465HW2, MVWC465HW3, MVWC565HW0, MVWC565HW1, MVW5035MW0, MVW5035MW1, NTW4516FW3, NTW4516FW4, NTW4519JW0, NTW4519JW1
Don't see your model? Contact us and we'll confirm compatibility before you order.
💡 Pro Tip — Check the UI Board Before You Order:
The main control board (CCU) and the user interface board (UIB — the panel with buttons or a dial) are two separate components. A washer that won't respond to input or shows a blank display could have a failed UIB rather than a failed CCU. If you can see power reaching the machine but the display is dead or buttons do nothing, test or replace the UI board first — it's typically less expensive. If the washer has power, the display works, but cycles won't run or complete, the CCU is the more likely culprit. Replacing both in the same service call eliminates the guesswork and prevents a second labour trip.
The main control board (CCU) and the user interface board (UIB — the panel with buttons or a dial) are two separate components. A washer that won't respond to input or shows a blank display could have a failed UIB rather than a failed CCU. If you can see power reaching the machine but the display is dead or buttons do nothing, test or replace the UI board first — it's typically less expensive. If the washer has power, the display works, but cycles won't run or complete, the CCU is the more likely culprit. Replacing both in the same service call eliminates the guesswork and prevents a second labour trip.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
