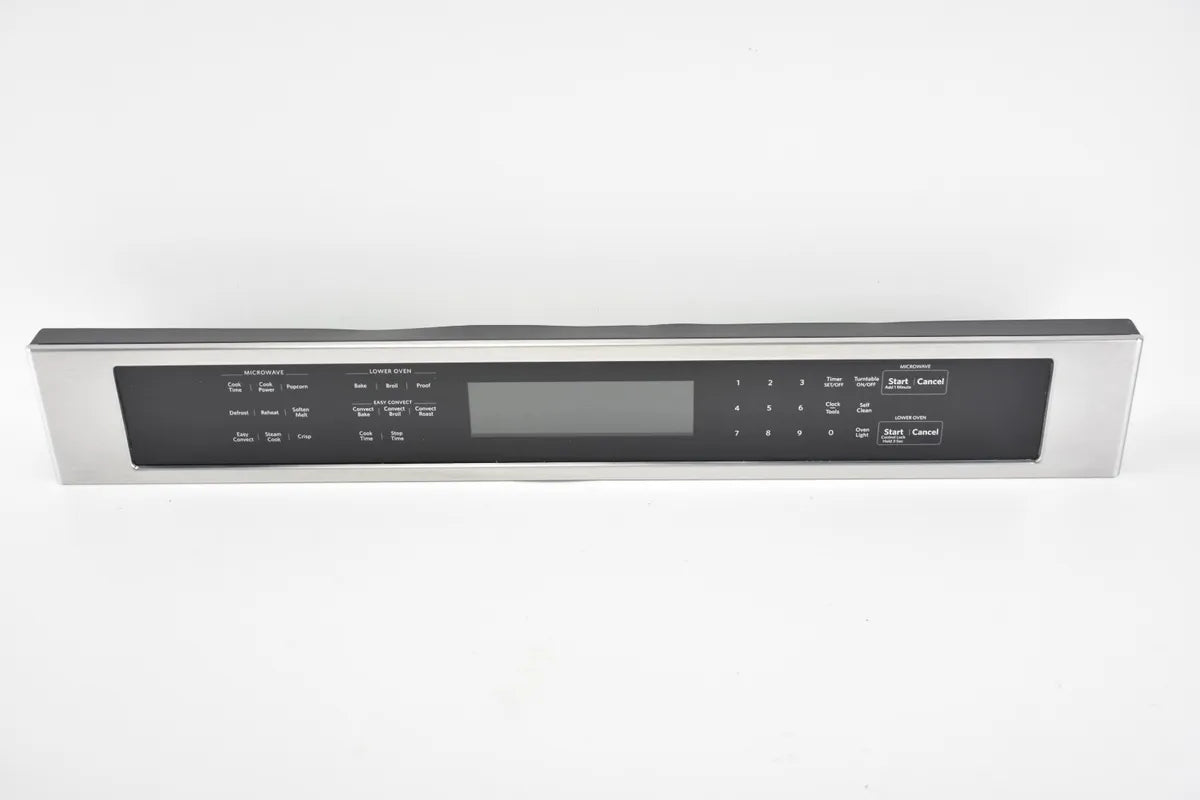

Whirlpool Corporation Oven/Microwave Combo Assembly, Control Panel (includes overlay) (stainless) W11600634, Replaces W11304123, W11598183

Stainless control-panel assembly with overlay for KitchenAid built-in oven/microwave combination units.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• The user interface remains unresponsive after power is cycled.
• The control-panel display or touch functions may not operate normally.
• The panel may produce no sound response when controls are pressed.
• A permanently pressed or failed touch key may cause abnormal panel behavior.

Check Before Replacing

• Confirm the oven/microwave has power and that the household circuit breaker has not tripped.
• Cycle power to the appliance: disconnect power, wait at least 10 seconds, and reconnect it.
• Check that the touch surface is clean, dry, and free of objects pressing on the controls.
• If the panel remains unresponsive after the reset, use the model-specific service procedure to distinguish the control-panel assembly from wiring, power, or other control components.
• Do not replace the panel based on symptoms alone; verify the exact appliance model and inspect accessible connectors only with power disconnected.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM part W11600634.
• Control-panel assembly with overlay.
• Stainless finish.
• Designed for KitchenAid oven/microwave combo applications.
• Listed as item 4985152 by KitchenAid Replacement Parts.

Installation Notes

• Disconnect electrical power before accessing or replacing the control-panel assembly.
• Follow the appliance model's service or installation documentation; the exact access and connector procedure can vary by model.
• After replacement, reassemble all parts and panels before restoring power.
• Reconnect power and follow any on-screen model-selection or setup prompts required by the appliance.
• Verify normal touch-panel and appliance operation after installation.

Verified Compatible Models

KOCE500EBS20, KOCE500EBS22, KOCE500EBS23, KOCE500ESS20, KOCE500ESS22, KOCE500ESS23, KOCE500EWH20, KOCE500EWH22, KOCE500EWH23

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
