Refrigerator Electrical Faults or Intermittent Cooling? Wire Harness W11609466 – Fix Connection Failures Fast

If your Whirlpool-platform refrigerator has intermittent cooling, unexplained error codes, or components that work inconsistently, a damaged or failed wire harness is a frequently overlooked root cause. In most Whirlpool, KitchenAid, and Maytag refrigerators, this is caused by a failed or chafed wire harness. When it fails, electrical signals between the control board and key components — compressor, fans, sensors, and defrost heater — become unreliable or drop out entirely, causing symptoms that mimic multiple part failures. ⚡ Common failure point in Whirlpool-platform refrigerators, especially in units with high vibration or age-related insulation wear. Part W11609466 is the genuine OEM replacement that restores clean, reliable electrical connections throughout the refrigerator system.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Refrigerator powers on — lights and display are functional
• ✔ Symptoms are intermittent — cooling, fans, or sensors work sometimes but not consistently
• ✔ Control board and individual components have been tested and appear functional
• ✔ Visual inspection shows chafed, pinched, or burned wiring near the harness routing path
• ✔ ONLY problem is unreliable electrical signals — not a single failed component

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Intermittent cooling — fridge cools sometimes but not consistently
• Random or recurring error codes that clear and return
• Fans or compressor cutting out unexpectedly during normal operation
• Temperature sensors reading incorrectly or erratically
• Defrost system not triggering on schedule despite board being functional
• Burning smell or visible wire damage near harness routing

✔ If these symptoms match, the wire harness is the most likely failed component in the system.

✔ In most cases, replacing this wire harness restores stable electrical operation immediately.

📦 Part Details

• Part Number: W11609466

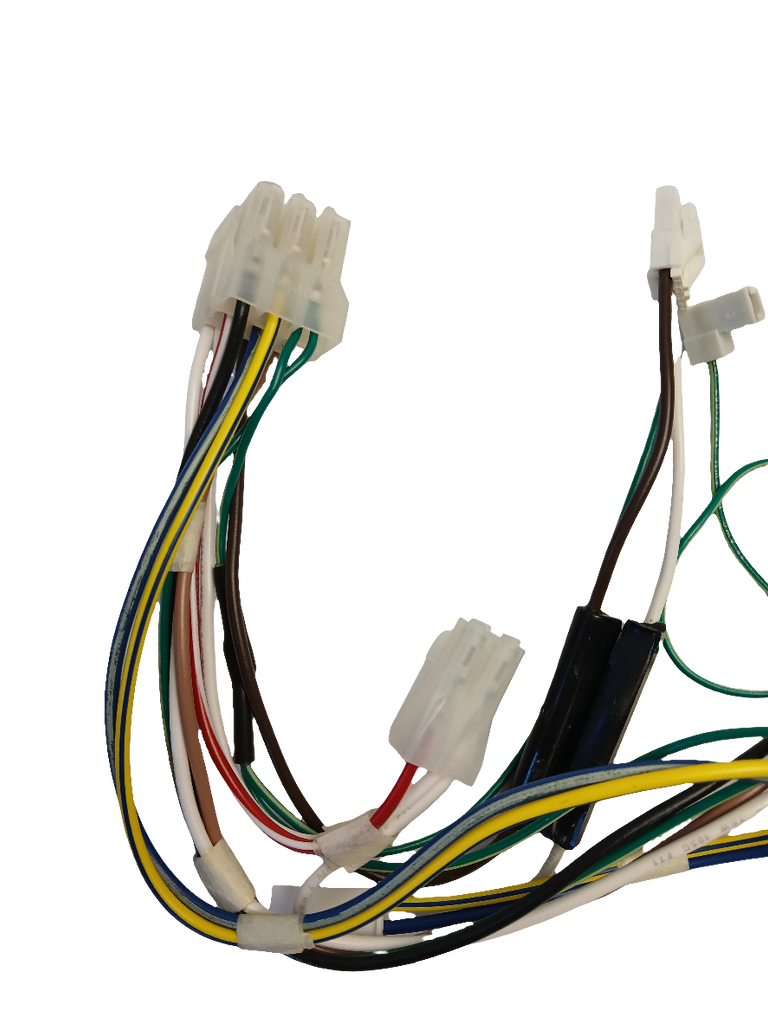

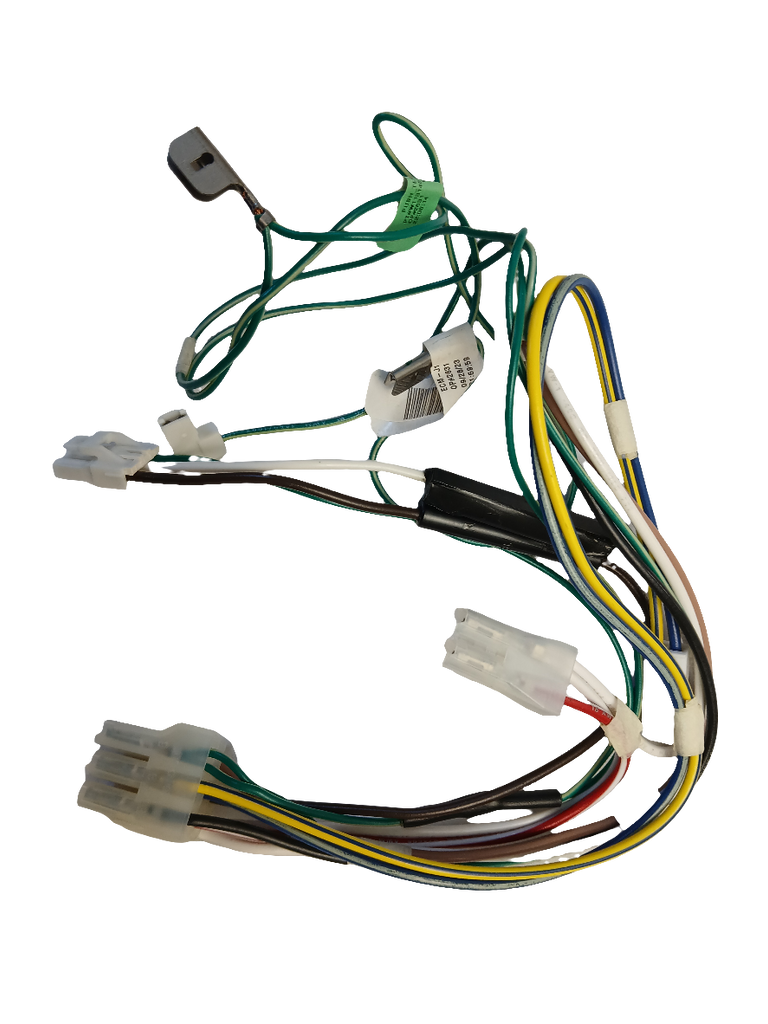

• Type: Refrigerator Wire Harness Assembly — main electrical interconnect between control board and refrigerator components
• Replaces: W11314510 — no modification required
• Brands: Whirlpool, KitchenAid, Maytag

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Remove the rear access panel to expose the harness routing path from the control board to the refrigerator compartment components. Photograph all connector positions before disconnecting. Unplug each connector from the old harness, route the new W11609466 along the same path, and reconnect all plugs in their original positions. Secure any harness clips or tie points, reinstall the panel, restore power, and run a full cooling cycle to confirm stable operation.

✓ Compatible Models

Confirmed compatible with KRFF300EBS01, KRFF300ESS02, KRFF300ESS03, KRFF300ESS04, KRFF300EWH03, KRFF300EWH04, MFB2055FRZ02, MFF2055FRZ03, MRT311FFFE01, MRT311FFFZ01 plus additional Whirlpool-platform models. Contact us to verify your model number before ordering.
